223 series
223 series Spherical roller bearing with tapered bore and relubrication features. Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication…
Product Description
Product Details

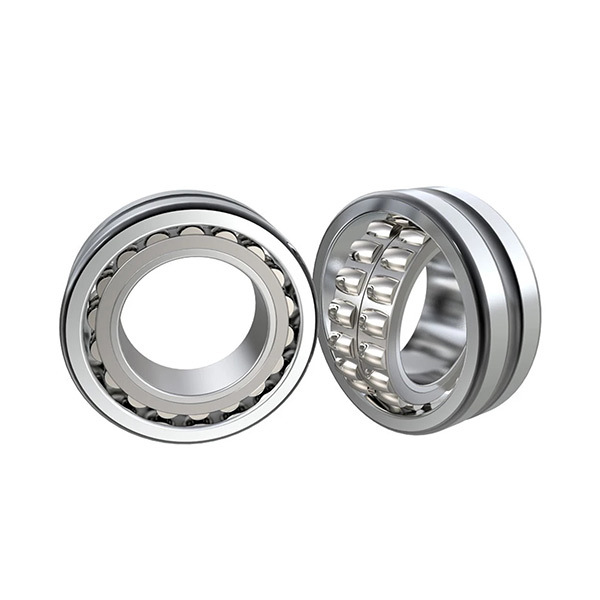

223 series Spherical roller bearing with tapered bore and relubrication features
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance

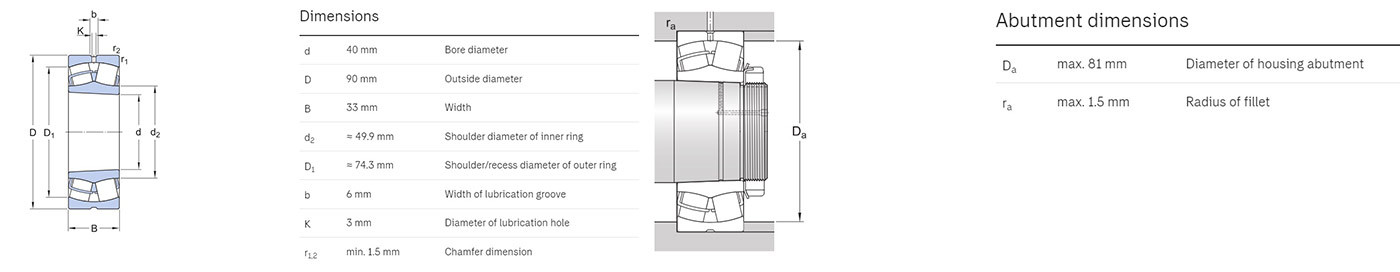

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | B mm |
| 22308 E | 40 | 90 | 33 |
| 22308 EK | 40 | 90 | 33 |
| 22309 E | 45 | 100 | 36 |
| 22309 EK | 45 | 100 | 36 |
| 22310 E | 50 | 110 | 40 |
| 22310 EK | 50 | 110 | 40 |
| 22311 E | 55 | 120 | 43 |
| 22311 EK | 55 | 120 | 43 |
| 22312 E | 60 | 130 | 46 |
| 22312 EK | 60 | 130 | 46 |
| 22313 E | 65 | 140 | 48 |
| 22313 EK | 65 | 140 | 48 |
| 22314 E | 70 | 150 | 51 |
| 22314 EK | 70 | 150 | 51 |
| 22315 E | 75 | 160 | 55 |
| 22315 EK | 75 | 160 | 55 |
| 22316 E | 80 | 170 | 58 |
| 22316 EK | 80 | 170 | 58 |
| 22317 E | 85 | 180 | 60 |
| 22317 EK | 85 | 180 | 60 |
| 22318 E | 90 | 190 | 64 |
| 22318 EK | 90 | 190 | 64 |
| 22319 E | 95 | 200 | 67 |
| 22319 EK | 95 | 200 | 67 |
| 22320 E | 100 | 215 | 73 |
| 22320 EK | 100 | 215 | 73 |
| 22322 E | 110 | 240 | 80 |
| 22322 EK | 110 | 240 | 80 |
| 22324 CC/W33 | 120 | 260 | 86 |
| 22324 CCK/W33 | 120 | 260 | 86 |
| 22324/C3W33 | 120 | 260 | 86 |
| 22324/C4W33 | 120 | 260 | 86 |
| 22326 CC/C4W33 | 130 | 280 | 93 |
| 22326 CC/W33 | 130 | 280 | 93 |
| 22328 CC/C4W33 | 140 | 300 | 102 |
| 22328 CC/W33 | 140 | 300 | 102 |
| 22330 CC/C4W33 | 150 | 320 | 108 |
| 22332 CC/C4W33 | 160 | 340 | 114 |
| 22332/C3W33 | 160 | 340 | 114 |
| 22332/C4W33 | 160 | 340 | 114 |
| 22334 CCK/W33 | 170 | 360 | 120 |
| 22336 CC/C4W33 | 180 | 380 | 126 |
| 22336 CC/W33 | 180 | 380 | 126 |
| 22338 CCK/W33 | 190 | 400 | 132 |
| 22340 CC/C4W33 | 200 | 420 | 138 |
| 22340 CCK/W33 | 200 | 420 | 138 |
