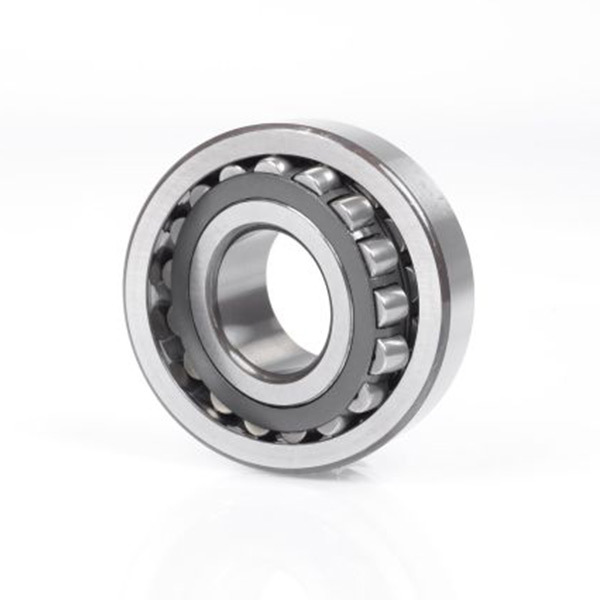

230 series
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…
Product Description
Product Details
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
Parameter table
| Bearing Number | d mm | D mm | B mm |
| 23022 CCK/W33 | 110 | 170 | 45 |
| 23024 CCK/W33 | 120 | 180 | 46 |
| 23026 CCK/W33 | 130 | 200 | 52 |
| 23026-2CS5K/VT143 | 130 | 200 | 52 |
| 23028 CCK/W33 | 140 | 210 | 53 |
| 23028-2CS5K/VT143 | 140 | 210 | 53 |
| 22230 CCK/W33 | 150 | 270 | 73 |
| 22230-2CS5K/VT143 | 150 | 270 | 73 |
| 23030 CCK/W33 | 150 | 225 | 56 |
| 23030-2CS5K/VT143 | 150 | 225 | 56 |
| 23230 CCK/W33 | 150 | 270 | 96 |
| 23230-2CS5KVT143 | 150 | 270 | 96 |
| 23032 CCK/W33 | 160 | 240 | 60 |
| 23032-2CS5KVT143 | 160 | 240 | 60 |
| 23034 CCK/W33 | 170 | 260 | 67 |
| 23034-2CS5K/VT143 | 170 | 260 | 67 |
| 23036 CCK/W33 | 180 | 280 | 74 |
| 23036-2CS5KNT143 | 180 | 280 | 74 |
| 23038 CCK/W33 | 190 | 290 | 75 |
| 23038-2CS5K/VT143 | 190 | 290 | 75 |
| 23040 CCK/W33 | 200 | 310 | 82 |
| 23040-2CS5K/VT143 | 200 | 310 | 82 |
| 23044 CCK/W33 | 220 | 340 | 90 |
| 23044-2CS5K/VT143 | 220 | 340 | 90 |
| 23048 CCK/W33 | 240 | 360 | 92 |
| 23048-2CS5K/VT143 | 240 | 360 | 92 |
| 23052 CCK/W33 | 260 | 400 | 104 |
| 23052-2CS5K/VT143 | 260 | 400 | 104 |
| 23056 CACK/W33 | 280 | 420 | 106 |
| 23056 CCK/W33 | 280 | 420 | 106 |
| 23060 CACK/W33 | 300 | 460 | 118 |
| 23060 CCK/W33 | 300 | 460 | 118 |
| 23060-2CS5KVT143 | 300 | 460 | 118 |
| 23064 CCK/W33 | 320 | 480 | 121 |
| 23068 CACK/W33 | 340 | 520 | 133 |
| 23068 CCK/W33 | 340 | 520 | 133 |
| 23072 CACK/W33 | 360 | 540 | 134 |
| 23072 CCK/W33 | 360 | 540 | 134 |
| 23076 CACK/W33 | 380 | 560 | 135 |
| 23076 CCK/W33 | 380 | 560 | 135 |
| 23076-2CS5KNT143 | 380 | 560 | 135 |
| 23080 CACK/W33 | 400 | 600 | 148 |
| 23080 CCK/W33 | 400 | 600 | 148 |
| 23080-2CS5K/VT143 | 400 | 600 | 148 |
| 23084 CAK/W33 | 420 | 620 | 150 |
| 23088 CAK/W33 | 440 | 650 | 157 |
| 23092 CAK/W33 | 460 | 680 | 163 |
| 23096 CAK/W33 | 480 | 700 | 165 |
| 230/500 CAK/W33 | 500 | 720 | 167 |
| 230/530 CAK/W33 | 530 | 780 | 185 |
| 230/560 CAK/W33 | 560 | 820 | 195 |
| 230/600 CAK/W33 | 600 | 870 | 200 |
| 230/630 CAK/W33 | 630 | 920 | 212 |
| 230/670 CAK/W33 | 670 | 980 | 230 |
| 230/710 CAK/W33 | 710 | 1030 | 236 |
| 230/750 CAK/W33 | 750 | 1090 | 250 |
| 230/800 CAK/W33 | 800 | 1150 | 258 |
| 230/850 CAK/W33 | 850 | 1220 | 272 |
| 230/900 CAK/W33 | 900 | 1280 | 280 |
| 230/950 CAK/W33 | 950 | 1360 | 300 |
| 230/1250 CAKF/W33 | 1250 | 1750 | 375 |
