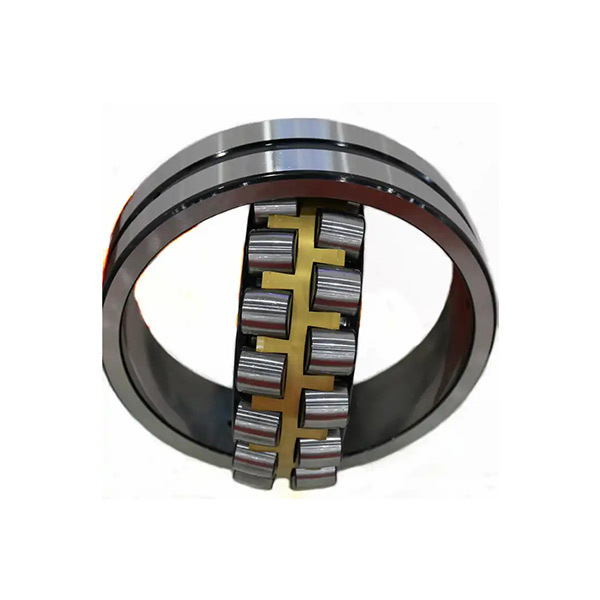

231 series
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts…
Product Description
Product Details
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Accommodate misalignment
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
Detailed pictures

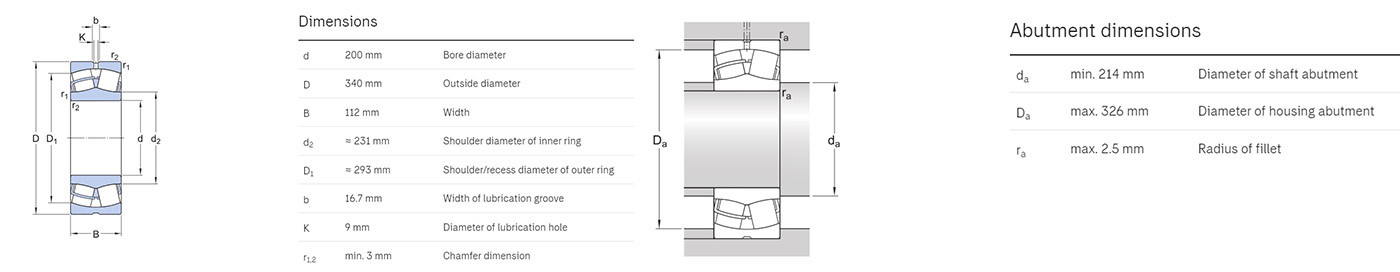

Parameter table
| Bearing Number | d mm | D mm | B mm |
| 23138-2CS5K/VT143 | 190 | 320 | 104 |
| 23140 CC/W33 | 200 | 340 | 112 |
| 23140 CCK/W33 | 200 | 340 | 112 |
| 23140-2CS5/VT143 | 200 | 340 | 112 |
| 23144 CC/W33 | 220 | 370 | 120 |
| 23144 CCK/W33 | 220 | 370 | 120 |
| 23144-2CS5/VT143 | 220 | 370 | 120 |
| 23148 CC/W33 | 240 | 400 | 128 |
| 23148 CCK/W33 | 240 | 400 | 128 |
| 23148-2CS5/VT143 | 240 | 400 | 128 |
| 23152 CAC/W33 | 260 | 440 | 144 |
| 23152 CACK/W33 | 260 | 440 | 144 |
| 23152 CC/W33 | 260 | 440 | 144 |
| 23152 CCK/W33 | 260 | 440 | 144 |
| 23156 CAC/W33 | 280 | 460 | 146 |
| 23156 CACK/W33 | 280 | 460 | 146 |
| 23156 CC/W33 | 280 | 460 | 146 |
| 23156 CCK/W33 | 280 | 460 | 146 |
| 23160 CAC/W33 | 300 | 500 | 160 |
| 23160 CACK/W33 | 300 | 500 | 160 |
| 23160 CC/W33 | 300 | 500 | 160 |
| 23160 CCK/W33 | 300 | 500 | 160 |
| 23164 CAC/W33 | 320 | 540 | 176 |
| 23164 CACK/W33 | 320 | 540 | 176 |
| 23164 CC/W33 | 320 | 540 | 176 |
| 23164 CCK/W33 | 320 | 540 | 176 |
| 23168 CAC/W33 | 340 | 580 | 190 |
| 23168 CACK/W33 | 340 | 580 | 190 |
| 23168 CC/W33 | 340 | 580 | 190 |
| 23168 CCK/W33 | 340 | 580 | 190 |
| 23172 CC/W33 | 360 | 600 | 192 |
| 23172 CCK/W33 | 360 | 600 | 192 |
| 23176 CA/W33 | 380 | 620 | 194 |
| 23176 CAK/W33 | 380 | 620 | 194 |
| 23180 CA/W33 | 400 | 650 | 200 |
| 23180 CAK/W33 | 400 | 650 | 200 |
| 23184 CJ/W33 | 420 | 700 | 224 |
| 23184 CKJ/W33 | 420 | 700 | 224 |
| 23188 CA/W33 | 440 | 720 | 226 |
| 23188 CAK/W33 | 440 | 720 | 226 |
| 23192 CA/W33 | 460 | 760 | 240 |
| 23192 CAK/W33 | 460 | 760 | 240 |
| 23196 CA/W33 | 480 | 790 | 248 |
| 23196 CAK/W33 | 480 | 790 | 248 |
| 231/500 CA/W33 | 500 | 830 | 264 |
| 231/500 CAK/W33 | 500 | 830 | 264 |
| 231/530 CA/W33 | 530 | 870 | 272 |
| 231/530 CAK/W33 | 530 | 870 | 272 |
| 231/560 CA/W33 | 560 | 920 | 280 |
| 231/600 CA/W33 | 600 | 980 | 300 |
| 231/600 CAK/W33 | 600 | 980 | 300 |
| 231/630 CA/W33 | 630 | 1030 | 315 |
| 231/630 CAK/W33 | 630 | 1030 | 315 |
| 231/670 CA/W33 | 670 | 1090 | 336 |
| 231/670 CAK/W33 | 670 | 1090 | 336 |
| 231/710 CA/W33 | 710 | 1150 | 345 |
| 231/710 CAK/W33 | 710 | 1150 | 345 |
| 231/750 CA/W33 | 750 | 1220 | 365 |
| 231/750 CAK/W33 | 750 | 1220 | 365 |
| 231/800 CAK/W33 | 800 | 1280 | 375 |
| 231/1000 CAF/W33 | 1000 | 1580 | 462 |
| 231/1000 CAKF/W33 | 1000 | 1580 | 462 |
