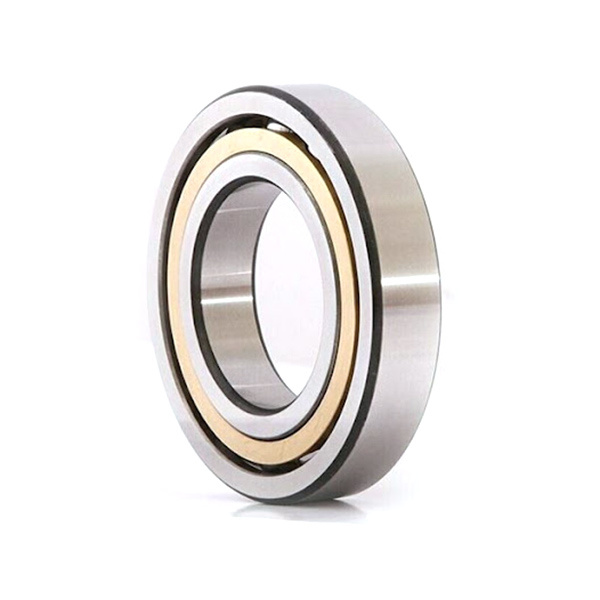

7400/71900series
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction…
Product Description
Product Details
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
High-speed capability
Accommodate relatively high radial loads and large unilateral axial loads
Detailed pictures

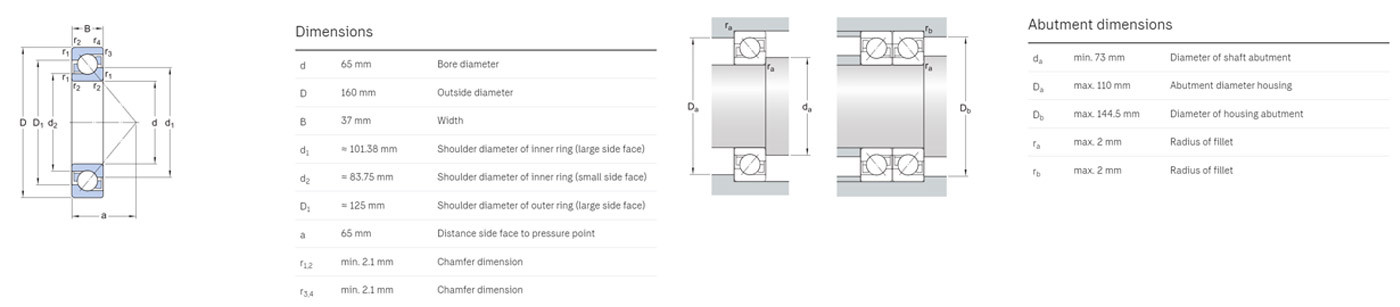

Parameter table
| Bearing Number | d mm | D mm | B mm |
| 7403-D | 17 | 62 | 34 |
| 7404-D | 20 | 72 | 38 |
| 7405-D | 25 | 80 | 42 |
| 7406-D | 30 | 90 | 46 |
| 7407-D | 35 | 100 | 50 |
| 7408-D | 40 | 110 | 54 |
| 7409-D | 45 | 120 | 58 |
| 7410-D | 50 | 130 | 62 |
| 7411-D | 55 | 140 | 66 |
| 7412-D | 60 | 150 | 70 |
| 7413-D | 65 | 160 | 74 |
| 7414-D | 70 | 180 | 84 |
| 7415-D | 75 | 190 | 90 |
| 7416-D | 80 | 200 | 96 |
| 7417-D | 85 | 210 | 104 |
| 7418-D | 90 | 225 | 108 |
| 7419-D | 95 | 250 | 110 |
| 7420-D | 100 | 265 | 120 |
| 7421-D | 105 | 290 | 130 |
| 7422-D | 110 | 320 | 140 |
| 71900 | 10 | 22 | 6 |
| 71901 | 12 | 24 | 6 |
| 71902 | 15 | 28 | 7 |
| 71903 | 17 | 30 | 7 |
| 71904 | 20 | 37 | 9 |
| 71905 | 25 | 42 | 9 |
| 71906 | 30 | 47 | 9 |
| 71907 | 35 | 55 | 10 |
| 71908 | 40 | 62 | 12 |
| 71909 | 45 | 68 | 12 |
| 71910 | 50 | 72 | 12 |
| 71911 | 55 | 80 | 13 |
| 71912 | 60 | 85 | 13 |
| 71913 | 65 | 90 | 13 |
| 71914 | 70 | 100 | 16 |
| 71915 | 75 | 105 | 16 |
| 71916 | 80 | 110 | 16 |
| 71917 | 85 | 120 | 16 |
| 71918 | 90 | 125 | 18 |
