AXK series
Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer…
Product Description
Product Details
Needle roller and cage thrust assembly
Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.
High axial load carrying capacity
High stiffness
Long service life
Require minimal axial space
Can be combined with bearing washers
Detailed pictures

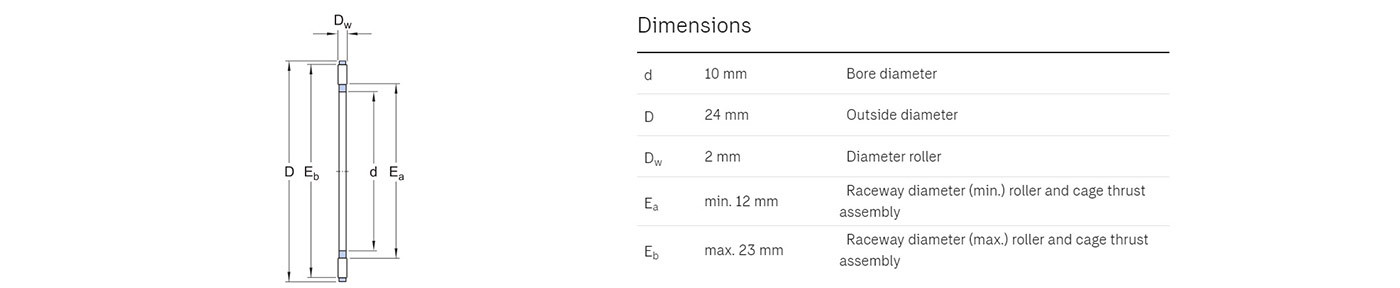

Parameter table
| Bearing Number | d mm | D mm | Dw mm |
| AXK 0414 TN | 4 | 14 | 2 |
| AXK 0515 TN | 5 | 15 | 2 |
| AXK 0619 TN | 6 | 19 | 2 |
| AXK 0821 TN | 8 | 21 | 2 |
| AXK1024 | 10 | 24 | 2 |
| AXW10 | 10 | 27 | 2 |
| AXK1226 | 12 | 26 | 2 |
| AXW12 | 12 | 29 | 2 |
| AXK 1528 | 15 | 28 | 2 |
| AXW 15 | 15 | 31 | 2 |
| AXK1730 | 17 | 30 | 2 |
| AXK 2035 | 20 | 35 | 2 |
| AXW 20 | 20 | 38 | 2 |
| AXK 2542 | 25 | 42 | 2 |
| AXW 25 | 25 | 45 | 2 |
| AXK3047 | 30 | 47 | 2 |
| AXW 30 | 30 | 50 | 2 |
| AXK 3552 | 35 | 52 | 2 |
| AXW 35 | 35 | 55 | 2 |
| AXK 4060 | 40 | 60 | 3 |
| AXW 40 | 40 | 63 | 3 |
| AXK 4565 | 45 | 65 | 3 |
| AXW45 | 45 | 68 | 3 |
| AXK 5070 | 50 | 70 | 3 |
| AXW 50 | 50 | 73 | 3 |
| AXK 5578 | 55 | 78 | 3 |
| AXK 6085 | 60 | 85 | 3 |
| AXK6590 | 65 | 90 | 3 |
| AXK 7095 | 70 | 95 | 4 |
| AXK 75100 | 75 | 100 | 4 |
| AXK 80105 | 80 | 105 | 4 |
| AXK 85110 | 85 | 110 | 4 |
| AXK90120 | 90 | 120 | 4 |
| AXK 100135 | 100 | 135 | 4 |
| AXK110145 | 110 | 145 | 4 |
| AXK120155 | 120 | 155 | 4 |
| AXK130170 | 130 | 170 | 5 |
| AXK 140180 | 140 | 180 | 5 |
| AXK150190 | 150 | 190 | 5 |
| AXK160200 | 160 | 200 | 5 |
