BTW series
Double direction angular contact thrust ball bearing, super-precision, basic design
Double direction angular contact thrust ball bearings are designed to locate spindle shafts axially in both directions. These bearings are intended for mounting in combination with cylindrical roller bearings, and consist of two single row angular contact thrust ball bearings…
Product Description
Product Details
Double direction angular contact thrust ball bearing, super-precision, basic design
Double direction angular contact thrust ball bearings are designed to locate spindle shafts axially in both directions. These bearings are intended for mounting in combination with cylindrical roller bearings, and consist of two single row angular contact thrust ball bearings arranged back-to-back. The large number of balls enables these bearings to accommodate high axial loads in both directions and provides a high degree of system rigidity.
Accommodate high axial loads in both directions
Offer maximum load carrying capacity and maximum system rigidity
Available for shaft diameters from 35 to 200 mm
Available with either steel or ceramic balls
Separable

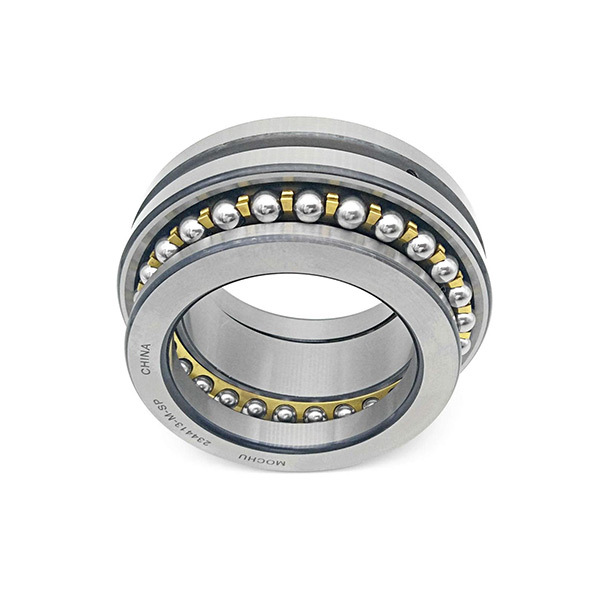

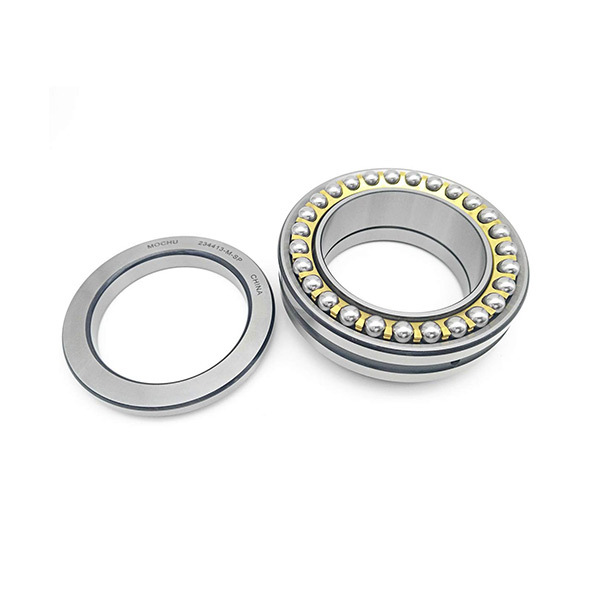

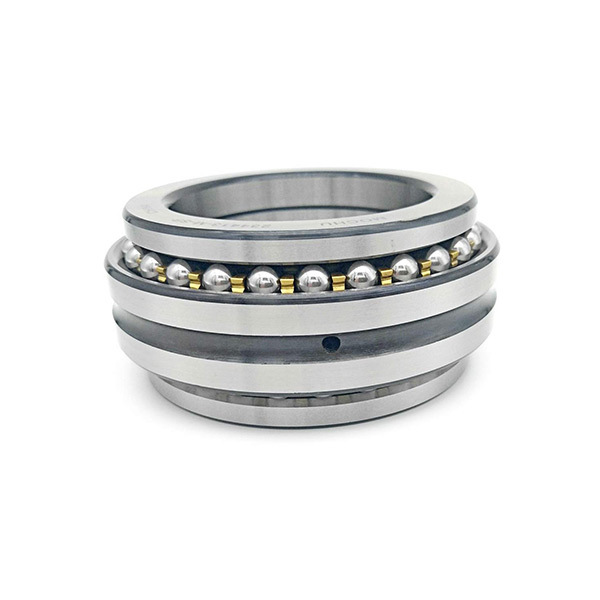

Detailed pictures

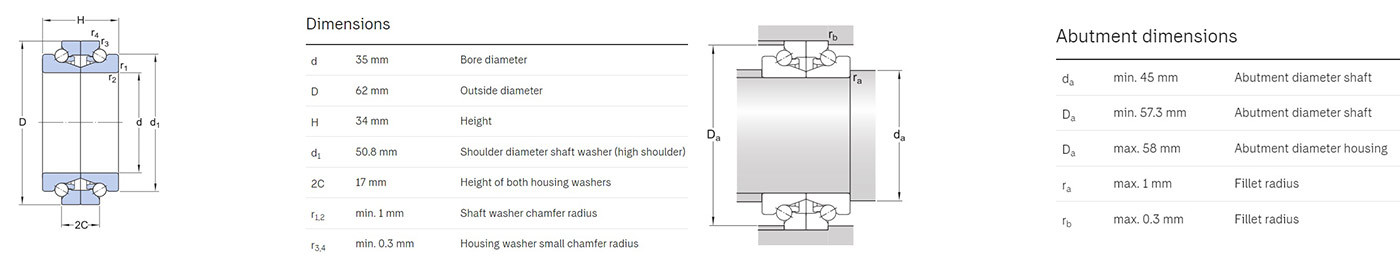

Parameter table
| Bearing Number | d mm | D mm | H mm |
| BTW35 CTN9/SP | 35 | 62 | 34 |
| BTW 40 CTN9/SP | 40 | 68 | 36 |
| BTW 45 CTN9/SP | 45 | 75 | 38 |
| BTW 50 CTN9/SP | 50 | 80 | 38 |
| BTW 55 CTN9/SP | 55 | 90 | 44 |
| BTW 60 CTN9/SP | 60 | 95 | 44 |
| BTW 65 CTN9/SP | 65 | 100 | 44 |
| BTW70 CTN9/SP | 70 | 110 | 48 |
| BTW75 CTN9/SP | 75 | 115 | 48 |
| BTW 80 CTN9/SP | 80 | 125 | 54 |
| BTW 85 CTN9/SP | 85 | 130 | 54 |
| BTW 90 CTN9/SP | 90 | 140 | 60 |
| BTW 95 CTN9/SP | 95 | 145 | 60 |
| BTM100 BTN9/P4CDB | 100 | 150 | 45 |
| BTW 100 CTN9/SP | 100 | 150 | 60 |
| BTW110 CTN9/SP | 110 | 170 | 72 |
| BTM 120 ATN9/P4CDB | 120 | 180 | 54 |
| BTW120 CTN9/SP | 120 | 180 | 72 |
| BTM 130 BTN9/HCP4CDB | 130 | 200 | 63 |
| BTW130 CTN9/SP | 130 | 200 | 84 |
| BTW140 CM/SP | 140 | 210 | 84 |
| BTW 150 CM/SP | 150 | 225 | 90 |
| BTW 160 CM/SP | 160 | 240 | 96 |
| BTW170 CM/SP | 170 | 260 | 108 |
| BTW 180 CM/SP | 180 | 280 | 120 |
| BTW190 CM/SP | 190 | 290 | 120 |
| BTW 200 CM/SP | 200 | 310 | 132 |
