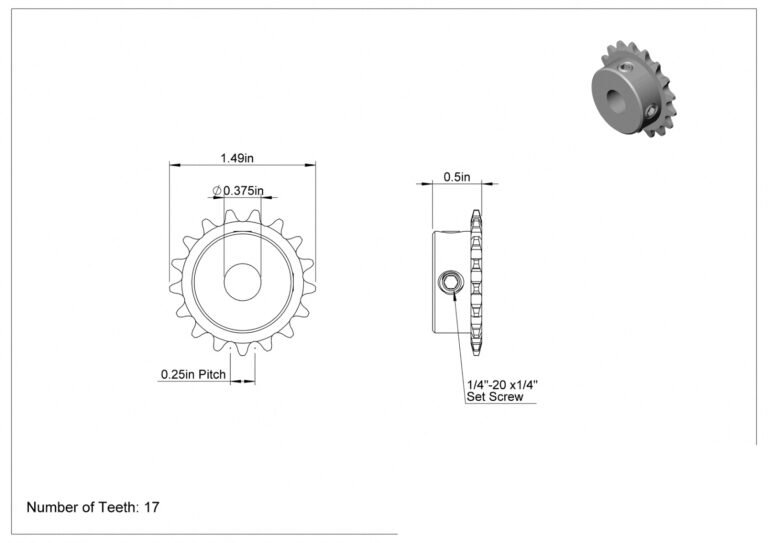

CHDHTBBG Sprocket – BORET
CHDHTBBG ANSI Roller Chain Sprocket by BORET. High-quality standard sprocket for industrial power transmission.
Product Description
Product Specifications
| Specification | Value |
|---|---|
| System of Measurement | Inch |
| Sprocket Type | Standard |
| Bore Type | Finished |
| For Roller Chain Strand Type | Single |
| For Roller Chain Standard | ANSI |
| For Roller Chain Trade Size | 25 |
| Chain Pitch | 0.25″ |
| Number Of Teeth | 17 |
| For Shaft Diameter | 0.375″ |
| Shaft Mount Type | Set Screw |
| For Shaft Type | Round |
| Bore Dia | 0.375″ |
| OD | 1.4375″ |
| Overall Width | 0.5″ |
| Hub Diameter | 1.125″ |
| Material | Steel |
| Includes | Two Set Screws |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
Brand: BORET
