CRBF Series Full Compeletment Crossed Roller Bearing
CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. Bedides, bearings performance is minimally affected by the mounting procedure. And with mounting holes on the inner and outer ring end face. the CRBF crossed roller bearing can fixed to the related parts directly, even without the housing or fixing plate…
Product Description
CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. Bedides, bearings performance is minimally affected by the mounting procedure. And with mounting holes on the inner and outer ring end face. the CRBF crossed roller bearing can fixed to the related parts directly, even without the housing or fixing plate.

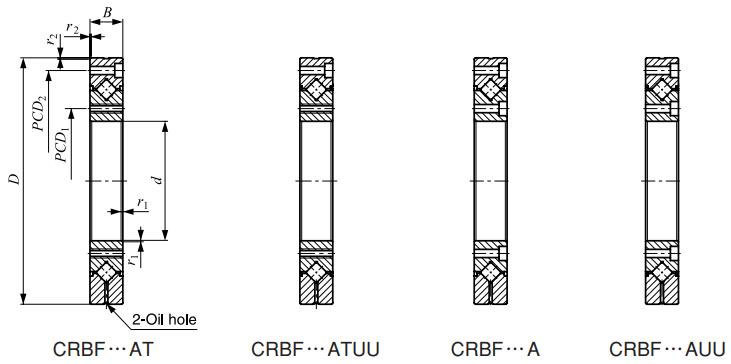

| Bearing Model Number | Dimensions | |||
| Open Type | Sealed Type | d mm | D mm | B mm |
| CRBF108AT | CRBF108ATUU | 10 | 52 | 8 |
| CRBF2012AT | CRBF2012ATUU | 20 | 70 | 12 |
| CRBF2512AT | CRBF2512ATUU | 25 | 80 | 12 |
| CRBF3515AT | CRBF3515ATUU | 35 | 95 | 15 |
| CRBF5515AT | CRBF5515ATUU | 55 | 120 | 15 |
| CRBF8022AT | CRBF8022ATUU | 80 | 165 | 22 |
| CRBF8022A | CRBF8022AUU | 80 | 165 | 22 |
| CRBF8022AD | CRBF8022ADUU | 80 | 165 | 22 |
| CRBF9025AT | CRBF9025ATUU | 90 | 210 | 25 |
| CRBF9025A | CRBF9025AUU | 90 | 210 | 25 |
| CRBF9025AD | CRBF9025ADUU | 90 | 210 | 25 |
| CRBF11528AT | CRBF11528ATUU | 115 | 240 | 28 |
| CRBF11528A | CRBF11528AUU | 115 | 240 | 28 |
| CRBF11528AD | CRBF11528ADUU | 115 | 240 | 28 |
