CRBH Series Crossed Roller Bearing
CRBH type crossed roller bearing comes with an integrated inner/outer ring structure, which can be used for both inner-ring and outer-ring rotation. CRBH type are lightweight, compact bearings with the thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate…
Product Description
CRBH type crossed roller bearing comes with an integrated inner/outer ring structure, which can be used for both inner-ring and outer-ring rotation. CRBH type are lightweight, compact bearings with the thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

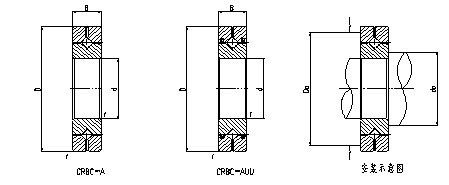

| Bearing Number | Dimensions | |||
| 1 | 2 | d mm | D mm | B mm |
| CRBH 208 A | CRBH 208 AUU | 20 | 36 | 8 |
| CRBH 258 A | CRBH 258 AUU | 25 | 41 | 8 |
| CRBH 3010 A | CRBH 3010 AUU | 30 | 55 | 10 |
| CRBH 3510 A | CRBH 3510 AUU | 35 | 60 | 10 |
| CRBH 4010 A | CRBH 4010 AUU | 40 | 65 | 10 |
| CRBH 4510 A | CRBH 4510 AUU | 45 | 70 | 10 |
| CRBH 5013 A | CRBH 5013 A UU | 50 | 80 | 13 |
| CRBH 6013 A | CRBH 6013 A UU | 60 | 90 | 13 |
| CRBH 7013 A | CRBH 7013 A UU | 70 | 100 | 13 |
| CRBH 8016 A | CRBH 8016 A UU | 80 | 120 | 16 |
| CRBH 9016 A | CRBH 9016 A UU | 90 | 130 | 16 |
| CRBH 10020 A | CRBH 10020 A UU | 100 | 150 | 20 |
| CRBH 11020 A | CRBH 11020 A UU | 110 | 160 | 20 |
| CRBH 12025 A | CRBH 12025 A UU | 120 | 180 | 25 |
| CRBH 13025 A | CRBH 13025 A UU | 130 | 190 | 25 |
| CRBH 14025 A | CRBH 14025 A UU | 140 | 200 | 25 |
| CRBH 15025 A | CRBH 15025 A UU | 150 | 210 | 25 |
| CRBH 20025 A | CRBH 20025 A UU | 200 | 260 | 25 |
| CRBH 25025 A | CRBH 25025 A UU | 250 | 310 | 25 |
