Cylindrical roller thrust bearings
Cylindrical roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. Thrust assemblies can be used in applications where the adjacent components serve as raceways and enable bearing arrangements with a low axial section heights…
Product Description
Product Details

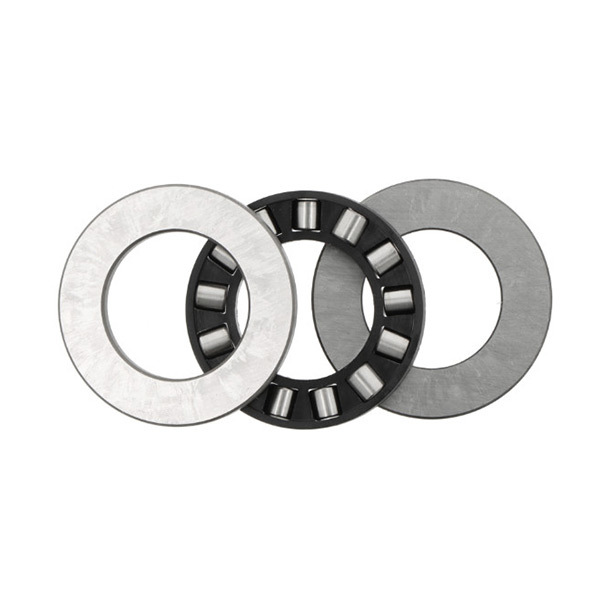

Cylindrical roller and cage thrust assembly
Cylindrical roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. Thrust assemblies can be used in applications where the adjacent components serve as raceways and enable bearing arrangements with a low axial section heights. Where the adjacent components cannot serve as raceways, they can be combined with one or two bearing washers to create complete bearings.
High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Can be combined with bearing washers
Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | H mm | Dw mm |
| K81102 TN | 15 | 28 | 3.5 | |
| K81103 TN | 17 | 30 | 3.5 | |
| K81104 TN | 20 | 35 | 4.5 | |
| K81105 TN | 25 | 42 | 5 | |
| K81106 TN | 30 | 47 | 5 | |
| K81206 TN | 30 | 52 | 7.5 | |
| K89306 TN | 30 | 60 | 5.5 | |
| K81107 TN | 35 | 52 | 5 | |
| K81207 TN | 35 | 62 | 7.5 | |
| K89307 TN | 35 | 68 | 6 | |
| K81108 TN | 40 | 60 | 6 | |
| K81208 TN | 40 | 68 | 9 | |
| K81109 TN | 45 | 65 | 6 | |
| K81209 TN | 45 | 73 | 9 | |
| K89309 TN | 45 | 85 | 7.5 | |
| K81110 TN | 50 | 70 | 6 | |
| K81210 TN | 50 | 78 | 9 | |
| K 89310 TN | 50 | 95 | 8 | |
| K81111 TN | 55 | 78 | 6 | |
| K 81211 TN | 55 | 90 | 11 | |
| K89311 TN | 55 | 105 | 9 | |
| K 81112 TN | 60 | 7.5 | ||
| K 81212 TN | 60 | 95 | 11 | |
| K 89312 TN | 60 | 110 | 9 | |
| K 89412 TN | 130 | 14 | ||
| K81113 TN | 65 | 90 | 7.5 | |
| K 81213 TN | 65 | 100 | 11 | |
| K 89313 TN | 65 | 115 | 9 | |
| K89413 TN | 65 | 140 | 15 | |
| K81114 TN | 70 | 95 | 7.5 | |
| K81214 TN | 70 | 105 | 11 | |
| K89314 TN | 70 | 125 | 10 | |
| K89414 TN | 70 | 150 | 16 | |
| K81115 TN | 75 | 100 | 7.5 | |
| K81215 TN | 75 | 110 | 11 | |
| K89315 TN | 75 | 135 | 11 | |
| K89415 M | 75 | 160 | 17 | |
| K81116 TN | 80 | 105 | 7.5 | |
| K81216 TN | 80 | 115 | 11 | |
| K89316 TN | 80 | 140 | 11 | |
| K89416 M | 80 | 170 | 18 | |
| K81117 TN | 85 | 110 | 7.5 | |
| K81217 TN | 85 | 125 | 12 | |
| K89317 M | 85 | 150 | 12 | |
| K89417 M | 85 | 180 | 19 | |
| K81118 TN | 90 | 120 | 9 | |
| K81218 TN | 90 | 135 | 14 | |
| K89318 M | 90 | 155 | 12 | |
| K89418 M | 90 | 190 | 20 | |
| K81120 TN | 100 | 135 | 11 | |
| K89320 M | 100 | 170 | 13 | |
| K89420 M | 100 | 210 | 22 | |
| K81122 TN | 110 | 145 | 11 | |
| K89322 M | 110 | 190 | 15 | |
| K89422 M | 110 | 230 | 24 | |
| K81124 TN | 120 | 155 | 11 | |
| K89324 M | 120 | 210 | 17 | |
| K89424 M | 120 | 250 | 26 | |
| K89326 M | 130 | 225 | 18 | |
| K89426 M | 130 | 270 | 28 | |
| K81128 TN | 140 | 180 | 12 | |
| K81228 M | 140 | 200 | 19 | |
| K89328 M | 140 | 240 | 19 | |
| K89428 M | 140 | 280 | 28 | |
| K81130 TN | 150 | 190 | 12 | |
| K81230 M | 150 | 215 | 21 | |
| K89330 M | 150 | 250 | 19 | |
| K89430 M | 150 | 300 | 30 | |
| K81132 TN | 160 | 200 | 12 | |
| K81232 M | 160 | 225 | 21 | |
| K89432 M | 160 | 320 | 32 | |
| K81134 TN | 170 | 215 | 14 | |
| K81234 M | 170 | 240 | 22 | |
| K89434 M | 170 | 340 | 34 | |
| K81136 M | 180 | 225 | 14 | |
| K 81236 M | 180 | 250 | 22 | |
| K89436 M | 180 | 360 | 36 | |
| K 81138 M | 190 | 240 | 15 | |
| K 81238 M | 190 | 270 | 26 | |
| K 89438 M | 190 | 380 | 38 | |
| K 81140 M | 200 | 250 | 15 | |
| K 81240 M | 200 | 280 | 26 | |
| K89440 M | 200 | 400 | 40 | |
| K81144 M | 220 | 270 | 15 | |
| K 81244 M | 220 | 300 | 26 | |
| K89444 M | 220 | 420 | 40 | |
| K81148 M | 240 | 300 | 18 | |
| K81152 M | 260 | 320 | 18 | |
| K 81252 M | 260 | 360 | 32 | |
| K 81156 M | 280 | 350 | 22 | |
| K81256 M | 280 | 380 | 32 | |
| K81160 M | 300 | 380 | 25 | |
| K81260 M | 300 | 420 | 38 | |
| K81168 M | 340 | 420 | 25 | |
| 81102 TN | 15 | 28 | 9 | |
| 81103 TN | 17 | 30 | 9 | |
| 81104 TN | 20 | 35 | 10 | |
| 81105 TN | 25 | 42 | 11 | |
| 81106 TN | 30 | 47 | 11 | |
| 81206 TN | 30 | 52 | 16 | |
| 89306 TN | 30 | 60 | 18 | |
| 81107 TN | 35 | 52 | 12 | |
| 81207 TN | 35 | 62 | ||
| 81108 TN | 40 | 60 | 13 | |
| 81208 TN | 40 | 68 | 19 | |
| 89308 TN | 40 | 78 | 22 | |
| 81109 TN | 45 | 65 | 14 | |
| 81209 TN | 45 | 73 | 20 | |
| 89309 TN | 45 | 85 | 24 | |
| 81110 TN | 50 | 70 | 14 | |
| 81210 TN | 50 | 78 | 22 | |
| 81111TN | 55 | 78 | 16 | |
| 81211 TN | 55 | 90 | 25 | |
| 89311 TN | 55 | 105 | 30 | |
| 81112 TN | 60 | 85 | 17 | |
| 81212 TN | 60 | 95 | 26 | |
| 89312 TN | 60 | 110 | 30 | |
| 89412 TN | 60 | 130 | 42 | |
| 81113 TN | 65 | 90 | 18 | |
| 81213 TN | 65 | 100 | 27 | |
| 89313 TN | 65 | 115 | 30 | |
| 89413 TN | 65 | 140 | 45 | |
| 81114 TN | 70 | 95 | 18 | |
| 81214 TN | 70 | 105 | 27 | |
| 89314 TN | 70 | 125 | 34 | |
| 89414 TN | 70 | 150 | 48 | |
| 81115 TN | 75 | 100 | 19 | |
| 81215 TN | 75 | 110 | 27 | |
| 89315 TN | 75 | 135 | 36 | |
| 89415 M | 75 | 160 | 51 | |
| 81116 TN | 80 | 105 | 19 | |
| 81216 TN | 80 | 115 | 28 | |
| 89316 TN | 80 | 140 | 36 | |
| 89416 M | 80 | 170 | 54 | |
| 81117 TN | 85 | 110 | 19 | |
| 81217 TN | 85 | 125 | 31 | |
| 89317 M | 85 | 150 | 39 | |
| 89417 M | 85 | 180 | 58 | |
| 81118 TN | 90 | 120 | 22 | |
| 81218 TN | 90 | 135 | 7C | |
| 89318 M | 90 | 155 | 39 | |
| 89418 M | 90 | 190 | 60 | |
| 81120 TN | 100 | 135 | 25 | |
| 81220 TN | 100 | 150 | 38 | |
| 89420 M | 100 | 210 | 67 | |
| 81122 TN | 110 | 145 | 25 | |
| 81222 TN | 110 | 160 | 38 | |
| 89322 M | 110 | 190 | 48 | |
| 89422 M | 110 | 230 | 73 | |
| 81124 TN | 120 | 155 | 25 | |
| 81224 TN | 120 | 170 | 39 | |
| 89424 M | 120 | 250 | 78 | |
| 81126 TN | 130 | 170 | 30 | |
| 81226 TN | 130 | 190 | 45 | |
| 89326 M | 130 | 225 | 58 | |
| 89426 M | 130 | 270 | 85 | |
| 81128 TN | 140 | 180 | 31 | |
| 81228 M | 140 | 200 | 46 | |
| 89328 M | 140 | 240 | 60 | |
| 89428 M | 140 | 280 | 85 | |
| 81130 TN | 150 | 190 | 31 | |
| 81230 M | 150 | 215 | 50 | |
| 89330 M | 150 | 250 | 60 | |
| 89430 M | 150 | 300 | 90 | |
| 81132 TN | 160 | 200 | 31 | |
| 81232 M | 160 | 225 | 51 | |
| 89432 M | 160 | 320 | 95 | |
| 81134 TN | 170 | 215 | 34 | |
| 81234 M | 170 | 240 | 55 | |
| 89434 M | 170 | 340 | 103 | |
| 81136 M | 180 | 225 | 34 | |
| 81236 M | 180 | 250 | 56 | |
| 89436 M | 180 | 360 | 109 | |
| 81138 M | 190 | 240 | 37 | |
| 81238 M | 190 | 270 | 62 | |
| 89438 M | 190 | 380 | 115 | |
| 81140 M | 200 | 250 | 37 | |
| 81240 M | 200 | 280 | 62 | |
| 89440 M | 200 | 400 | 122 | |
| 81144 M | 220 | 270 | 37 | |
| 81244 M | 220 | 300 | 63 | |
| 89444 M | 220 | 420 | 122 | |
| 81148 M | 240 | 300 | 45 | |
| 81248 M | 240 | 340 | 78 | |
| 89448 M | 240 | 440 | 122 | |
| 81152 M | 260 | 320 | ||
| 81252 M | 260 | 360 | 79 | |
| 89452 M | 260 | 480 | 132 | |
| 81156 M | 280 | 350 | 53 | |
| 89456 M | 280 | 520 | 145 | |
| 81160 M | 300 | 380 | 62 | |
| 89460 M | 300 | 540 | 145 | |
| 81164 M | 320 | 400 | 63 | |
| 81264 M | 320 | 440 | 95 | |
| 81168 M | 340 | 420 | 64 | |
| 81268 M | 340 | 460 | 96 | |
| 81172 M | 360 | 440 | 65 | |
| 81272 M | 360 | 500 | 110 | |
| 89172 M | 360 | 440 | 48 | |
| 81176 M | 380 | 460 | 65 | |
| 81276 M | 380 | 520 | 112 | |
| 89176 M | 380 | 460 | 48 | |
| 81280 M | 400 | 540 | 112 | |
| 89180 M | 400 | 480 | 48 | |
| 81184 M | 420 | 500 | 65 | |
| 89184 M | 420 | 500 | 48 | |
| 81188 M | 440 | 540 | 80 | |
| 81288 M | 440 | 600 | 130 | |
| 89188 M | 440 | 540 | 60 | |
| 81192M | 460 | 560 | 80 | |
| 81292 M | 460 | 620 | 130 | |
| 89192 M | 460 | 560 | 60 | |
| 81196 M | 480 | 580 | 80 | |
| 81296 M | 480 | 650 | 135 | |
| 89196 M | 480 | 580 | 60 | |
| 811/500 M | 500 | 600 | 80 | |
| 812/500 M | 500 | 670 | 135 | |
| 891/500 M | 500 | 600 | 60 | |
| BGSB 358371 | 508 | 762 | 139.7 | |
| 358060 | 530 | 710 | 120 | |
| 811/530 M | 530 | 640 | 85 | |
| 812/530 M | 530 | 710 | 140 | |
| 891/530 M | 530 | 640 | 67 | |
| 811/560 M | 560 | 670 | 85 | |
| 812/560 M | 560 | 750 | 150 | |
| 891/560 M | 560 | 670 | 67 | |
| 811/600 M/HB1 | 600 | 710 | 85 | |
| 812/600 M | 600 | 800 | 160 | |
| 891/600 M | 600 | 710 | 67 | |
| 811/630 M | 630 | 750 | 95 | |
| 812/630 M | 630 | 850 | 175 | |
| 891/630 M | 630 | 750 | 73 | |
| 811/670 M | 670 | 800 | 105 | |
| 812/670 M | 670 | 900 | 180 | |
| 891/670 M | 670 | 800 | 78 | |
| 812/710 M | 710 | 950 | 190 | |
| 891/710 M | 710 | 850 | 85 | |
| 811/750 M | 750 | 900 | 120 | |
| 812/750 M | 750 | 1000 | 195 | |
| 891/750 M | 750 | 900 | 90 | |
| 811/800 M | 800 | 950 | 120 | |
| 812/800 M | 800 | 1060 | 205 | |
| 891/800 M | 800 | 950 | 90 | |
| 811/850 M | 850 | 1000 | 120 | |
| 812/850 M | 850 | 1120 | 212 | |
| 891/850 M | 850 | 1000 | 90 | |
| 811/900 M | 900 | 1060 | 130 | |
| 812/900 M | 900 | 1180 | 220 | |
| 891/900 M | 900 | 1060 | 95 | |
| 811/950 M | 950 | 1120 | 135 | |
| 812/950 M | 950 | 1250 | 236 | |
| 891/950 M | 950 | 1120 | 103 | |
| 811/1000 M | 1000 | 1180 | 140 | |
| 812/1000 M | 1000 | 1320 | 250 | |
| 891/1000 M | 1000 | 1180 | 109 | |
| 811/1060 M | 1060 | 1250 | 150 | |
| 812/1060 M | 1060 | 1400 | 265 | |
| 891/1060 M | 1060 | 1250 | 115 | |
| 811/1120 M | 1120 | 1320 | 160 |
