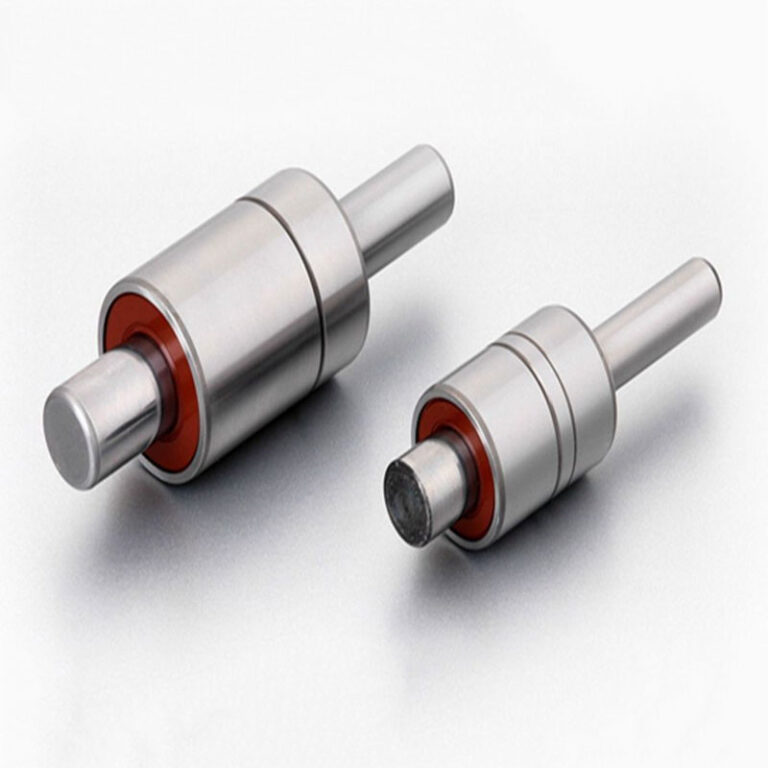

Double-row Ball Water Pump Bearings – WB1630 Series

BORET Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings…

Get A Quote

Product Description

Product Description

BORET Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.

BORET Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

BORET Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing – WB1630
Double-row ball water pump bearing – WB1940
Double-row ball water pump bearing – WB1938
Double-row ball water pump bearing – WB1226
Double-row ball water pump bearing – WB1224
Double-row ball water pump bearings
Single-row ball and single roller water pump bearings

Note：Swipe left or right to view the complete table!

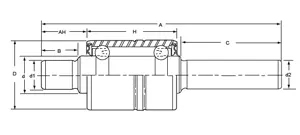

Bearing Designation Boundary Dimensions (mm)
BORET NSK FAG RHP KOYO D H A AH d d1 d2 B C
885104 30 38.89 132.16 15.918
885118 885118 W2468 FPS122 885118RSE 30 38.89 119.07 37.31 15.918
885140 885595 W2406-2 FPS17 885140BRSE 30 38.89 103.2 23.42 15.918
885159 885159 W2414 FPS860 30 38.89 92.48 24.21 15.918
885167 885167 FPS153 30 38.89 115.51 27.8 15.918
885168 885168AD W2481-6 885168AA 30 38.89 122.22 40.18 15.918
885168 885169 W2507 FPS42 885169-1 30 38.89 129 31.75 15.918
8855245 885524S W2433-2 FPS456 30 38.89 100 24 15.918 12 46
W6484-1 30 38.9 123 15.918
WB1530085 30 38.89 85 13.06 15 12 28.5
WB1530096 FPS744 30 38.89 96.5 17.87 15.918 12.052 35.45
WB1530100 FPS810 30 38.89 100 23.5 15.918
WB1630068 WPB16068RS 30 38.89 68.4 25 15.918
WB1630069 W2270 30 38.89 68.66 27.8 15.918
WB1630074 FPS878 30 38.89 73.91 11.4 15.918
WB1630078 30 38.89 73 17 16
WB1630078RS FPS832 30 38.89 75.6 27.01 15.918
WB1630080-1 30 30 79.6 15.918 12 33
WB1630080-3 30 23 80.3 17.2 15.918 12 38.5
WB1630080-4 30 27 80 15.9 15.918
WB1630080D 30 30 80 18 16 12 12 17 31
WB1630081 FPS413 30 38.89 80.95 22.48 15.918
WB1630083 30 27 82.5 17.7 15.918
WB1630083C 30 25 83.1 16 15.918
WB1630083D 30 30 83 18 16 12 33.8
WB1630084 30 30 84 17 15.918 12 33
WB1630084-1 W234 WPB16084RS 30 38.89 84.4 13 15.918 12 30
WB1630085-1 FPS694 30 38.89 85.22 15.21 15.918 12.042 29.21
WB1630085-2 30 27 84.4 17 15.918
WB1630085D FPS855 30 38.89 84.99 15.07 15.918 12.037 28
WB1630086 WPB16086/1RS 30 30 86 16.5 15.918 12 37
WB1630086D 30 38.89 86 17 15.918 15 12 16 33
WB1630087-1 30 38.89 87.4 15.918
WB1630087-4 30 38.89 86.5 15.918 12 32
WB1630087C 30 38.89 86.5 13.5 15.918 12.038 32.7
WB1630088-1 30 38.89 88 12.4 15.918 12 35.3
WB1630088-2 30 30 87.5 13.5 15.918 12 37.5
WB1630091C 30 38.89 91 13.5 15.918 12 36
WB1630091D WPB16091RS 30 38.89 91.5 17.56 15.918 12 12 15.5 3
WB1630092-1 FPS37 30 38.89 91.85 20.45 15.918 12.675 15 29.34
WB1630092-2 885477 W2364S FPS908 885477ARSE 30 38.89 92.48 25.12 15.918 12.037 26.06
WB1630092-2 30 38.89 92 16
WB1630092D 30 38.89 92 16.5 15.918 12 12 14.5 34.5
WB1630093 885330 W2366 WPB16093RS 30 38.89 93 18.5 15.918
WB1630093-1 WPB16093-1RS 30 38.89 93 18.5 15.918 12 32.6
WB1630093-2 30 38.89 93.25 16.25 16 12 12 14.5 35.75
WB1630093D WPB16093-4RS 30 38.89 92.5 16.5 15.918 12 34.5
WB1630094 FPS926 30 38.89 94.5 35.11 15.918
WB1630095 WPB16095CRS 30 38.89 94.6 19.2 15.918 12 33.5
WB1630097 30 30 97 15.918
WB1630098-1 FPS519 30 38.89 97.51 23.49 15.918
WB1630098-2 885110 W2384S 30 38.89 97.65 19.05 15.918 12.675 36.53
WB1630098-3 885324 FPS849 30 38.89 97.82 17.88 15.918
WB1630098-4 W2385-4 30 38.89 98 20 15.918
WB1630098-5 W2386S FPS811 30 38.89 98 18.51 15.918 12.235 38
WB1630098-6 30 38.89 97.65 15.918
WB1630098A 885307 W2385 FPS595 30 38.89 98 17 15.918
WB1630098C WPB16095-2RS 30 38.89 98 16 15.918 12 40.6
WB1630098CA W2385-6 30 38.89 98 17.06 15.918
WB1630098W 30 38.89 98 16.5 15.918
WB1630099 885474 W2387S FPS815 WPB16099-1RS 30 38.89 98.5 22.55 15.918 12 33.78
WB1630099-1 WPB16099-5RS 30 38.89 98.5 16.5 15.918 12 12 40.5
WB1630099-2 885301 30 38.89 98.88 23.62 15.918 15 15 21.13 32.51
WB1630099-3 30 38.89 98.5 16.25 16 12 12 14.5 50.25
WB1630100 WPB16100ARS 30 38.89 100 24 15.918 12 35
WB1630100-1 30 39 100 21 15.918 12 37.5
WB1630101 30 38.89 101 25 16 12 35
WB1630101-1 885467 W2398-1S FPS919 30 38.89 101.24 29 15.918 12.007 12.687 25.4 31.01
WB1630101-2 30 38.89 101.2 21.8 15.918
WB1630101D 885328 BWF3044 30 38.89 101 24 15.918 14 12 20.5 35.1
WB1630102 885321 W3399 30 38.89 101.5 17.5 15.918
WB1630102-1 885685RSH 30 38.89 101.5 17.5 15.918
WB1630102-3 W2401-3 FPS120 30 38.89 102.01 16.92 15.918
WB1630102-4 WPB16102CRSE 30 38.89 102.26 35 15.918 15 15 32.92 26.04
WB1630102-5 W2404S FPS623 WPB16102BRSE 30 30 102.62 24.45 15.918 12.674 38.1
WB1630102A 885147 FPS1 30 38.89 102.5 22 15.918 12.675 38.5
WB1630103-1 FPS484 30 38.89 101.74 35.02 15.918 12.7 12.014 30.5 23.75
WB1630103-2 885405 WPB16102-4RSE 30 38.89 102.74 28.77 15.918 12.014 12.7 25.5 32
WB1630103-3 FPS532 WPB16102AHSE 30 38.89 102.87 22.7 15.918 12.675 38.1
WB1630103-4 FPS620 WPB16103ERSE 30 38.89 102.87 23.11 15.918
WB1630103D WPB16103-9RS 30 38.89 103 16.51 15.918 12 43
WB1630104 30 38.89 104 16.25 16 12 12 14.5 46.5
WB1630104-1 30 38.89 103.8 17.5 16 12 12 16 44.8
WB1630104-2 W24071S FPS835 30 38.89 103.5 21.56 15.918 12 39.75
WB1630104-3 BWF3088 30 38.89 103.51 19.56 15.918 12 42
WB1630104-4 FPS601 30 39 103.84 22.33 15.918
WB1630104-5 30 38.89 104 15.918 12 35.1
WB1630104-6 BWF30AA FPS734 R16150-1RS 30 38.89 103.5 21.58 15.918 12 12 18.26 39.75
WB1630104D 30 38.89 103.65 21.5 15.918 12 36
WB1630105 30 38.89 105.36 16.2 16 12 12 15 48
WB1630105-1 W2412-1 30 38.89 104.65 20.3 15.918
WB1630105-2 885602 W2412 FPS239 30 38.89 104.68 27.05 15.918
WB1630105-3 FPS917 30 39 105 47.16 15.918
WB1630105 -4 FPS26 30 38.89 105.16 23.95 15.918
WB1630105-5 885699RSE 30 38.89 92.5 20.63 15.918
WB1630105-6 30 38.89 105 15.918 12 33.3
WB1630106 885490 FPS104 WPB16106-3RSEH 30 38.89 96.5 26.11 16
WB1630106-1 W2415-1S FPS106 WPB16105BRS 30 38.89 93 24.05 15.918 12 40
WB1630106-2 WPB16106MRS 30 38.89 93.25 16.5 15.918 12 12 13.1 46
WB1630106-3 885097 W2417-2 30 38.89 97 20.65 15.918
WB1630106-4 W2418 WPS16106DRS 30 38.89 98 25.15 15.918
WB1630106-5 885439 W2418S FPS730K WPB16106DRSE 30 38.89 98 25.12 15.918 12.738 38.86
WB1630106-6 30 38.89 98 18.5 15.918 12 41
WB1630106-7 30 38.89 97.82 20.8 15.918
WB1630106-8 30 38.89 93 23.5 15.918 12 40.5
WB1630106-9 30 38.89 98 16
WB1630106D 30 38.89 94.5 16.25 15.918 12 12 14.5 48
WB1630106D-1 30 38.89 97.51 25 16 12 40
WB1630106D-9 30 38.89 94.6 17.5 16 12 12 16 46.7
WB1630106G 30 38.89 97.65 16
WB1630106W 30 38.89 97.65 30 15.918 12 34
WB1630107 30 38.89 98 27.8 15.918 15.01 12.052 26.1 35
WB1630108 30 38.89 98 21.5 15.918 12 44.5
WB1630109 30 38.89 98.5 27.31 16 12 33.5
WB1630109-1 W2428-1 885111-D 30 38.89 98.5 27.38 15.918 12
WB1630110 W2431-2S 30 38.89 98.5 25.1 15.918 12.04 38.8
WB1630110-1 885107B W2431 FPS520 30 38.89 98.88 14.67 15.918
WB1630110-2 885305 30 38.89 100 23.52 15.918
WB1630111 30 39 100 28.96 15.918
WB1630112 885167 885167 30 38.89 101 23.8 15.918 12
WB1630112-1 W2440-4 FPS208 885167DRSE 30 38.89 101.2 29.21 15.918
WB1630112-2 885098 W2440-1 30 38.89 111.91 26.7 15.918
WB1630112-3 885327 WPB116112-5RS 30 38.89 112 25.15 15.918
WB1630112-4 W2440-5S BWF3076B 30 38.89 112 30 15.918 12 40.49
WB1630112-5 W2441-1 30 38.89 112 27 15.918
WB1630112-6 W2442 30 38.89 112.4 23.37 15.918
WB1630112D 30 38.89 101 21.5 15.918 12 44
WB1630113-1 FPS23 30 38.89 112.52 31.26 15.918
WB1630113-2 FPS16 30 38.89 112.67 25.52 15.918
WB1630113-3 885614 30 38.89 112.78 30 15.918
WB1630113-4 W2445 885155 30 38.89 113.11 31.75 15.918
WB1630113-5 FPS48 WPB16113CRSE 30 38.89 113.21 32 15.918
WB1630113-6 N885156 W2446 FPS24 885156-S 30 38.89 113.49 27.38 15.918
WB1630113-7 30 38.89 113 18.5 15.918 12 53.6
WB1630114 30 38.89 114 24 15.918
WB1630114-1 W2447 30 38.89 113.67 31.6 15.918
WB1630114-2 885697 W2450-2 C8DE8530A-1RSE 30 38.89 114.3 32 15.918
WB1630114-3 30 38.89 113.6 17 15.918 12 12 55.6
WB1630114-4 30 38.89 114 15.918 12 47.8
WB1630115-1 WPB16115-1RS 30 38.89 114.54 29.4 15.918 12 42.5
WB1630115-2 885133-A 885133ARSE 30 38.89 114.81 32 15.918
WB1630115-4 30 38.89 115 26.11 16
WB1630115-5 WPB16115-3ARS 30 38.89 115 16.5 15.918 12 33
WB1630116 30 38.89 116 26 15.918 12 46
WB1630116-1 8851495 W2431 FPS54 30 38.89 115.75 26.85 15.918
WB1630116-2 WPB16116-1RS 30 38.89 116 30.06 15.918 12 43
WB1630116C 30 38.89 116 27.11 15.918
WB1630117 30 38.89 116.5 27.5 16 13 47
WB1630117-1 W2462-2 885190 30 38.89 117.35 3.96 15.918
WB1630118 W2465 30 38.89 118.26 14.68 15.918
WB1630119-1 885135S W2470 885135CRSE 30 38.89 119.46 32.54 15.918
WB1630119-2 885637 30 38.89 119.48 40.82 15.918
WB1630119-3 30 38.89 119 22.5 15.918 12 55
WB1630119C 30 38.89 119.3 37.6 15.918
WB1630120 30 38.89 120 31 15.918
WB1630120-1 885584S W2472 885584 30 38.89 119.84 36.5 15.918
WB1630121 885105 W2476 885105 30 38.89 120.9 29.46 15.918
WB1630121-1 W2475 885222 30 38.89 120.65 28.12 15.918
WB1630121-2 30 39 121 24 15.918 12 53.6
WB1630122 W2479-1 885208 30 38.89 121.67 37.26 15.918
WB1630122-1 885238 W2478-1 FPS659 30 38.89 121.62 31.42 15.918
WB1630122-2 FPS674 30 38.89 121.92 41.37 15.918 12.675 38.1
WB1630122-3 30 38.89 122.12 32.96 15.918 12.703 44.7
WB1630122-4 885476 W2481 30 38.89 122.17 33.88 15.918
WB1630122-5 885168H FPS290 30 38.89 122.22 28.67 15.918
WB1630122-6 885168C W2481-1 FPS163 885168-1 30 38.89 122.22 28.58 15.918
WB1630122-7 30 38.89 122.24 33.5 15.918
WB1630122D 30 38.89 121.5 25 16 12 47.5
WB1630122X 30 38.89 122 26.5 15.918
WB1630123 W2484 30 38.9 123.04 38.86 15.918
WB1630123-1 WPB16122-1RSE 30 39 123 15.918
WB1630124 30 38.89 124 21 15.918
WB1630124-1 30 57.15 123.2 25.5 15.918
WB1630124-2 FPS109 WPB16124RS 30 38.89 124 42.61 15.918 12 40
WB1630124-3 885326 W2488S BWF3089 30 38.89 124 41.78 15.918 12 40.49
WB1630124-4 885245 W2489-2 FPS923 885245RSE 30 38.89 124.4 40 15.918
WB1630124-5 30 39 124 23 15.918 12 60.5
WB1630124-6 885100B W2486-2 885100B 30 38.89 123.67 31.75 15.918
WB1630125 FPS188 30 38.9 124.5 30.14 15.918 15.817 40.64
WB1630125-1 885534S 30 38.89 124.97 39.12 15.918
WB1630125-2 30 38.89 124.5 40 15.918
WB1630126 W2496 30 38.89 126 34.3 15.918
WB1630127 30 38.89 127 36 16 M12 19
WB1630127-1 FPS204 885142-C 30 38.89 127 44.52 15.918
WB1630127-2 FPS374 WPB16127CRSE 30 38.89 127 37.94 15.918 12.7 35.56
WB1630127-3 885142D W2500-2 30 38.89 127 32.56 15.918
WB1630127D 30 38.89 127 27 15.918 12 59
WB1630128 30 38.89 127.7 22.41 15.918
WB1630128-1 885151B W2405-6 885151-B 30 38.89 127.79 44.45 15.918
WB1630128-2 885141 FPS18 885141RSE 30 38.89 127.79 25.8 15.918
WB1630130 30 38.89 129 41 15.918
WB1630132 W2520 FPS389 30 38.89 132.16 50.42 15.918
WB1630132-1 885104A 30 38.89 132.16 47.85 15.918
WB1630133 885113-B 30 38.89 132.54 40.87 15.918
WB1630133-1 885113CRSE 30 38.89 132.64 29.77 15.918
WB1630133-2 885611 W3522-1 FPS661 30 38.89 132.64 29.77 15.918
WB1630133-3 FPS602 30 38.89 133.1 55.35 15.918
WB1630133-4 885415 W2524-1 30 38.89 133.25 38.86 15.918
WB1630134 885113 W2527 885113BRSE 30 38.89 133.86 42.65 15.918
WB1630135 885158AA W2531-1 K885158AA 30 38.89 134.92 33.15 15.918
WB1630135-1 885437S W2532 FPS786 30 38.89 135.28 50.85 15.918
WB1630135-2 885437RSE 30 38.89 135.28 45.59 15.918
WB1630136 FPS386 885093SRSE 30 38.89 135.74 44.5 15.918
WB1630136-1 885093 W2534-1 885093S 30 38.89 135.74 52.4 15.918
WB1630136-2 885158P W2537 FPS7 885245RSE 30 38.89 136.4 39.4 15.918
WB1630137 885672 30 38.89 137.49 40 15.918
WB1630138 W2542 FPS287 30 38.89 137.67 46.23 15.918
WB1630138-1 885158 FPS25 885158-1RSE 30 38.89 138.1 40.89 15.918
WB1630138-2 885158-1 30 38.89 138.1 58.34 15.918
WB1630138-3 W2543 30 38.89 138.1 45.7 15.918
WB1630139 885603 W2548-1 FPS397 885603 30 38.89 139.32 35.05 15.918
WB1630141 885248 W2555 FPS757 885248RSE 30 38.89 141 49 15.918
WB1630141-1 885458 W2556 FPS885 30 38.89 141.22 38.93 15.918
WB1630142 W2559 30 38.89 142.1 44.86 15.918
WB1630143 885141 W2562 FPS19 30 38.89 142.88 40.08 15.918
WB1630144 FPS525 885151-B 30 38.89 144.28 52.71 15.918 12.703 47.24
WB1630146 885694S W2575-1 FPS612 885141RSE 30 38.89 146.2 61.72 15.918
WB1630150 30 38.89 150 52 15.918 12 M10 50.5 48.5
WB1630150-1 885166C 885166C 30 38.89 150 35.1 15.918
WB1630154 W2606 30 38.89 154 34.04 15.918
WB1630154-1 FPS776 885125C 30 38.89 154.23 29.77 15.918
WB1630154-2 885613 W3607 FPS722 30 38.89 154.23 29.77 15.918
WB1630156 885671 30 38.89 155.58 69.95 15.918
WB1630160 885094 W2629-1 885094S 30 38.89 159.54 76.2 15.918
WB1630160-1 885136B W2629-4 885136B 30 38.89 159.77 62.66 15.918
WB1630161 885117 W2637 885117 30 38.89 161.47 58.34 15.918
WB1630166 FPS61 30 38.89 165.85 63.48 15.918
WB1630167 FPS646 30 38.89 177.09 79.88 15.918
WB1635073 35 22.5 73 14.5 16 12 34.2
WB1635091 35 38.9 91 15.918
WB1635101 35 38.89 101 15.918 12 35
WB1635119 35 46 119 26.5 18 13 42.2
WB1730071 WPB1730071RS 30 23 71 13.5 17 32
WB1730078 WPB1730078RS 30 23 77.8 15.5 17 12 37.3
WB1736091 36 38.89 90.7 14 17 15 34
WB1736091-1 36 38.89 90.7 17 12 34

Leave Us A Message

Message

Related Products

Contact Us

Contact Person: Vincent

WhatsApp: +8619163596911

WeChat: +8619163596911

Email: vincent@boretbearings.com

Facebook Twitter Linkedin Youtube Instagram Pinterest Vk

Products

  • Copyright ©
  • 2024
  • Shandong Borette Bearing Technology Co., Ltd.
Shopping Cart

Start typing and press enter to search

Get A Quote

Message
