Hexgon Bore
BORET Bearing offers a variety of quality bearings for agricultural equipment and machinery. Hexgon Bore Bearing, Square Bore Bearing,Round Bore Bearing and No Standard Bearing….
Product Description
BORET Bearing offers a variety of quality bearings for agricultural equipment and machinery.
Hexgon Bore Bearing, Square Bore Bearing,Round Bore Bearing and No Standard Bearing.

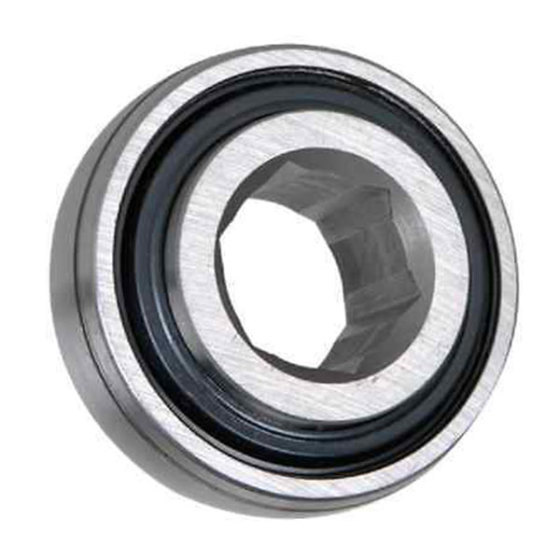

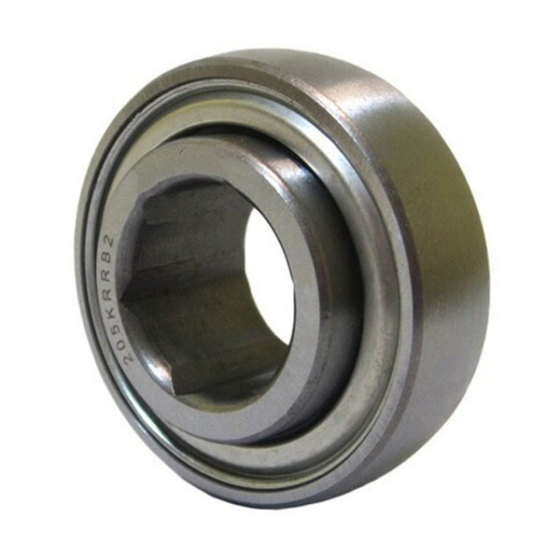

Hex Bore Cylindrical/Spherical O.D. Disc Harrow Bearings:
| Hexgon Bore | |||||
| Bearing Number | Type | d mm | D mm | B mm | C mm |
| 202KRR3 | Cylinfrical | 14.300 | 35.000 | 13.000 | 11.000 |
| 204KPP2 | Cylinfrical | 17.653 | 47.000 | 20.955 | 14.000 |
| 204KRR2 | Cylinfrical | 17.653 | 47.000 | 20.955 | 14.000 |
| 205KP13 | Cylinfrical | 22.250 | 52.000 | 25.400 | 15.000 |
| 205KRR2 | Cylinfrical | 22.250 | 52.000 | 25.400 | 15.000 |
| 206KPP3 | Cylinfrical | 25.425 | 62.000 | 24.000 | 16.000 |
| 206KPP4 | Cylinfrical | 25.425 | 62.000 | 24.000 | 16.000 |
| 206KRR6 | Cylinfrical | 25.425 | 62.000 | 24.000 | 16.000 |
| 207KRR12 | Cylinfrical | 28.600 | 72.000 | 25.000 | 17.000 |
| 207KRR9 | Cylinfrical | 28.600 | 72.000 | 37.694 | 17.000 |
| 207KPP3 | Cylinfrical | 31.775 | 72.000 | 37.694 | 17.000 |
| 207KRR17 | Cylinfrical | 31.775 | 72.000 | 37.694 | 17.000 |
| W208PP21 | Cylinfrical | 31.775 | 80.000 | 36.525 | 18.000 |
| W208KRR8 | Cylinfrical | 31.775 | 80.000 | 36.525 | 18.000 |
| 209KRR2 | Cylinfrical | 38.125 | 85.000 | 30.175 | 19.000 |
| W210PP7 | Cylinfrical | 41.300 | 90.000 | 30.175 | 30.175 |
| 204KRR2 | Spherical | 17.635 | 47.000 | 20.955 | 14.000 |
| 205PPB13 | Spherical | 22.250 | 52.000 | 25.400 | 15.000 |
| 205KRRB2 | Spherical | 22.250 | 52.000 | 25.400 | 15.000 |
| 206KPPB3 | Spherical | 25.425 | 62.000 | 24.000 | 16.000 |
| 206KPPB5 | Spherical | 25.425 | 62.000 | 26.924 | 16.000 |
| G206KPPB4 | Spherical | 25.425 | 62.000 | 24.000 | 18.000 |
| 206KRRB6 | Spherical | 25.425 | 62.000 | 24.000 | 16.000 |
| G206KRRB6 | Spherical | 25.425 | 62.000 | 24.000 | 16.000 |
| G207KPPB2 | Spherical | 28.600 | 72.000 | 37.694 | 19.000 |
| 207KRRB9 | Spherical | 28.600 | 72.000 | 37.694 | 17.000 |
| 207KRRB12 | Spherical | 28.600 | 72.000 | 25.000 | 17.000 |
| 207KPPB3 | Spherical | 31.775 | 72.000 | 25.000 | 17.000 |
| 207PPB5 | Spherical | 31.775 | 72.000 | 31.770 | 17.000 |
| 207KRRB17 | Spherical | 31.775 | 72.000 | 37.694 | 17.000 |
| W208PPB16 | Spherical | 31.775 | 80.000 | 36.525 | 18.000 |
| GW208KRRB5 | Spherical | 31.775 | 80.000 | 36.525 | 21.000 |
| GW208PPB22 | Spherical | 31.877 | 80.000 | 36.525 | 21.000 |
| W208KRRB6 | Spherical | 34.950 | 80.000 | 36.525 | 21.000 |
| G209KRRB2 | Spherical | 38.125 | 85.000 | 30.175 | 19.000 |
| 209KRRB2 | Spherical | 38.125 | 85.000 | 30.175 | 19.000 |
| G210KPPB2 | Spherical | 38.125 | 90.000 | 30.175 | 22.000 |
| 210RRB6 | Spherical | 38.125 | 90.000 | 30.175 | 22.000 |
| W210PPB7 | Spherical | 41.300 | 90.000 | 30.175 | 30.175 |
