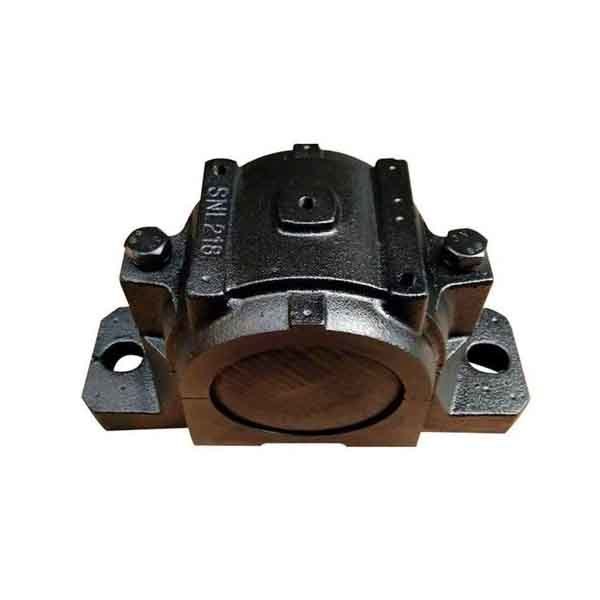

Insert Bearings SNL series

SNL plummer (pillow) block housings are the most popular bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings…

Get A Quote

Product Description

SNL plummer (pillow) block housings are the most popular bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

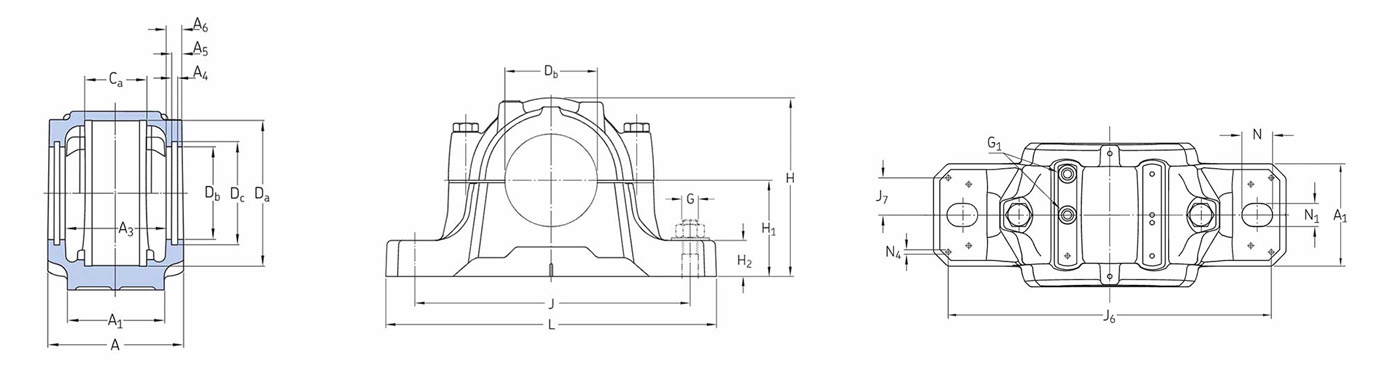

Bearing NO. Da mm Ca mm H1 mm A mm H mm L mm NO. J mm
SNL 205 52 25 40 67 74 165 2 130
SNL 205 V 52 25 40 67 74 165 2 130
SNL 505 52 25 40 67 74 165 2 130
SNL 505 V 52 25 40 67 74 165 2 130
SNL 206-305 62 32 50 77 89 185 2 150
SNL 206-305 V 62 32 50 77 89 185 2 150
SNL 506-605 62 32 50 77 89 185 2 150
SNL 506-605 V 62 32 50 77 89 185 2 150
SNL 207 72 34 50 82 93 185 2 150
SNL 207 V 72 34 50 82 93 185 2 150
SNL 507-606 72 34 50 83 93 185 2 150
SNL 507-606 V 72 34 50 83 93 185 2 150
SNL 507-606 VU 72 34 50 83 93 185 2 150
SNL 208-307 80 39 60 85 108 205 2 170
SNL 208-307 V 80 39 60 85 108 205 2 170
SNL 508-607 80 39 60 85 108 205 2 170
SNL 508-607 V 80 39 60 85 108 205 2 170
SNL 508-607 VU 80 39 60 85 108 205 2 170
SNL 209 85 30 60 85 109 205 2 170
SNL 209 V 85 30 60 85 109 205 2 170
SNL 209 VU 85 30 60 85 109 205 2 170
SNL 509 85 30 60 85 109 205 2 170
SNL 509 V 85 30 60 85 109 205 2 170
SNL 509 VU 85 30 60 85 109 205 2 170
SNL 210 90 41 60 90 114 205 2 170
SNL 210 V 90 41 60 90 114 205 2 170
SNL 510-608 90 41 60 90 113 205 2 170
SNL 510-608 V 90 41 60 90 113 205 2 170
SNL 510-608 VU 90 41 60 90 113 205 2 170
SNLD 210 90 41 60 90 114 205 2 170
FSNL 511-609 100 44 70 95 127 255 4 210
FSNLD 511-609 100 44 70 95 127 255 4 210
SNL 211 100 44 70 95 127 255 2 210
SNL 211 V 100 44 70 95 127 255 2 210
SNL 211 VU 100 44 70 95 127 255 2 210
SNL 511-609 100 44 70 95 127 255 2 210
SNL 511-609 V 100 44 70 95 127 255 2 210
SNL 511-609 VU 100 44 70 95 127 255 2 210
SNLD 211 100 44 70 95 127 255 2 210
SNLD 511-609 100 44 70 95 127 255 2 210
FSNL 212 110 48 70 105 134 255 4 210
SNL 212 110 48 70 105 134 255 2 210
SNL 212 V 110 48 70 105 134 255 2 210
SNL 212 VU 110 48 70 105 134 255 2 210
SNL 512-610 110 48 70 105 134 255 2 210
SNL 512-610 V 110 48 70 105 134 255 2 210
SNL 512-610 VU 110 48 70 105 134 255 2 210
SNL 512-610/MS2 110 48 70 105 134 255 4 200
SNLD 212 110 48 70 105 134 255 2 210
SNLD 512-610 110 48 70 105 134 255 2 210
FSNL 513-611 120 51 80 110 149 275 4 230
FSNLD 513-611 120 51 80 110 149 275 4 230
SNL 213 120 51 80 110 149 275 2 230
SNL 213 V 120 51 80 110 149 275 2 230
SNL 213 VU 120 51 80 110 149 275 2 230
SNL 513-611 120 51 80 110 149 275 2 230
SNL 513-611 V 120 51 80 110 149 275 2 230
SNL 513-611 VU 120 51 80 110 149 275 2 230
SNLD 213 120 51 80 110 149 275 2 230
SNLD 513-611 120 51 80 110 149 275 2 230
FSNL 515-612 130 56 80 115 155 280 4 230
FSNLD 515-612 130 56 80 115 155 280 4 230
SNL 215 130 56 80 115 155 280 2 230
SNL 215 V 130 56 80 115 155 280 2 230
SNL 215 VU 130 56 80 115 155 280 2 230
SNL 215/MS2 130 56 80 115 155 280 4 220
SNL 515-612 130 56 80 115 155 280 2 230
SNL 515-612 V 130 56 80 115 155 280 2 230
SNL 515-612 VU 130 56 80 115 155 280 2 230
SNLD 215 130 56 80 115 155 280 2 230
SNLD 515-612 130 56 80 115 155 280 2 230
FSNL 216 140 58 95 120 177 315 4 260
FSNL 516-613 140 58 95 120 177 315 4 260
FSNLD 516-613 140 58 95 120 177 315 4 260
SNL 216 140 58 95 120 177 315 2 260
SNL 216 V 140 58 95 120 177 315 2 260
SNL 516 TURU 140 58 95 118 177 315 2 260
SNL 516-613 140 58 95 120 177 315 2 260
SNL 516-613 V 140 58 95 120 177 315 2 260
SNL 516-613 VU 140 58 95 120 177 315 2 260
SSNLD 216 140 58 95 120 177 315 0 260
SSNLD 516-613 140 58 95 120 177 315 0 260
FSNL 217 150 61 95 125 183 320 4 260
FSNL 517 150 61 95 125 183 320 4 260
FSNLD 517 150 61 95 125 183 320 4 260
SNL 217 150 61 95 125 183 320 2 260
SNL 217 V 150 61 95 125 183 320 2 260
SNL 517 150 61 95 125 183 320 2 260
SNL 517 TURU 150 61 95 120 183 320 2 260
SNL 517 V 150 61 95 125 183 320 2 260
SNL 517 VU 150 61 95 125 183 320 2 260
SNL 517/MS2 150 61 95 125 183 320 4 252
SSNLD 217 150 61 95 125 183 320 0 260
SSNLD 517 150 61 95 125 183 320 0 260
FSNL 218 160 65 100 143 192 345 4 290
FSNL 518-615 160 65 100 143 192 345 4 290
FSNLD 218 160 65 100 143 192 345 4 290
FSNLD 518-615 160 65 100 143 192 345 4 290
SNL 218 160 65 100 143 192 345 2 290
SNL 218 V 160 65 100 143 192 345 2 290
SNL 518 TURU 160 65 100 136 192 345 2 290
SNL 518-615 160 65 100 143 192 345 2 290
SNL 518-615 V 160 65 100 143 192 345 2 290
SNL 518-615 VU 160 65 100 143 192 345 2 290
SNL 518-615/MS2 160 65 100 143 192 345 4 280
SNLD 218 160 65 100 143 192 345 2 290
FSNL 519-616 170 68 112 145 212 345 4 290
SNL 519 TURU 170 68 112 142 212 345 2 290
SNL 519-616 170 68 112 145 212 345 2 290
SNL 519-616 V 170 68 112 145 212 345 2 290
SNL 519-616 VU 170 68 112 145 212 345 2 290
SNL 519-616/MS2 170 68 112 145 212 345 4 280
SNL 616 TURU 170 68 112 142 212 345 2 290
SSNLD 519-616 170 68 112 145 212 345 0 290
FSNL 520-617 180 70 112 160 218 380 4 320
FSNLD 520-617 180 70 112 160 218 380 4 320
SNL 520 TURU 180 70 112 158 218 380 2 320
SNL 520-617 180 70 112 160 218 380 2 320
SNL 520-617 V 180 70 112 160 218 380 2 320
SNL 520-617 VU 180 70 112 160 218 380 2 320
SNL 617 TURU 180 70 112 158 218 380 2 320
SSNLD 520-617 180 70 112 160 218 380 0 320
FSNL 522-619 200 80 125 175 242 410 4 350
FSNLD 522-619 200 80 125 175 242 410 4 350
SNL 319 TURU 200 80 125 170 242 410 2 350
SNL 522 TURU 200 80 125 170 242 410 2 350
SNL 522-619 200 80 125 175 242 410 2 350
SNL 522-619 V 200 80 125 175 242 410 2 350
SNL 522-619 VU 200 80 125 175 242 410 2 350
FSNL 524-620 215 86 140 185 271 410 4 350
FSNLD 524-620 215 86 140 185 271 410 4 350
SNL 320 TURU 215 86 140 178 271 410 2 350
SNL 524 TURU 215 86 140 178 271 410 2 350
SNL 524-620 215 86 140 185 271 410 2 350
SNL 524-620 V 215 86 140 185 271 410 2 350
SNL 524-620 VU 215 86 140 185 271 410 2 350
SNL 620 TURU 215 86 140 178 271 410 2 350
FSNL 526 230 90 150 190 290 445 4 380
FSNLD 526 230 90 150 190 290 445 4 380
SNL 526 230 90 150 190 290 445 2 380
SNL 526 TURU 230 90 150 184 290 445 2 380
SNL 526 V 230 90 150 190 290 445 2 380
SNL 526 VU 230 90 150 190 290 445 2 380
SSNLD 526 230 90 150 190 290 445 0 380
FSNL 528 250 98 150 205 302 500 4 420
FSNLD 528 250 98 150 205 302 500 4 420
SNL 528 250 98 150 205 302 500 2 420
SNL 528 TURU 250 98 150 198 302 500 2 420
SNL 528 V 250 98 150 205 302 500 2 420
SNL 528 VU 250 98 150 205 302 500 2 420
SNL 528/MS2 250 98 150 205 302 500 4 400
SNLD 528 250 98 150 205 302 500 2 420
FSNL 530 270 106 160 220 323 530 4 450
FSNLD 530 270 106 160 220 323 530 4 450
SNL 530 270 106 160 220 323 530 2 450
SNL 530 TURU 270 106 160 214 323 530 2 450
SNL 530 V 270 106 160 220 323 530 2 450
SNL 530 VU 270 106 160 220 323 530 2 450
SSNLD 530 270 106 160 220 323 530 0 450
FSNL 532 290 114 170 235 344 550 4 470
FSNLD 532 290 114 170 235 344 550 4 470
SNL 532 290 114 170 235 344 550 2 470
SNL 532 TURU 290 114 170 230 344 550 2 470
SNL 532 V 290 114 170 235 344 550 2 470
SNL 532 VU 290 114 170 235 344 550 2 470
SSNLD 532 290 114 170 235 344 550 0 470
