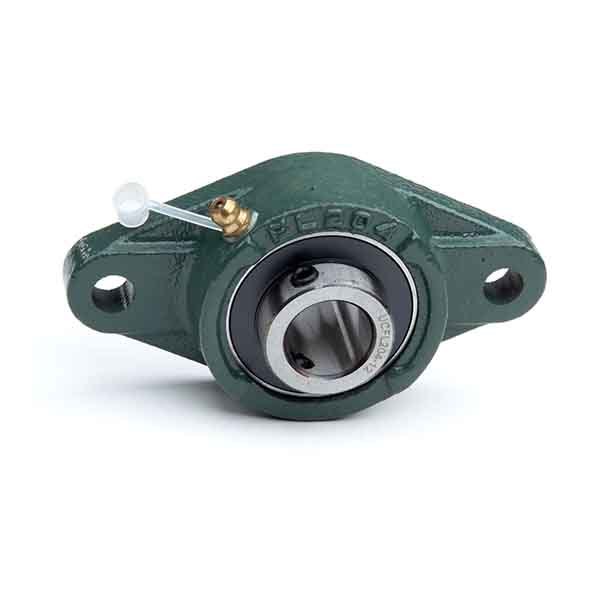

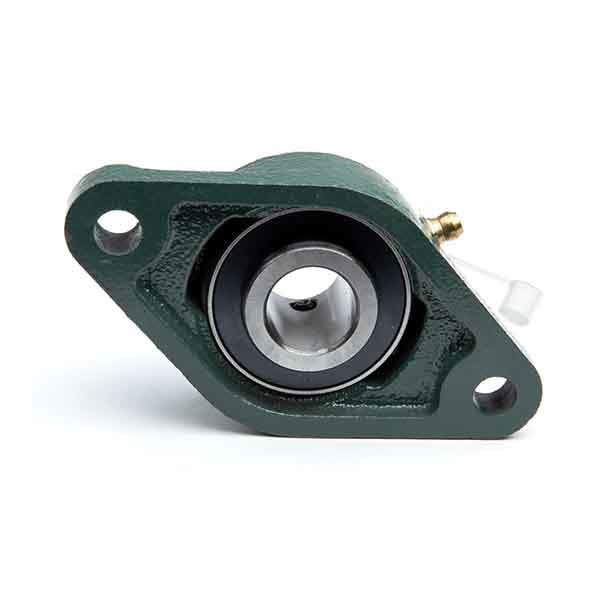

Insert Bearings UCFLU series
UCFLU NAFLU two-bolt flanged units are suggested for industrial applications where normal loads are encountered. This series is primarily designed for applications where the mounting area is restricted. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment…
Product Description
UCFLU NAFLU two-bolt flanged units are suggested for industrial applications where normal loads are encountered. This series is primarily designed for applications where the mounting area is restricted. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. The bonded seal design is well-suited for applications involving wet or dirty environments. Bolt-hole spacing dimensions and shaft center location are interchangeable with competitive units.

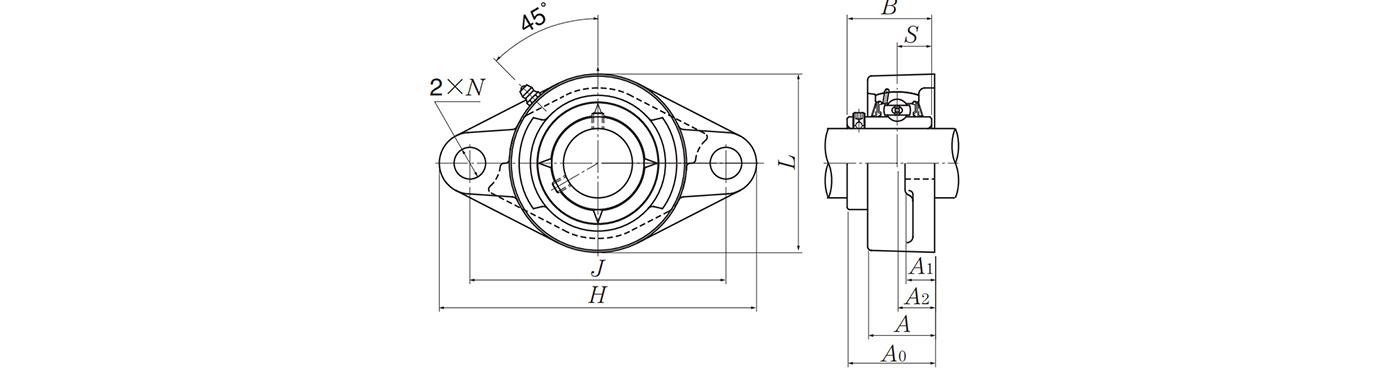

| Bearing NO. | d mm | H mm | J mm | L mm | A0 mm |
| UCFLU201-8 | 12.7 | 99 | 86.5 | 57 | 33.3 |
| UCFLU202-9 | 14.288 | 99 | 86.5 | 57 | 33.3 |
| UCFLU202-10 | 15.875 | 99 | 86.5 | 57 | 33.3 |
| UCFLU203-11 | 17.462 | 99 | 86.5 | 57 | 33.3 |
| UCFLU204-12 | 19.05 | 113 | 90 | 60 | 33.3 |
| UCFLU205-14 | 22.225 | 130 | 99 | 68 | 35.8 |
| UCFLU205-15 | 23.812 | 130 | 99 | 68 | 35.8 |
| UCFLU205-16 | 25.4 | 130 | 99 | 68 | 35.8 |
| UCFLU206-18 | 28.575 | 148 | 117 | 80 | 40.2 |
| UCFLU206-19 | 30.162 | 148 | 117 | 80 | 40.2 |
| UCFLU206-20 | 31.75 | 148 | 117 | 80 | 40.2 |
| UCFLU207-20 | 31.75 | 161 | 130 | 90 | 44.4 |
| UCFLU207-21 | 33.338 | 161 | 130 | 90 | 44.4 |
| UCFLU207-22 | 34.952 | 161 | 130 | 90 | 44.4 |
| UCFLU207-23 | 36.512 | 161 | 130 | 90 | 44.4 |
| UCFLU208-24 | 38.1 | 175 | 144 | 100 | 51.2 |
| UCFLU208-25 | 39.688 | 175 | 144 | 100 | 51.2 |
| UCFLU209-26 | 41.275 | 188 | 148 | 108 | 52.2 |
| UCFLU209-27 | 42.862 | 188 | 148 | 108 | 52.2 |
| UCFLU209-28 | 44.45 | 188 | 148 | 108 | 52.2 |
| UCFLU210-30 | 47.625 | 197 | 157 | 115 | 54.6 |
| UCFLU210-31 | 49.212 | 197 | 157 | 115 | 54.6 |
| UCFLU210-32 | 50.8 | 197 | 157 | 115 | 54.6 |
| UCFLU211-32 | 50.8 | 224 | 184 | 130 | 58.4 |
| UCFLU211-34 | 53.975 | 224 | 184 | 130 | 58.4 |
| UCFLU211-35 | 55.562 | 224 | 184 | 130 | 58.4 |
| UCFLU212-36 | 57.15 | 250 | 202 | 140 | 68.7 |
| UCFLU212-37 | 58.738 | 250 | 202 | 140 | 68.7 |
| UCFLU212-38 | 60.325 | 250 | 202 | 140 | 68.7 |
| UCFLU212-39 | 61.912 | 250 | 202 | 140 | 68.7 |
| UCFLU213-40 | 63.5 | 258 | 210 | 155 | 69.7 |
| UCFLU213-43 | 68.262 | 258 | 210 | 155 | 69.7 |
| UCFLU214-44 | 69.85 | 265 | 216 | 160 | 75.4 |
| UCFLU215-44 | 69.85 | 275 | 225 | 165 | 78.5 |
| UCFLU215-47 | 74.612 | 275 | 225 | 165 | 78.5 |
| UCFLU215-48 | 76.2 | 275 | 225 | 165 | 78.5 |
| UCFLU216-52 | 82.55 | 290 | 233 | 180 | 83.3 |
| UCFLU217-52 | 82.55 | 305 | 248 | 190 | 87.6 |
| UCFLU218-56 | 88.9 | 320 | 265 | 205 | 96.3 |
| NAFLU201 | 12 | 113 | 90 | 62 | 445.5 |
| NAFLU202 | 15 | 113 | 90 | 62 | 445.5 |
| NAFLU203 | 17 | 113 | 90 | 62 | 445.5 |
| NAFLU204 | 20 | 113 | 90 | 62 | 445.5 |
| NAFLU205 | 25 | 125 | 99 | 70 | 45.9 |
| NAFLU206 | 30 | 142 | 116.5 | 81 | 50.1 |
| NAFLU207 | 35 | 156 | 130 | 91 | 53.3 |
| NAFLU208 | 40 | 172 | 143.5 | 101 | 58.9 |
| NAFLU209 | 45 | 180 | 148.5 | 108 | 58.9 |
| NAFLU210 | 50 | 190 | 157 | 115 | 66.1 |
| NAFLU211 | 55 | 217 | 184 | 127 | 74.7 |
| NAFLU212 | 60 | 235 | 202 | 138 | 80.9 |
| NAFLU213 | 65 | 250 | 210 | 148 | 89.6 |
| NAFLU214 | 70 | 258 | 216 | 155 | 89.6 |
| NAFLU215 | 75 | 270 | 225 | 165 | 95.8 |
| NAFLU216 | 80 | 290 | 233 | 180 | 99.9 |
| NAFLU201-8 | 12.7 | 113 | 90 | 62 | 45.5 |
| NAFLU202-10 | 15.875 | 113 | 90 | 62 | 45.5 |
| NAFLU202-9 | 14.288 | 113 | 90 | 62 | 45.5 |
| NAFLU203-11 | 17.462 | 113 | 90 | 62 | 45.5 |
| NAFLU204-12 | 19.05 | 113 | 90 | 62 | 45.5 |
| NAFLU205-14 | 22.225 | 125 | 99 | 70 | 45.9 |
| NAFLU205-15 | 23.812 | 125 | 99 | 70 | 45.9 |
| NAFLU205-16 | 25.4 | 125 | 99 | 70 | 45.9 |
| NAFLU206-18 | 28.575 | 142 | 116.5 | 81 | 50.1 |
| NAFLU206-19 | 30.162 | 142 | 116.5 | 81 | 50.1 |
| NAFLU206-20 | 31.75 | 142 | 116.5 | 81 | 50.1 |
| NAFLU207-20 | 31.75 | 156 | 130 | 91 | 53.3 |
| NAFLU207-21 | 33.338 | 156 | 130 | 91 | 53.3 |
| NAFLU207-22 | 34.952 | 156 | 130 | 91 | 53.3 |
| NAFLU207-23 | 36.512 | 156 | 130 | 91 | 53.3 |
| NAFLU208-24 | 38.1 | 172 | 143.5 | 101 | 58.9 |
| NAFLU208-25 | 39.688 | 172 | 143.5 | 101 | 58.9 |
| NAFLU209-26 | 41.275 | 180 | 148.5 | 108 | 58.9 |
| NAFLU209-27 | 42.862 | 180 | 148.5 | 108 | 58.9 |
| NAFLU209-28 | 44.45 | 180 | 148.5 | 108 | 58.9 |
| NAFLU210-30 | 47.625 | 190 | 157 | 115 | 66.1 |
| NAFLU210-31 | 49.212 | 190 | 157 | 115 | 66.1 |
| NAFLU210-32 | 50.8 | 190 | 157 | 115 | 66.1 |
| NAFLU211-32 | 50.8 | 217 | 184 | 127 | 74.7 |
| NAFLU211-34 | 53.975 | 217 | 184 | 127 | 74.7 |
| NAFLU211-35 | 55.562 | 217 | 184 | 127 | 74.7 |
| NAFLU212-36 | 57.15 | 235 | 202 | 138 | 80.9 |
| NAFLU212-37 | 58.738 | 235 | 202 | 138 | 80.9 |
| NAFLU212-38 | 60.325 | 235 | 202 | 138 | 80.9 |
| NAFLU212-39 | 61.912 | 235 | 202 | 138 | 80.9 |
| NAFLU213-40 | 63.5 | 250 | 210 | 148 | 89.6 |
| NAFLU213-43 | 68.262 | 250 | 210 | 148 | 89.6 |
| NAFLU214-44 | 69.85 | 258 | 216 | 155 | 89.6 |
| NAFLU215-44 | 69.85 | 270 | 225 | 165 | 95.8 |
| NAFLU215-47 | 74.612 | 270 | 225 | 165 | 95.8 |
| NAFLU215-48 | 76.2 | 270 | 225 | 165 | 95.8 |
