Insert Bearings UCFU series

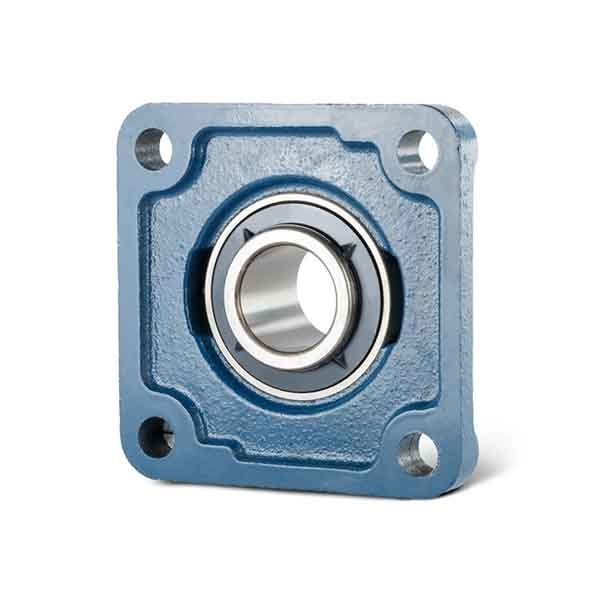

Square flanged ball bearing unit with set screw locking, cast iron. They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame…
Product Description
Square flanged ball bearing unit with set screw locking, cast iron. They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

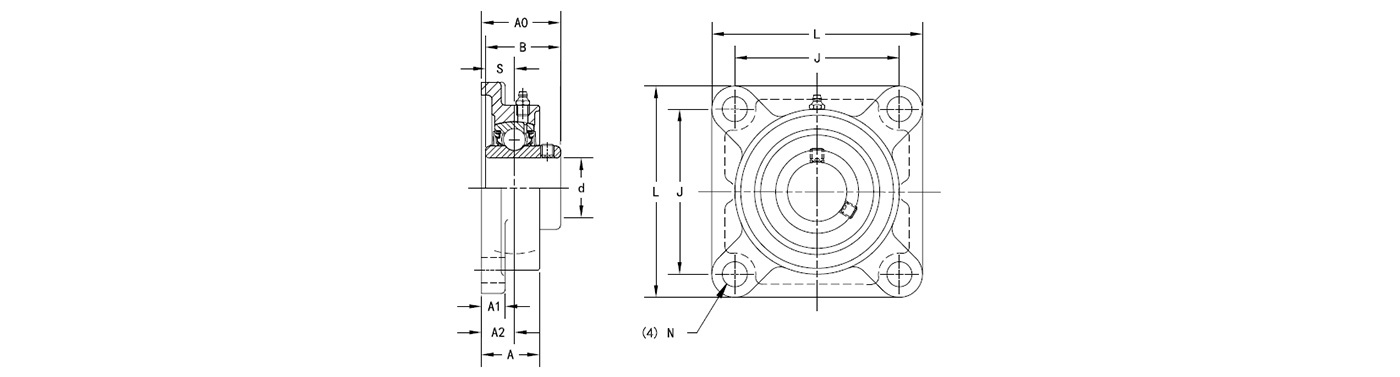

| Bearing NO. | d mm | L mm | B mm |
| UCFU319 | 95 | 103 | 290 |
| UCFU320 | 100 | 108 | 310 |
| UCFU321 | 105 | 112 | 310 |
| UCFU322 | 110 | 117 | 340 |
| UCFU324 | 120 | 126 | 370 |
| UCFU326 | 130 | 135 | 410 |
| UCFU328 | 140 | 145 | 450 |
| UCFU314 | 70 | 78 | 226 |
| UCFU315 | 75 | 82 | 236 |
| UCFU316 | 80 | 86 | 250 |
| UCFU317 | 85 | 96 | 260 |
| UCFU318 | 90 | 96 | 280 |
| UCFU207 | 35 | 42.9 | 119 |
| UCFU208 | 40 | 49.2 | 132 |
| UCFU209 | 45 | 49.2 | 139 |
| UCFU210 | 50 | 51.6 | 145 |
| UCFU211 | 55 | 55.6 | 164 |
| UCFU212 | 60 | 65.1 | 177 |
| UCFU213 | 65 | 65.1 | 189 |
| UCFU214 | 70 | 74.6 | 195 |
| UCFU215 | 75 | 77.8 | 202 |
| UCFU216 | 80 | 82.6 | 213 |
| UCFU217 | 85 | 85.7 | 222 |
| UCFU218 | 90 | 96 | 240 |
| UCFU220 | 100 | 108 | 270 |
| UCFU305 | 25 | 38 | 110 |
| UCFU306 | 30 | 43 | 125 |
| UCFU307 | 35 | 48 | 135 |
| UCFU308 | 40 | 52 | 150 |
| UCFU309 | 45 | 57 | 160 |
| UCFU310 | 50 | 61 | 175 |
| UCFU311 | 55 | 66 | 185 |
| UCFU312 | 60 | 71 | 195 |
| UCFU313 | 65 | 75 | 208 |
| UCFU203 | 17 | 27.4 | 78 |
| UCFU204 | 20 | 31 | 88 |
| UCFU205 | 25 | 34.1 | 97 |
| UCFU206 | 30 | 38.1 | 110 |
| UCFU202-9 | 14.288 | 86 | 64 |
| UCFU202* | 15 | 76 | 54 |
| UCFU202 | 15 | 86 | 64 |
| UCFU201-8 | 12.7 | 86 | 64 |
| UCFU201* | 12 | 76 | 54 |
| UCFU201 | 12 | 86 | 64 |
| UCFU212-38 | 60.325 | 175 | 143 |
| UCFU212-37 | 58.738 | 175 | 143 |
| UCFU212-36 | 57.15 | 175 | 143 |
| UCFU211-35 | 55.562 | 162 | 130 |
| UCFU211-34 | 53.975 | 162 | 130 |
| UCFU211-32 | 50.8 | 162 | 130 |
| UCFU210-32 | 50.8 | 143 | 111 |
| UCFU210-31 | 49.212 | 143 | 111 |
| UCFU210-30 | 47.625 | 143 | 111 |
| UCFU209-28 | 44.45 | 137 | 105 |
| UCFU209-27 | 42.862 | 137 | 105 |
| UCFU209-26 | 41.275 | 137 | 105 |
| UCFU208-25 | 39.688 | 130 | 102 |
| UCFU208-24 | 38.1 | 130 | 102 |
| UCFU207-23 | 36.512 | 117 | 92 |
| UCFU207-22 | 34.952 | 117 | 92 |
| UCFU207-21 | 33.338 | 117 | 92 |
| UCFU207-20 | 31.75 | 117 | 92 |
| UCFU206-20 | 31.75 | 108 | 83 |
| UCFU206-19 | 30.162 | 108 | 83 |
| UCFU206-18 | 28.575 | 108 | 83 |
| UCFU205-16 | 25.4 | 95 | 70 |
| UCFU205-15 | 23.812 | 95 | 70 |
| UCFU205-14 | 22.225 | 95 | 70 |
| UCFU204-12 | 19.05 | 86 | 64 |
| UCFU203-11 | 17.462 | 86 | 64 |
| UCFU203* | 17 | 76 | 54 |
| UCFU218-56 | 88.9 | 235 | 187 |
| UCFU217-52 | 82.55 | 220 | 175 |
| UCFU216-52 | 82.55 | 208 | 165 |
| UCFU215-48 | 76.2 | 200 | 159 |
| UCFU215-47 | 74.612 | 200 | 159 |
| UCFU215-44 | 69.85 | 200 | 159 |
| UCFU214-44 | 69.85 | 193 | 152 |
| UCFU213-43 | 68.262 | 187 | 149 |
| UCFU213-40 | 63.5 | 187 | 149 |
| UCFU212-39 | 61.912 | 175 | 143 |
| UCFU202-10 | 15.875 | 86 | 64 |
