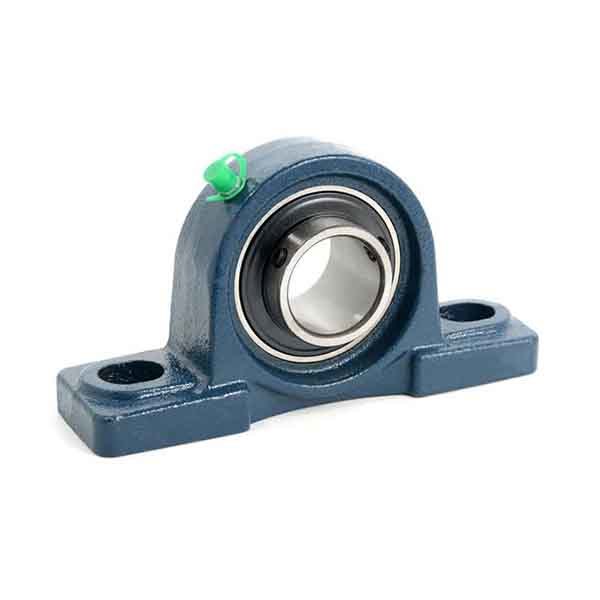

Insert Bearings UCP&NAP series

UAP series consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount…

Get A Quote

Product Description

UAP series consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount. Housing designed for ease of bearing replacement.

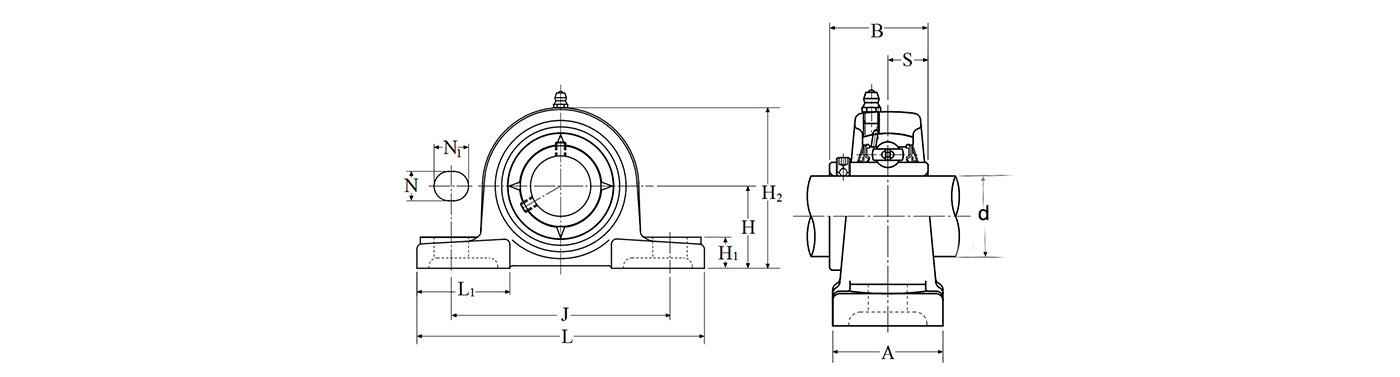

Bearing NO. H mm d mm L mm J mm H2 mm B mm
NAP201 30.2 12 125 96 57 43.5
NAP202 30.2 15 125 96 57 43.5
NAP203 30.2 17 125 96 57 43.5
NAP204 33.3 20 127 96 63.8 43.5
NAP205 36.5 25 140 105 69.5 44.3
NAP206 42.6 30 160 121 82 48.3
NAP207 47.6 35 167 126 92 51.1
NAP208 49.2 40 180 136 98 56.3
NAP209 54 45 190 146 107 56.3
NAP210 57.2 50 204 159 113 62.7
NAP211 63.5 55 219 172 125 71.4
NAP212 69.9 60 238 186 137 77.8
NAP213 76.2 65 262 203 148.2 85.7
NAP214 79.4 70 266 210 155 85.7
NAP215 82.6 75 275 217 163 92.1
NAP216 88.9 80 292 232 78 25
UCP201 30.2 12 127 95 62 27.4
UCP201/YA 30.2 12 127 95 62 31
UCP202 30.2 15 127 95 62 27.4
UCP202/YA 30.2 15 127 95 62 31
UCP203 30.2 17 127 95 62 27.4
UCP203/YA 30.2 17 127 95 62 31
UCP204 33.3 20 127 95 65 31
UCP205 36.5 25 140 105 71 34.1
UCP206 42.9 30 165 121 83 38.1
UCP207 47.6 35 167 127 93 42.9
UCP208 49.2 40 184 137 100 49.2
UCP209 54 45 190 146 106 49.2
UCP210 57.2 50 206 159 114 51.6
UCP211 63.5 55 219 171 126 55.6
UCP212 69.8 60 241 184 138 65.1
UCP213 76.2 65 265 203 151 65.1
UCP214 79.4 70 266 210 157 74.6
UCP215 82.6 75 275 217 163 77.8
UCP216 88.9 80 292 232 175 82.6
UCP217 95.2 85 310 247 187 85.7
UCP218 101.6 90 327 262 200 96
UCP220 115 100 380 308 225 108
UCP305 45 25 175 132 85 38
UCP306 50 30 180 140 95 43
UCP307 56 35 210 160 106 48
UCP308 60 40 220 170 116 52
UCP309 67 45 245 190 129 57
UCP310 75 50 275 212 143 61
UCP311 80 55 310 236 154 66
UCP312 85 60 30 250 165 71
UCP313 90 65 340 260 176 75
UCP314 95 70 360 280 187 78
UCP315 100 75 380 290 198 82
UCP316 106 80 400 300 210 86
UCP317 112 85 420 320 220 96
UCP318 118 90 430 330 235 96
UCP319 125 90 470 360 250 103
UCP320 140 100 490 380 275 108
UCP321 140 105 490 380 280 112
UCP322 150 110 520 400 300 117
UCP324 160 120 570 450 320 126
UCP326 180 130 600 480 355 135
UCP328 200 140 620 500 390 145
NAP201-8 30.2 12.7 125 96 57 43.5
NAP202-10 30.2 15.875 125 96 57 43.5
NAP202-9 30.2 14.288 125 96 57 43.5
NAP203-11 30.2 17.462 125 96 57 43.5
NAP204-12 33.3 19.05 127 96 63.8 43.5
NAP205-14 36.5 22.225 140 105 69.5 44.3
NAP205-15 36.5 23.812 140 105 69.5 44.3
NAP205-16 36.5 25.4 140 105 69.5 44.3
NAP206-18 42.6 28.575 160 121 82 48.3
NAP206-19 42.6 30.162 160 121 82 48.3
NAP206-20 42.6 31.75 160 121 82 48.3
NAP207-20 47.6 31.75 167 126 92 51.1
NAP207-21 47.6 33.338 167 126 92 51.1
NAP207-22 47.6 34.952 167 126 92 51.1
NAP207-23 47.6 36.512 167 126 92 51.1
NAP208-24 49.2 38.1 180 136 98 56.3
NAP208-25 49.2 39.688 180 136 98 56.3
NAP209-26 54 41.275 190 146 107 56.3
NAP209-27 54 42.862 190 146 107 56.36
NAP209-28 54 44.45 190 146 107 56.3
NAP210-30 57.2 47.625 204 159 113 62.7
NAP210-31 57.2 49.212 204 159 113 62.7
NAP210-32 57.2 50.8 204 159 113 62.7
NAP211-32 63.5 50.8 219 172 125 71.4
NAP211-34 63.58 53.975 219 172 125 71.4
NAP211-35 63.5 55.562 219 172 125 71.4
NAP212-36 69.9 57.15 238 186 137 77.8
NAP212-37 69.9 58.738 238 186 137 77.8
NAP212-38 69.9 60.325 238 186 137 77.8
NAP212-39 69.9 61.912 238 186 137 77.8
NAP213-40 76.2 63.5 262 203 148.2 85.7
NAP213-43 76.2 68.262 262 203 148.2 85.7
NAP214-44 79.4 69.85 266 210 155 85.7
NAP215-44 82.6 69.85 275 217 163 92.1
NAP215-47 82.6 74.612 275 217 163 92.1
NAP215-48 82.6 76.2 275 275 217 163
UCP201-8 30.2 12.7 125 96 57 27.4
UCP202-10 30.2 15.875 125 96 57 27.4
UCP202-9 30.2 14.288 125 96 57 27.4
UCP203-11 30.2 17.462 125 96 57 27.4
UCP204-12 33.3 19.05 127 96 63.8 31
UCP205-14 36.5 22.225 140 105 69.5 34.1
UCP205-15 36.5 23.812 140 105 69.5 34.1
UCP205-16 36.5 25.4 140 105 69.5 34.1
UCP206-16 34.1 52 14.3 140 105 36.5
UCP206-18 42.6 28.575 60 121 82 38.1
UCP206-19 42.6 30.162 160 121 82 38.1
UCP206-20 42.6 31.75 160 121 82 38.1
UCP207-20 47.6 31.75 167 126 92 42.9
UCP207-21 47.6 33.338 167 126 92 42.9
UCP207-22 47.6 34.952 167 126 92 42.9
UCP207-23 47.6 36.512 167 126 92 42.9
UCP208-24 49.2 38.1 180 136 98 49.2
UCP208-25 49.2 39.688 180 136 98 49.2
UCP209-26 54 41.275 190 146 107 49.2
UCP209-27 54 42.862 190 146 107 49.2
UCP209-28 54 44.45 190 146 107 49.2
UCP210-30 57.2 47.625 204 159 113 51.6
UCP210-31 57.2 49.212 204 159 113 51.6
UCP210-32 57.2 50.8 204 159 113 51.6
UCP211-32 63.5 50.8 219 172 125 55.6
UCP211-34 63.5 53.975 219 172 125 55.6
UCP211-35 63.5 55.562 219 172 125 55.6
UCP212-36 69.9 57.15 238 186 137 65.1
UCP212-37 69.9 58.738 238 186 137 65.1
UCP212-38 69.9 60.325 238 186 137 65.1
UCP212-39 69.9 61.912 238 186 137 65.1
UCP213-40 76.2 63.5 262 203 148.2 65.1
UCP213-43 76.2 68.262 262 203 148.2 65.1
UCP214-44 79.4 69.85 266 210 155 74.6
UCP215-44 82.6 69.85 275 217 163 77.8
UCP215-47 82.6 74.612 275 217 163 77.8
UCP215-48 82.6 76.2 275 217 163 77.8
UCP216-52 88.9 82.55 292 232 175 82.6
UCP217-52 95.2 82.55 310 247 186 85.7
UCP218-56 101.6 88.9 327 262 200 96
