Insert Bearings UCT series

UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications. These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment…

Get A Quote

Product Description

UCT take-up units are used where shaft adjustment and belt-tightening devices are required, such as in conveyor applications. These units provide compact, efficient supports for adjustable shafts and conveyer take-up pulleys. These units use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment. Slot spacing and width are interchangeable with competitive units. Housing designed for ease of bearing replacement.

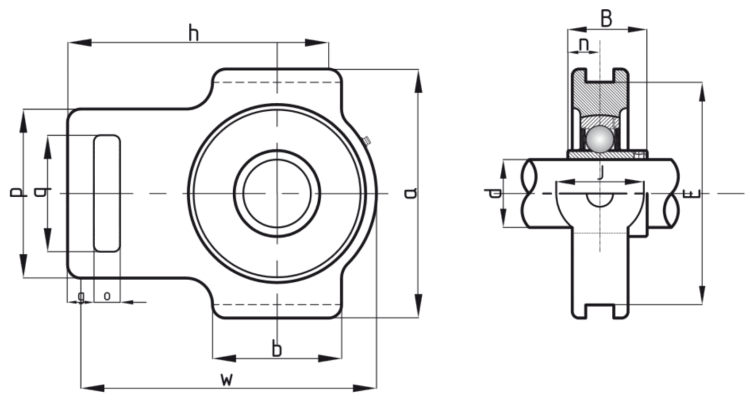

Bearing NO. W mm d mm a mm h mm q mm B mm
UCT201 94 12 89 61 32 31
UCWT201 78 12 62 50 28 27.4
UCT202 94 15 89 61 32 31
UCWT202 88 15 89 61 32 27.4
UCT203 94 17 89 61 32 31
UCWT203 88 17 89 61 32 27.4
UCT204 94 20 89 61 32 31
UCT205 97 25 89 62 32 34
UCT206 113 30 102 70 37 38.1
UCT207 129 35 102 78 37 42.9
UCT208 143 40 114 88 49 49.2
UCT209 144 45 117 87 49 49.2
UCT210 149 50 117 90 49 51.6
UCT211 171 55 146 106 64 55.6
UCT212 194 60 146 119 64 65.1
UCT213 224 65 167 137 70 65.1
UCT214 224 70 167 137 70 74.6
UCT215 232 75 167 140 70 77.8
UCT216 235 80 184 140 70 82.6
UCT217 260 85 198 162 73 85.7
UCT305 122 25 89 76 36 38
UCT306 137 30 100 85 41 43
UCT307 150 35 111 94 45 48
UCT308 162 40 124 100 50 52
UCT309 178 45 138 110 55 57
UCT310 191 50 151 117 61 61
UCT311 207 55 163 127 66 66
UCT312 220 60 178 135 71 71
UCT313 238 65 190 146 70 75
UCT314 252 70 202 155 85 78
UCT315 262 75 216 160 85 82
UCT316 282 80 230 174 98 86
UCT317 298 85 240 183 98 96
UCT318 312 90 255 192 106 96
UCT319 322 95 270 197 106 103
UCT320 345 100 290 210 115 108
UCT321 345 105 290 210 115 112
UCT322 285 110 320 235 125 117
UCT324 432 120 355 267 140 126
UCT326 465 130 385 285 150 135
UCT328 515 140 415 315 160 145
UCT201-8 94 12.7 89 61 32 31
UCT202-10 94 15.875 89 61 32 31
UCT202-9 94 14.288 89 61 32 31
UCT203-11 94 17.462 89 61 32 31
UCT204-12 94 19.05 89 61 32 31
UCT205-14 97 22.225 89 62 32 34
UCT205-15 97 23.812 89 62 32 34
UCT205-16 97 25.4 89 62 32 34
UCT206-18 113 28.575 102 70 37 38.1
UCT206-19 113 30.162 102 70 37 38.1
UCT206-20 113 31.75 102 70 37 38.1
UCT207-20 129 31.75 102 78 37 42.9
UCT207-21 129 33.338 102 78 37 42.9
UCT207-22 129 34.952 102 78 37 42.9
UCT207-23 129 36.512 102 78 37 42.9
UCT208-24 143 38.1 114 88 49 49.2
UCT208-25 143 39.688 114 88 49 49.2
UCT209-26 144 41.275 117 87 49 49.2
UCT209-27 144 42.862 117 87 49 49.2
UCT209-28 144 44.45 117 87 49 49.2
UCT210-30 149 47.625 117 90 49 51.6
UCT210-31 149 49.212 117 90 49 51.6
UCT210-32 149 50.8 117 90 49 51.6
UCT211-32 171 50.8 146 106 64 55.6
UCT211-34 171 53.975 146 106 64 55.6
UCT211-35 171 55.262 146 106 64 55.6
UCT212-36 194 57.15 146 119 64 65.1
UCT212-37 194 58.738 146 119 64 65.1
UCT212-38 194 60.325 146 119 64 65.1
UCT212-39 194 61.912 146 119 64 65.1
UCT213-40 224 63.5 167 137 70 65.1
UCT213-43 224 68.262 167 137 70 65.1
UCT214-44 224 69.85 167 137 70 74.6
UCT215-44 232 69.85 167 140 70 77.8
UCT215-47 232 74.612 167 140 70 77.8
UCT215-48 232 76.2 167 140 70 77.8
UCT216-52 235 82.55 184 140 70 82.6
UCT217-52 260 82.55 198 162 73 85.7
