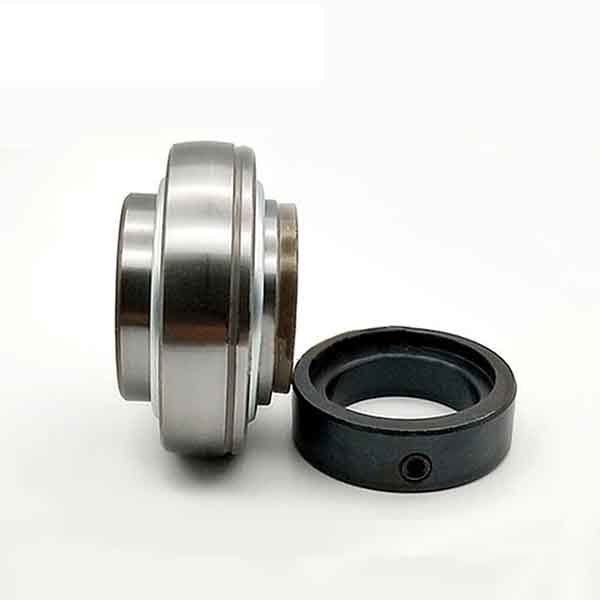

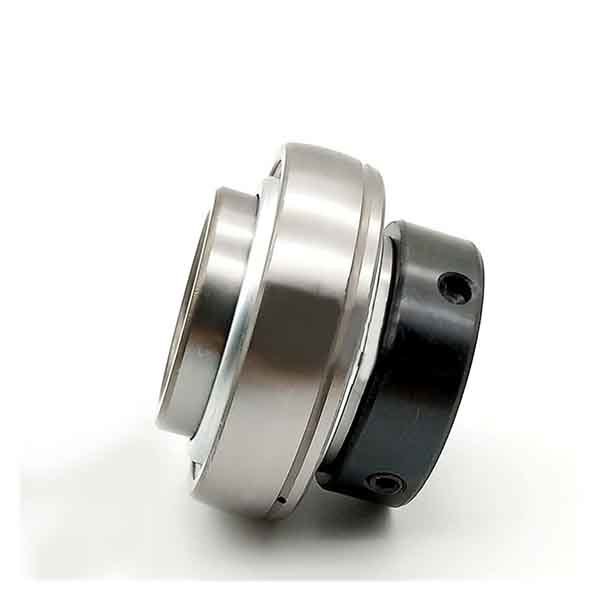

Insert Bearings UEL &SA series
The UEL wide inner ring ball bearing uses an eccentric locking collar mechanism and is suggested for industrial applications where normal loads are encountered. The UEL series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UEL series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical…
Product Description
The UEL wide inner ring ball bearing uses an eccentric locking collar mechanism and is suggested for industrial applications where normal loads are encountered. The UEL series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UEL series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical.

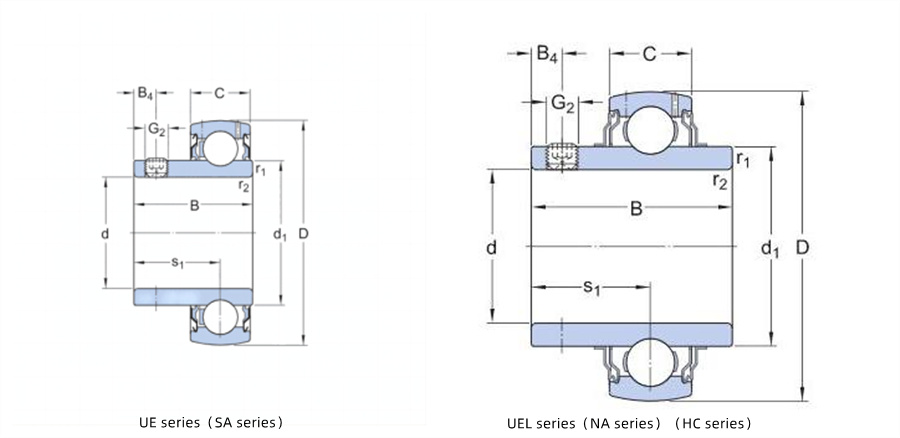

| Bearing NO. | d mm | D mm | B mm | C mm |
| UEL201 | 12 | 40 | 37.3 | 15 |
| UEL202 | 15 | 40 | 37.3 | 15 |
| UEL203 | 17 | 40 | 37.3 | 15 |
| UEL204 | 20 | 47 | 43.7 | 17 |
| UEL205 | 25 | 52 | 44.4 | 17 |
| UEL206 | 30 | 62 | 48.4 | 19 |
| UEL207 | 35 | 72 | 51.1 | 20 |
| UEL208 | 40 | 80 | 56.3 | 21 |
| UEL209 | 45 | 85 | 56.3 | 22 |
| UEL210 | 50 | 90 | 62.7 | 24 |
| UEL211 | 55 | 100 | 71.4 | 25 |
| UEL212 | 60 | 110 | 77.8 | 27 |
| UEL213 | 65 | 120 | 85.7 | 27 |
| UEL214 | 70 | 125 | 85.7 | 29 |
| UEL215 | 75 | 130 | 92.1 | 30 |
| UEL216 | 80 | 140 | 92 | 33 |
| UEL218 | 920 | 160 | 106.3 | |
| UEL305 | 25 | 62 | 46.8 | 21 |
| UEL306 | 30 | 72 | 50 | 23 |
| UEL307 | 35 | 80 | 51.6 | 25 |
| UEL308 | 40 | 90 | 57.1 | 27 |
| UEL309 | 45 | 100 | 58.7 | 30 |
| UEL310 | 50 | 110 | 66.6 | 32 |
| UEL311 | 55 | 120 | 73 | 34 |
| UEL312 | 60 | 130 | 79.4 | 36 |
| UEL313 | 65 | 140 | 85.7 | 38 |
| UEL314 | 70 | 150 | 92.1 | 40 |
| UEL315 | 75 | 160 | 100 | 42 |
| UEL316 | 80 | 170 | 106.4 | 44 |
| UEL317 | 85 | 180 | 109.5 | 46 |
| UEL318 | 90 | 190 | 115.9 | 48 |
| UEL319 | 95 | 200 | 122.3 | 50 |
| UEL320 | 100 | 215 | 128.6 | 54 |
| UEL321 | 105 | 225 | 139.7 | 56 |
| UEL322 | 110 | 240 | 142 | 60 |
| UEL204-12 | 19.05 | 47 | 43.7 | 17 |
| UEL205-14 | 22.225 | 52 | 44.4 | 17 |
| UEL205-15 | 22.225 | 52 | 44.4 | 17 |
| UEL205-16 | 25.4 | 52 | 44.4 | 17 |
| UEL206-18 | 28.575 | 62 | 48.4 | 19 |
| UEL206-19 | 30.162 | 62 | 48.4 | 19 |
| UEL206-20 | 31.75 | 62 | 48.4 | 19 |
| UEL207-20 | 31.75 | 72 | 51.1 | 20 |
| UEL207-21 | 33.338 | 72 | 51.1 | 20 |
| UEL207-22 | 34.925 | 72 | 51.1 | 20 |
| UEL207-23 | 36.512 | 72 | 51.1 | 20 |
| UEL208-24 | 38.1 | 80 | 56.3 | 21 |
| UEL208-25 | 39.688 | 80 | 56.3 | 21 |
| UEL209-26 | 41.275 | 85 | 56.3 | 22 |
| UEL209-27 | 42.826 | 85 | 56.3 | 22 |
| UEL209-28 | 44.45 | 85 | 56.3 | 22 |
| UEL210-30 | 47.625 | 90 | 62.7 | 24 |
| UEL210-31 | 49.212 | 90 | 62.7 | 24 |
| UEL211-32 | 50.8 | 100 | 71.4 | 25 |
| UEL211-34 | 53.975 | 100 | 71.4 | 25 |
| UEL211-35 | 55.562 | 100 | 71.4 | 25 |
| UEL212-36 | 57.15 | 110 | 77.8 | 27 |
| UEL212-38 | 60.325 | 110 | 77.8 | 27 |
| UEL212-39 | 61.912 | 110 | 77.8 | 27 |
| UEL213-40 | 63.5 | 120 | 85.7 | 27 |
| UEL214-44 | 69.85 | 125 | 85.7 | 29 |
| UEL215-48 | 76.2 | 130 | 92.1 | 30 |
| SA201 | 12 | 40 | 28.6 | 12 |
| SA201G | 12 | 40 | 28.6 | 12 |
| SA202 | 15 | 40 | 28.6 | 12 |
| SA202G | 15 | 40 | 28.6 | 12 |
| SA203 | 17 | 40 | 28.6 | 12 |
| SA203G | 17 | 40 | 28.6 | 12 |
| SA204 | 20 | 47 | 29.5 | 14 |
| SA204G | 20 | 47 | 29.5 | 14 |
| SA205 | 25 | 52 | 30.5 | 15 |
| SA205G | 25 | 52 | 30.5 | 15 |
| SA206 | 30 | 62 | 33.9 | 16 |
| SA206G | 30 | 62 | 33.9 | 16 |
| SA207 | 35 | 72 | 36.5 | 17 |
| SA207G | 35 | 72 | 37.5 | 17 |
| SA208 | 40 | 80 | 40.5 | 18 |
| SA208G | 40 | 80 | 40.5 | 19 |
| SA209 | 45 | 85 | 40.5 | 19 |
| SA209G | 45 | 85 | 42.2 | 20 |
| SA210 | 50 | 90 | 40.5 | 20 |
| SA210G | 50 | 90 | 43.7 | 21 |
| SA211 | 55 | 100 | 48.4 | 21 |
| SA211G | 55 | 100 | 48.4 | 23 |
| SA212 | 60 | 110 | 58.1 | 24 |
| SA201-8 | 12.7 | 40 | 28.6 | 12 |
| SA201-8G | 12.7 | 40 | 28.6 | 12 |
| SA202-10 | 15.875 | 40 | 28.6 | 12 |
| SA202-10G | 15.875 | 40 | 28.6 | 12 |
| SA202-9 | 14.288 | 40 | 28.6 | 12 |
| SA203-11 | 17.462 | 40 | 28.6 | 12 |
| SA203-11G | 17.462 | 40 | 28.69 | 12 |
| SA204-12 | 19.05 | 47 | 29.5 | 14 |
| SA204-12G | 19.05 | 47 | 29.5 | 14 |
| SA205-14 | 22.225 | 52 | 30.5 | 15 |
| SA205-14G | 22.225 | 52 | 30.5 | 15 |
| SA205-15 | 23.812 | 52 | 30.5 | 15 |
| SA205-15G | 23.812 | 52 | 30.5 | 15 |
| SA205-16 | 25.4 | 52 | 30.5 | 15 |
| SA205-16G | 25.4 | 52 | 30.5 | 15 |
| SA206-17 | 26.988 | 62 | 35.7 | 23.8 |
| SA206-18 | 28.575 | 62 | 33.9 | 16 |
| SA206-18G | 28.575 | 62 | 33.9 | 16 |
| SA206-19 | 30.162 | 62 | 33.9 | 16 |
| SA206-19G | 30.162 | 62 | 33.9 | 16 |
| SA206-20 | 31.75 | 62 | 33.9 | 16 |
| SA206-20G | 31.75 | 62 | 33.9 | 16 |
| SA207-20 | 31.75 | 72 | 36.5 | 17 |
| SA207-20G | 31.75 | 72 | 37.5 | 17 |
| SA207-21 | 33.338 | 72 | 36.5 | 17 |
| SA207-21G | 33.338 | 72 | 37.5 | 17 |
| SA207-22 | 34.952 | 72 | 36.5 | 17 |
| SA207-22G | 34.952 | 72 | 37.5 | 17 |
| SA207-23 | 36.512 | 72 | 36.5 | 17 |
| SA207-23G | 36.512 | 72 | 37.5 | 17 |
| SA208-24 | 38.1 | 80 | 40.5 | 18 |
| SA208-24G | 38.1 | 80 | 40.5 | 19 |
| SA208-25 | 39.688 | 80 | 40.5 | 18 |
| SA208-25G | 39.688 | 80 | 40.5 | 19 |
| SA209-26 | 41.275 | 85 | 40.5 | 19 |
| SA209-26G | 41.275 | 85 | 42.2 | 20 |
| SA209-27 | 42.862 | 85 | 40.5 | 19 |
| SA209-27G | 42.862 | 85 | 42.2 | 20 |
| SA209-28 | 44.45 | 85 | 40.5 | 19 |
| SA209-28G | 44.45 | 85 | 42.2 | 20 |
| SA210-30 | 47.625 | 90 | 40.5 | 20 |
| SA210-30G | 47.625 | 90 | 43.7 | 21 |
| SA210-31 | 49.212 | 90 | 40.5 | 20 |
| SA210-31G | 49.212 | 910 | 43.7 | 21 |
| SA210-32 | 50.8 | 90 | 40.5 | 20 |
| SA211-32 | 50.8 | 100 | 48.4 | 21 |
| SA211-32G | 50.8 | 100 | 48.4 | 23 |
| SA211-34 | 53.975 | 100 | 48.4 | 21 |
| SA211-34G | 53.975 | 100 | 48.4 | 23 |
| SA211-35 | 55.562 | 100 | 48.4 | 21 |
| SA211-35G | 55.562 | 100 | 48.4 | 23 |
| SA212-36 | 57.15 | 110 | 53.1 | 24 |
| SA212-38 | 60.325 | 110 | 53.1 | 24 |
| SA212-39 | 61.912 | 110 | 53.1 | 24 |
| NA201 | 12 | 47 | 43.5 | 17 |
| NA202 | 15 | 47 | 43.5 | 17 |
| NA203 | 17 | 47 | 43.5 | 17 |
| NA204 | 20 | 47 | 43.5 | 16 |
| NA205 | 25 | 52 | 44.3 | 17 |
| NA206 | 30 | 62 | 48.3 | 19 |
| NA207 | 35 | 72 | 51.1 | 20 |
| NA208 | 40 | 80 | 56.3 | 21 |
| NA209 | 45 | 85 | 56.3 | 22 |
| NA210 | 50 | 90 | 62.7 | 23 |
| NA211 | 55 | 100 | 71.3 | 25 |
| NA212 | 60 | 110 | 77.7 | 27 |
| NA213 | 65 | 120 | 85.7 | 28 |
| NA214 | 70 | 125 | 85.7 | 30 |
| NA215 | 75 | 130 | 92.1 | 30 |
| NA216 | 80 | 140 | 95.2 | 33 |
| NA201-8 | 12.7 | 47 | 43.5 | 17 |
| NA202-9 | 14.288 | 47 | 43.5 | 17 |
| NA202-10 | 15.875 | 47 | 43.5 | 17 |
| NA203-11 | 17.462 | 47 | 43.5 | 17 |
| NA204-12 | 19.05 | 47 | 43.5 | 16 |
| NA205-14 | 22.225 | 52 | 44.3 | 17 |
| NA205-15 | 23.812 | 52 | 44.3 | 17 |
| NA205-16 | 25.4 | 52 | 44.3 | 17 |
| NA206-18 | 28.575 | 62 | 48.3 | 19 |
| NA206-19 | 30.162 | 62 | 48.3 | 19 |
| NA206-20 | 31.75 | 62 | 48.3 | 19 |
| NA207-20 | 31.75 | 72 | 51.1 | 20 |
| NA207-21 | 33.338 | 72 | 51.1 | 20 |
| NA207-22 | 34.952 | 72 | 51.1 | 20 |
| NA207-23 | 36.512 | 72 | 51.1 | 20 |
| NA208-24 | 38.1 | 80 | 56.3 | 21 |
| NA208-25 | 39.688 | 80 | 56.3 | 21 |
| NA209-26 | 41.275 | 85 | 56.3 | 22 |
| NA209-27 | 42.862 | 85 | 56.3 | 22 |
| NA209-28 | 44.45 | 85 | 56.3 | 22 |
| NA210-30 | 47.625 | 90 | 62.7 | 23 |
| NA210-31 | 49.212 | 90 | 62.7 | 23 |
| NA210-32 | 50.8 | 90 | 62.7 | 24 |
| NA211-32 | 50.8 | 100 | 71.3 | 25 |
| NA211-34 | 53.975 | 100 | 71.3 | 25 |
| NA211-35 | 55.562 | 100 | 71.3 | 25 |
| NA212-36 | 57.15 | 110 | 77.7 | 27 |
| NA212-37 | 58.738 | 110 | 77.8 | 27 |
| NA212-38 | 60.325 | 110 | 77.7 | 27 |
| NA212-39 | 61.912 | 110 | 77.7 | 27 |
| NA213-40 | 63.5 | 120 | 85.7 | 28 |
| NA213-43 | 68.262 | 120 | 85.7 | 28 |
| NA214-44 | 69.85 | 125 | 85.7 | 30 |
| NA215-44 | 69.85 | 130 | 92.1 | 32 |
| NA215-47 | 74.612 | 130 | 92.1 | 32 |
| NA215-48 | 76.2 | 130 | 92.1 | 30 |
| HC202 | 15 | 40 | 37.3 | 14 |
| HC203 | 17 | 40 | 37.3 | 14 |
| HC204 | 20 | 47 | 43.5 | 16 |
| HC205 | 25 | 52 | 44.3 | 17 |
| HC206 | 30 | 62 | 48.3 | 19 |
| HC207 | 35 | 72 | 51.1 | 20 |
| HC208 | 40 | 80 | 56.3 | 21 |
| HC209 | 45 | 85 | 56.3 | 22 |
| HC210 | 50 | 90 | 62.7 | 23 |
| HC211 | 55 | 100 | 71.3 | 25 |
| HC212 | 60 | 110 | 77.7 | 27 |
| HC213 | 65 | 120 | 85.7 | 28 |
| HC214 | 70 | 125 | 85.7 | 30 |
| HC215 | 75 | 130 | 92.1 | 30 |
| HC216 | 80 | 140 | 95.2 | 33 |
| HC202-10 | 15.875 | 40 | 37.3 | 14 |
| HC203-11 | 17.462 | 40 | 37.3 | 14 |
| HC204-12 | 19.05 | 47 | 43.5 | 16 |
| HC205-14 | 22.225 | 52 | 44.3 | 17 |
| HC205-15 | 23.812 | 52 | 44.3 | 17 |
| HC205-16 | 25.4 | 52 | 44.3 | 17 |
| HC206-17 | 26.988 | 62 | 48.4 | 36.5 |
| HC206-18 | 28.575 | 62 | 48.3 | 19 |
| HC206-19 | 30.162 | 62 | 48.3 | 19 |
| HC206-20 | 31.75 | 62 | 48.3 | 19 |
| HC207-20 | 31.75 | 72 | 51.1 | 20 |
| HC207-21 | 33.338 | 72 | 51.1 | 20 |
| HC207-22 | 34.952 | 72 | 51.1 | 20 |
| HC207-23 | 36.512 | 72 | 51.1 | 20 |
| HC208-24 | 38.1 | 80 | 56.3 | 21 |
| HC208-25 | 39.688 | 80 | 56.3 | 21 |
| HC209-26 | 41.275 | 85 | 56.3 | 22 |
| HC209-27 | 42.862 | 85 | 56.3 | 22 |
| HC209-28 | 44.45 | 85 | 56.3 | 22 |
| HC210-30 | 47.625 | 90 | 62.7 | 23 |
| HC210-31 | 49.212 | 90 | 62.7 | 23 |
| HC211-32 | 50.8 | 100 | 71.3 | 25 |
| HC211-34 | 53.975 | 100 | 71.3 | 25 |
| HC211-35 | 55.562 | 100 | 71.3 | 25 |
| HC212-36 | 57.15 | 110 | 77.7 | 27 |
| HC212-38 | 60.325 | 110 | 77.7 | 27 |
| HC212-39 | 61.912 | 110 | 77.7 | 27 |
| HC213-40 | 63.5 | 120 | 85.7 | 28 |
| HC214-44 | 69.85 | 125 | 85.7 | 30 |
| HC215-48 | 76.2 | 130 | 92.1 | 30 |
| UE201/YA | 12 | 40 | 28.6 | 15 |
| UE202/YA | 15 | 40 | 28.6 | 15 |
| UE203 | 17 | 40 | 28.6 | 13 |
| UE203/YA | 17 | 40 | 28.6 | 15 |
| UE204 | 20 | 47 | 31 | 15 |
| UE204/YA | 20 | 47 | 31 | 17 |
| UE205 | 25 | 52 | 31 | 15 |
| UE205/YA | 25 | 52 | 31 | 17 |
| UE206 | 30 | 62 | 35.7 | 18 |
| UE206/YA | 30 | 62 | 35.7 | 19 |
| UE207 | 35 | 72 | 38.9 | 19 |
| UE207/YA | 35 | 72 | 38.9 | 20 |
| UE208 | 40 | 80 | 43.7 | 22 |
| UE208/YA | 40 | 80 | 43.7 | 21 |
| UE209 | 45 | 85 | 43.7 | 22 |
| UE210 | 50 | 90 | 43.7 | 22 |
| UE211 | 55 | 100 | 48.4 | 25 |
| UE212 | 60 | 110 | 53.1 | 27 |
