Insert Bearings UK series
The UK series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UK series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment…
Product Description
The UK series features superfinished raceways, grade-10 balls for smooth running and low noise operation. UK series wide inner ring ball bearings have spherical outside diameters for use in housings with corresponding spherical inside surfaces to compensate for shaft misalignment.

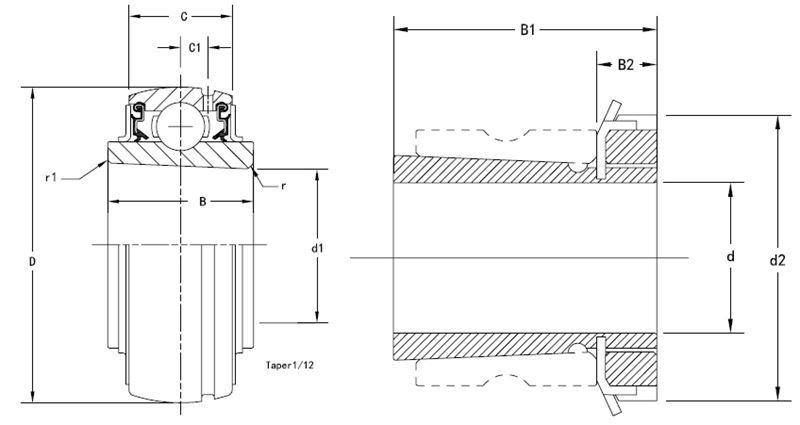

| Bearing NO. | d mm | D mm | B mm | C mm |
| UK205 | 25 | 52 | 26 | 17 |
| UK206 | 30 | 62 | 28 | 19 |
| UK207 | 35 | 72 | 30 | 20 |
| UK208 | 40 | 80 | 31 | 21 |
| UK209 | 45 | 85 | 33 | 22 |
| UK210 | 50 | 90 | 35 | 24 |
| UK211 | 55 | 100 | 39 | 25 |
| UK212 | 60 | 110 | 41 | 27 |
| UK213 | 65 | 120 | 41.5 | 27 |
| UK215 | 75 | 130 | 44 | 30 |
| UK216 | 80 | 140 | 48 | 33 |
| UK217 | 85 | 150 | 50 | 36 |
| UK218 | 90 | 160 | 51 | 37 |
| UK305 | 25 | 62 | 27 | 21 |
| UK306 | 30 | 72 | 30 | 23 |
| UK307 | 35 | 80 | 34 | 25 |
| UK308 | 40 | 90 | 36 | 27 |
| UK309 | 45 | 100 | 39 | 30 |
| UK310 | 50 | 110 | 42 | 32 |
| UK311 | 55 | 120 | 44 | 34 |
| UK312 | 60 | 130 | 48 | 36 |
| UK313 | 65 | 140 | 49 | 38 |
| UK314 | 70 | 170 | 52 | 39 |
| UK315 | 75 | 160 | 56 | 42 |
| UK316 | 80 | 170 | 58 | 44 |
| UK317 | 85 | 180 | 61 | 46 |
| UK318 | 90 | 190 | 66 | 48 |
| UK319 | 95 | 200 | 67 | 50 |
| UK320 | 100 | 215 | 74 | 54 |
| UK322 | 110 | 240 | 82 | 60 |
| UK324 | 120 | 260 | 86 | 64 |
| UK326 | 130 | 280 | 90 | 68 |
| UK328 | 140 | 300 | 95 | 73 |
| UK205+H2305 | 20 | 52 | 35 | 17 |
| UK206+H2306 | 25 | 62 | 38 | 19 |
| UK207+H2307 | 30 | 72 | 43 | 20 |
| UK208+H2308 | 35 | 80 | 46 | 21 |
| UK209+H2309 | 40 | 85 | 50 | 22 |
| UK210+H2310 | 45 | 90 | 55 | 24 |
| UK211+H2311 | 50 | 100 | 59 | 25 |
| UK212+H2312 | 55 | 110 | 62 | 27 |
| UK213+H2313 | 60 | 120 | 65 | 27 |
| UK215+H2315 | 65 | 130 | 73 | 30 |
| UK216+H2316 | 70 | 140 | 78 | 33 |
| UK217+H2317 | 75 | 150 | 82 | 36 |
| UK218+H2318 | 80 | 160 | 86 | 37 |
| UK305+H2305 | 20 | 62 | 35 | 21 |
| UK306+H2306 | 25 | 72 | 38 | 23 |
| UK307+H2307 | 30 | 80 | 43 | 25 |
| UK308+H2308 | 35 | 90 | 46 | 27 |
| UK309+H2309 | 40 | 100 | 50 | 30 |
| UK310+H2310 | 45 | 110 | 55 | 32 |
| UK311+H2311 | 50 | 120 | 59 | 34 |
| UK312+H2312 | 55 | 130 | 62 | 36 |
| UK313+H2313 | 60 | 140 | 65 | 33 |
| UK315+H2315 | 65 | 160 | 73 | 42 |
| UK316+H2316 | 70 | 170 | 78 | 44 |
| UK317+H2317 | 75 | 180 | 82 | 46 |
| UK318+H2318 | 80 | 190 | 86 | 48 |
| UK319+H2319 | 85 | 200 | 90 | 50 |
| UK320+H2320 | 90 | 215 | 97 | 54 |
| UK322+H2322 | 100 | 240 | 105 | 60 |
| UK324+H2324 | 110 | 260 | 112 | 64 |
| UK326+H2326 | 115 | 280 | 121 | 68 |
| UK328+H2328 | 125 | 300 | 131 | 73 |
