LMF&LMK&LMH Flange series

FNL cast flanged,  They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance.  FNL housings are supplied with a cover either for shaft ends (suffix A) or for though shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange…

Get A Quote

Product Description

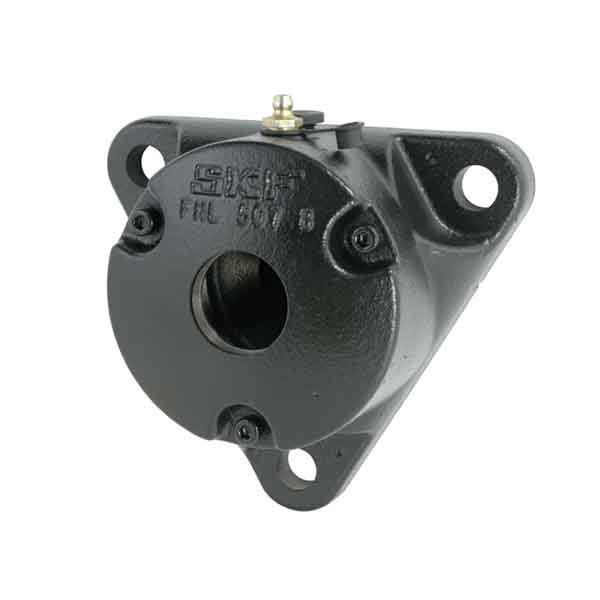

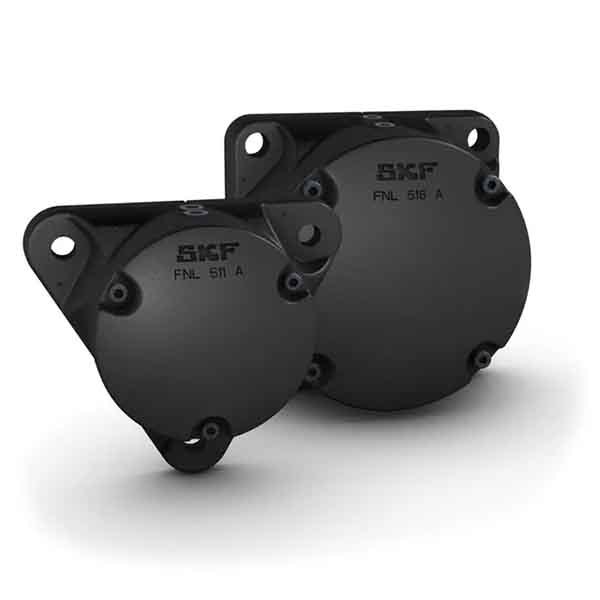

FNL cast flanged,  They enable the full service life potential of the incorporated bearings to be exploited with less need for maintenance.  FNL housings are supplied with a cover either for shaft ends (suffix A) or for though shafts (suffix B). Smaller sizes (up to and including size 13) have a triangular flange, larger sizes have a square flange.

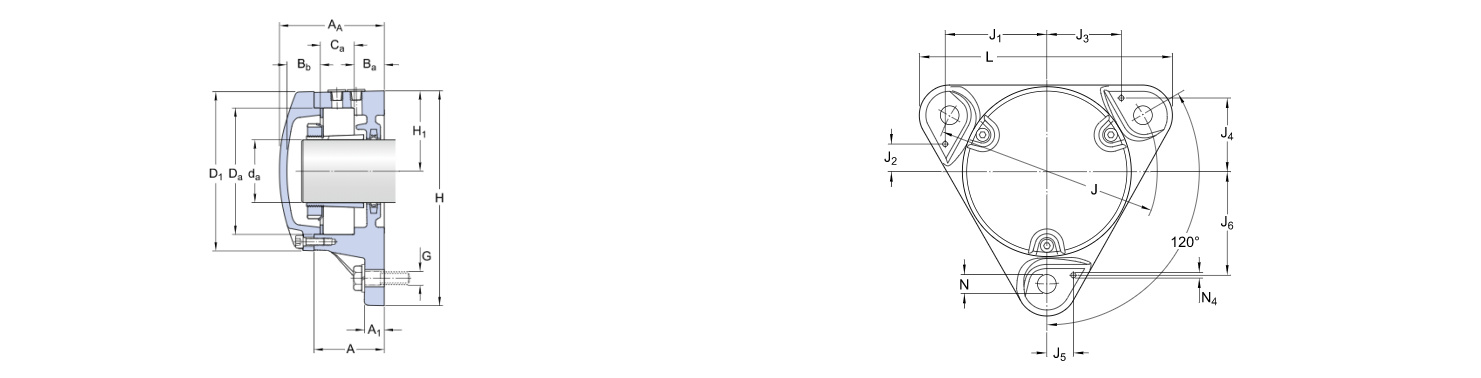

Bearing NO. da mm Aa, Ab mm h mm h1 mm L mm
FNL 511 B + C 2211 K + H 311 E 50 82 172.5 65 192
FNL 512 A + 1212 K + H 212 55 85 189 72 210
FNL 512 A + 22212 K + H 312 55 85 189 72 210
FNL 512 A + C 2212 K + H 312 E 55 85 189 72 210
FNL 512 B + 1212 K + H 212 55 83 189 72 210
FNL 512 B + 2212 K + H 312 55 83 189 72 210
FNL 512 B + 22212 K + H 312 55 83 189 72 210
FNL 512 B + C 2212 K + H 312 E 55 83 189 72 210
FNL 506 A + C 2206 K + H 306 E 25 60.5 117 44 130
FNL 506 B + 1206 K + H 206 25 60 117 44 130
FNL 506 B + 2206 K + H 306 25 60 117 44 130
FNL 506 B + 22206 K + H 306 25 60 117 44 130
FNL 506 B + C 2206 K + H 306 E 25 60 117 44 130
FNL 507 A + 1207 K + H 207 30 64.5 130 48.5 145
FNL 510 A + 1210 K + H 210 45 77 160 60 179
FNL 510 A + 2210 K + H 310 45 77 160 60 179
FNL 510 A + 22210 K + H 310 45 77 160 60 179
FNL 510 A + C 2210 K + H 310 E 45 77 160 60 179
FNL 510 B + 1210 K + H 210 45 75 160 60 179
FNL 510 B + 2210 K + H 310 45 75 160 60 179
FNL 510 B + 22210 K + H 310 45 75 160 60 179
FNL 510 B + C 2210 K + H 310 E 45 75 160 60 179
FNL 507 A + 2207 K + H 307 30 64.5 130 48.5 145
FNL 507 A + 22207 K + H 307 30 64.5 130 48.5 145
FNL 507 A + C 2207 K + H 307 E 30 64.5 130 48.5 145
FNL 507 B + 1207 K + H 207 30 64 130 48.5 145
FNL 507 B + 2207 K + H 307 30 64 130 48.5 145
FNL 507 B + 22207 K + H 307 30 64 130 48.5 145
FNL 507 B + C 2207 K + H 307 E 30 64 130 48.5 145
FNL 508 A + 1208 K + H 208 35 67 143 54 160
FNL 505 A + 1205 K + H 205 20 57 100 38 110
FNL 505 A + 2205 K + H 305 20 57 100 38 110
FNL 505 A + 22205 K + H 305 20 57 100 38 110
FNL 505 B + 1205 K + H 205 20 56.5 100 38 110
FNL 505 B + 2205 K + H 305 20 56.5 100 38 110
FNL 505 B + 22205 K + H 305 20 56.5 100 38 110
FNL 506 A + 1206 K + H 206 25 60.5 117 44 130
FNL 506 A + 2206 K + H 306 25 60.5 117 44 130
FNL 506 A + 22206 K + H 306 25 60.5 117 44 130
FNL 508 A + 2208 K + H 308 35 67 143 54 160
FNL 508 A + 22208 K + H 308 35 67 143 54 160
FNL 508 A + C 2208 K + H 308 E 35 67 143 54 160
FNL 508 B + 1208 K + H 208 35 66 143 54 160
FNL 508 B + 2208 K + H 308 35 66 143 54 160
FNL 508 B + 22208 K + H 308 35 66 143 54 160
FNL 508 B + C 2208 K + H 308 E 35 66 143 54 160
FNL 509 A + 1209 K + H 209 40 72 160 60 179
FNL 509 A + 2209 K + H 309 40 72 160 60 179
FNL 509 A + 22209 K + H 309 40 72 160 60 179
FNL 509 A + C 2209 K + H 309 E 40 72 160 60 179
FNL 509 B + 1209 K + H 209 40 70.5 160 60 179
FNL 509 B + 2209 K + H 309 40 70.5 160 60 179
FNL 509 B + 22209 K + H 309 40 70.5 160 60 179
FNL 509 B + C 2209 K + H 309 E 40 70.5 160 60 179
FNL 511 A + 1211 K + H 211 50 84 172.5 65 192
FNL 511 A + 2211 K + H 311 50 84 172.5 65 192
FNL 511 A + 22211 K + H 311 50 84 172.5 65 192
FNL 511 A + C 2211 K + H 311 E 50 84 172.5 65 192
FNL 511 B + 1211 K + H 211 50 82 172.5 65 192
FNL 511 B + 2211 K + H 311 50 82 172.5 65 192
FNL 511 B + 22211 K + H 311 50 82 172.5 65 192
FNL 513 A + 1213 K + H 213 60 88 203 78 225
FNL 513 A + 2213 K + H 313 60 88 203 78 225
FNL 513 A + 22213 K + H 313 60 88 203 78 225
FNL 513 A + C 2213 K + H 313 E 60 88 203 78 225
FNL 513 B + 1213 K + H 213 60 86 203 78 225
FNL 513 B + 2213 K + H 313 60 86 203 78 225
FNL 513 B + 22213 K + H 313 60 86 203 78 225
FNL 513 B + C 2213 K + H 313 E 60 86 203 78 225
FNL 515 A + 1215 K + H 215 65 106 190 95 190
FNL 515 A + 2215 K + H 315 65 106 190 95 190
FNL 515 A + 22215 K + H 315 65 106 190 95 190
FNL 515 A + C 2215 K + H 315 E 65 106 190 95 190
FNL 515 B + 1215 K + H 215 65 104 190 95 190
FNL 515 B + 2215 K + H 315 65 104 190 95 190
FNL 515 B + 22215 K + H 315 65 104 190 95 190
FNL 515 B + C 2215 K + H 315 E 65 104 190 95 190
FNL 516 A + 1216 K + H 216 70 113 196 98 196
FNL 516 A + 2216 K + H 316 70 113 196 98 196
FNL 516 A + 22216 K + H 316 70 113 196 98 196
FNL 516 A + C 2216 K + H 316 E 70 113 196 98 196
FNL 516 B + 1216 K + H 216 70 110 196 98 196
FNL 516 B + 2216 K + H 316 70 110 196 98 196
FNL 516 B + 22216 K + H 316 70 110 196 98 196
FNL 516 B + C 2216 K + H 316 E 70 110 196 98 196
FNL 517 A + 1217 K + H 217 75 117.5 210 105 210
FNL 517 A + 2217 K + H 317 75 117.5 210 105 210
FNL 517 A + 22217 K + H 317 75 117.5 210 105 210
FNL 517 A + C 2217 K + H 317 E 75 117.5 210 105 210
FNL 517 B + 1217 K + H 217 75 115 210 105 210
FNL 517 B + 2217 K + H 317 75 115 210 105 210
FNL 517 B + 22217 K + H 317 75 115 210 105 210
FNL 517 B + C 2217 K + H 317 E 75 115 210 105 210
FNL 518 A + 1218 K + H 218 80 121 210 105 210
FNL 518 A + 2218 K + H 318 80 121 210 105 210
FNL 518 A + 22218 K + H 318 80 121 210 105 210
FNL 518 A + C 2218 K + H 318 E 80 121 210 105 210
FNL 518 B + 1218 K + H 218 80 118 210 105 210
FNL 518 B + 2218 K + H 318 80 118 210 105 210
FNL 518 B + 22218 K + H 318 80 118 210 105 210
FNL 518 B + C 2218 K + H 318 E 80 118 210 105 210
FNL 520 A + 1220 K + H 220 90 130 250 125 250
FNL 520 A + 2220 K + H 320 90 130 250 125 250
FNL 520 A + 22220 K + H 320 90 130 250 125 250
FNL 520 A + C 2220 K + H 320 E 90 130 250 125 250
FNL 520 B + 1220 K + H 220 90 127 250 125 250
FNL 520 B + 2220 K + H 320 90 127 250 125 250
FNL 520 B + 22220 K + H 320 90 127 250 125 250
FNL 520 B + C 2220 K + H 320 E 90 127 250 125 250
FNL 522 A + 1222 K + H 222 100 140 270 135 270
FNL 522 A + 2222 K + H 322 100 140 270 135 270
FNL 522 A + 22222 K + H 322 100 140 270 135 270
FNL 522 A + C 2222 K + H 322 E 100 140 270 135 270
FNL 522 B + 1222 K + H 222 100 137 270 135 270
FNL 522 B + 2222 K + H 322 100 137 270 135 270
FNL 522 B + 22222 K + H 322 100 137 270 135 270
FNL 522 B + C 2222 K + H 322 E 100 137 270 135 270
