LMF&LMK&LMH Flange series

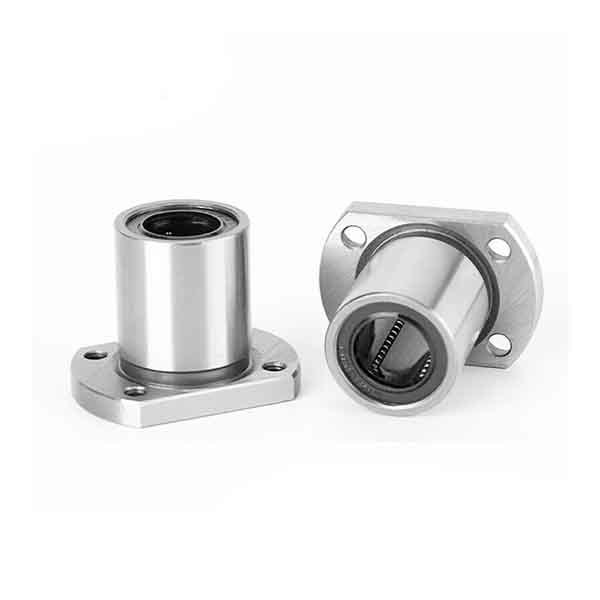

LMF LMK LMH LME/FLUU(long motion bearings) Linear Bearing Bushing with Round/Square/oval Flange. These bearings have the flange to allow fitting into housings flush against the shoulder of the flange. The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing…
Product Description
LMF LMK LMH LME/FLUU(long motion bearings) Linear Bearing Bushing with Round/Square/oval Flange.
These bearings have the flange to allow fitting into housings flush against the shoulder of the flange.
The shields serve to offer protection to prevent ingress of debris and dust whilst retaining the grease within the bearing.
| Bearing NO. | d（mm） | D（mm） | L（mm） | ||||
| LMK6UU | LMH6UU | LMF/KH 6UU | 6 | 12 | 19 | ||
| LMK8SUU | LMF/K8SUU | 8 | 15 | 17 | |||
| LMK8UU | LMH8UU | LMMF/K/H 8UU | LMEF8UU | LMEK8UU | 8 | 15 | 24 |
| LMK 10UU | LMH10UU | LMF/K/H10UU | 10 | 19 | 29 | ||
| LMK 12UU | LMH12UU | LMF/K/H12UU | LMEF12UU | LMEK12UU | 12 | 21 | 30 |
| LMK13UU | LMH13UU | LMF/K/H13UU | 13 | 23 | 32 | ||
| LMK16UU | LMH16UU | LMF/K/H 16UU | LMEF16UU | LMEK16UU | 16 | 28 | 37 |
| LMK20UU | LMH20UU | LMF/K/H20UU | LMEF20UU | LMEK20UU | 20 | 32 | 42 |
| LMK25UU | LMH25UU | LMF/ICH25UU | LMEF25UU | LMEK25UU | 25 | 40 | 59 |
| LMK 30UU | LMH 30UU | LMMF/K/H30UU | LMEF30UU | LMEK30UU | 30 | 45 | 64 |
| LMK35UU | LMF/ICH35UU | 35 | 52 | 70 | |||
| LMK40UU | LMF/K/H40UU | LMEF40UU | LMEK40UU | 40 | 60 | 80 | |
| LMK 50UU | LMF/K/H 50UU | LMEF50UU | LMEK50UU | 50 | 80 | 100 | |
| LMK60UU | LMF/K/H60UU | LMEF60UU | LMEK60UU | 60 | 90 | 110 | |
| LMK80UU | LMMF/K/H 80UU | 80 | 100 | 120 | |||
| LMK 100UU | LMF/K/H 100UU | 100 | 120 | 140 | |||
| long linear motion bearing | |||||||
| LMF6LUU | LMK6LUU | LMH6LUU | LMF/K/H6LUU | ||||
| LMF8LUU | LMK8LUU | LMH8LUU | LMF/KA8LUU | LMEF/K8LUU | 8 | 15 | 45 |
| LMF10LUU | LMK10LUU | LMH10LUU | LMF/K/H 10LUU | 10 | 19 | 55 | |
| LMF12LUU | LMK12LUU | LMH12LUU | LMF/K/H 12LUU | LMEF/K12LUU | 12 | 21 | 57 |
| LMF13LUU | LMK13LUU | LMH13LUU | LMF/K/H 13LUU | 13 | 23 | 61 | |
| LMF16LUU | LMK16LUU | LMH16LUU | LMF/K/H 16LUU | LMEF/K16LUU | 16 | 28 | 70 |
| LMF20LUU | LMK20LUU | LMH20LUU | LMF/K/H 20LUU | LMEF/K20LUU | 20 | 32 | 80 |
| LMF25LUU | LMK25LUU | LMH25LUU | LMF/K/H 25LUU | LMEF/K25LUU | 25 | 40 | 112 |
| LMF30LUU | LMK30LUU | LMH30LUU | LMF/K/H 30LUU | LMEF/K30LUU | 30 | 45 | 123 |
| LMF35LUU | LMK35LUU | LMF/K/H 35LUU | |||||
| LMF40LUU | LMK40LUU | LMFWH40LUU | LMEF/K 40LUU | 40 | 60 | 151 | |
| LMF50LUU | LMK50LUU | LMF/K/H 50LUU | LMEF/K 50LUU | 50 | 80 | 192 | |
| LMF60LUU | LMK60LUU | LMF/K/H 60LUU | LMEF/K 60LUU | 60 | 90 | 209 | |
