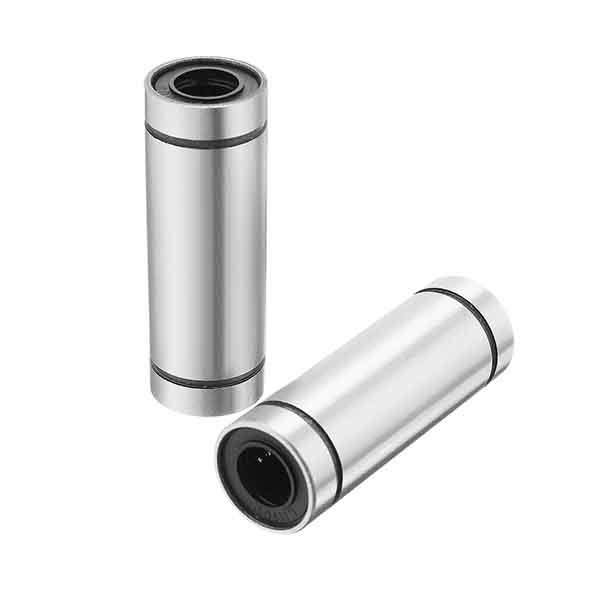

LM(LUU) series
LM UU series is A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease…
Product Description
LM UU series is A special synthetic rubber seal is incorporated into both ends or either end of the linear bush, thus to prevent foreign matter from entering the linear bush and minimize leaking of the grease.

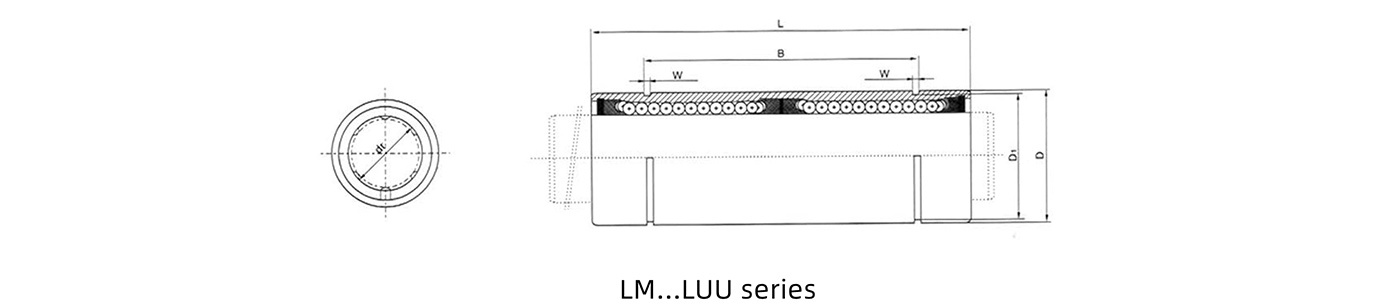

| Bearing NO. | Dimensions(mm) | |||
| dr | D | L | ||
| LM3 | LM3UU | 3 | 7 | 10 |
| LM4 | LM4UU | 4 | 8 | 12 |
| LM5 | LM5UU | 5 | 10 | 15 |
| LM6 | LM6UU | 6 | 12 | 19 |
| LM8S | LM8SUU | 8 | 15 | 17 |
| LM8 | LM8UU | 8 | 15 | 24 |
| LM10 | LM10UU | 10 | 19 | 29 |
| LM12 | LM12UU | 12 | 21 | 30 |
| LM16 | LM16UU | 16 | 28 | 37 |
| LM20 | LM20UU | 20 | 32 | 42 |
| LM25 | LM25UU | 25 | 40 | 59 |
| LM30 | LM30UU | 30 | 45 | 64 |
| LM35 | LM35UU | 35 | 52 | 70 |
| LM40 | LM40UU | 40 | 60 | 80 |
| LM50 | LM50UU | 50 | 80 | 100 |
| LM60 | LM60UU | 60 | 90 | 110 |
