PHS (A) series

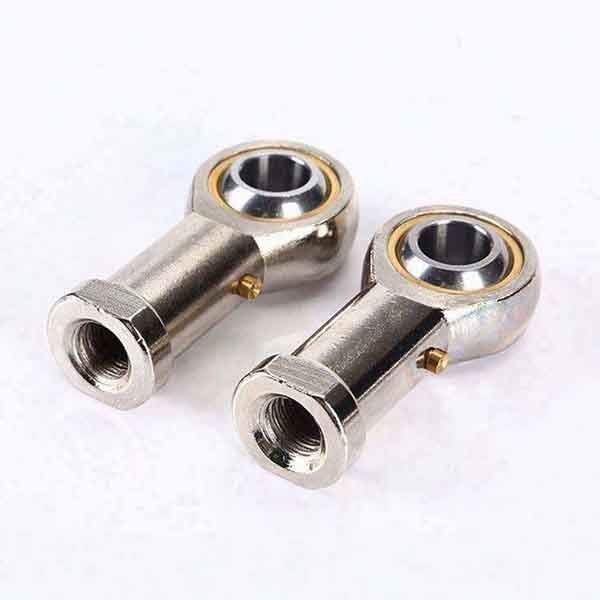

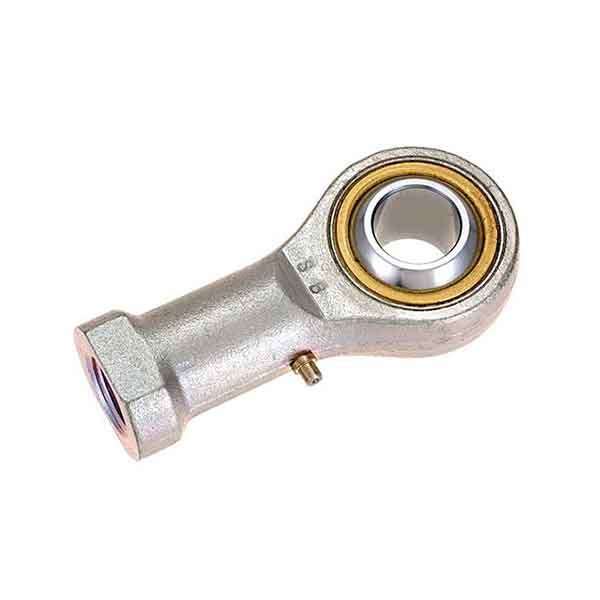

PHS（A) is a bearing with wear resistance, corrosion resistance and rigidity, with special copper alloy bushing embedded between the joint inner ring treated with chromium plating and the main body treated with zinc chromate. PHS has internal thread on the main body…
Product Description
PHS（A) is a bearing with wear resistance, corrosion resistance and rigidity, with special copper alloy bushing embedded between the joint inner ring treated with chromium plating and the main body treated with zinc chromate. PHS has internal thread on the main body,

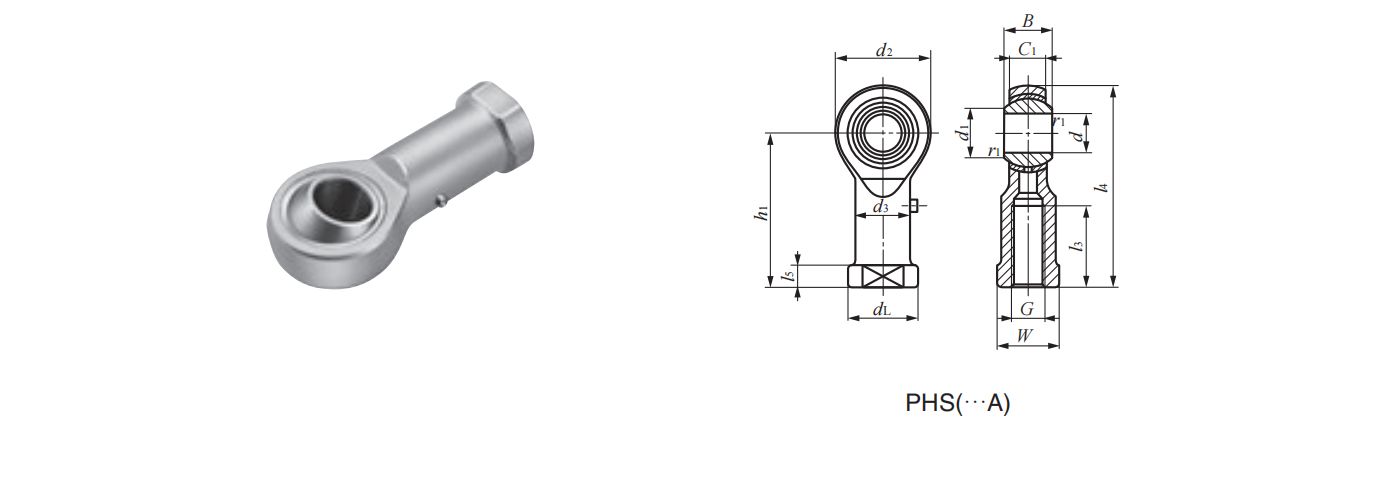

| Bearing NO. | d | G | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d₃ | dL | r1 | Ball dia. （mm） |
| PHS 3 | 3 | M 3×0.5 | 12 | 4.5 | 6 | 5.2 | 27 | 21 | 10 | 3 | 5.5 | 5 | 6.5 | 0.2 | 7.938 |
| PHS 4 | 4 | M 4×0.7 | 14 | 5.3 | 7 | 6.5 | 31 | 24 | 12 | 4 | 8 | 8 | 9.5 | 0.2 | 9.525 |
| PHS 5A | 5 | M 5×0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 14 | 4 | 9 | 9 | 11 | 0.2 | 11.112 |
| PHS 6A | 6 | M 6×1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 14 | 5 | 11 | 10 | 13 | 0.2 | 12.700 |
| PHS 8A | 8 | M 8X1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 17 | 5 | 14 | 12.5 | 16 | 0.2 | 15.875 |
| PHS 10A | 10 | M10×1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 6.5 | 17 | 15 | 19 | 0.2 | 19.050 |
| PHS 12A | 12 | M12×1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 6.5 | 19 | 17.5 | 22 | 0.2 | 22.225 |
| PHS 14A | 14 | M14×2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 8 | 22 | 20 | 25 | 0.2 | 25.400 |
| PHS 16A | 16 | M16×2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 8 | 22 | 22 | 27 | 0.2 | 28.575 |
| PHS 18A | 18 | M18×1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 10 | 27 | 25 | 31 | 0.2 | 31.750 |
| PHS 20 | 20 | M20×1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 10 | 30 | 27.5 | 34 | 0.2 | 34.925 |
| PHS 22 | 22 | M22×1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 43 | 12 | 32 | 30 | 37 | 0.2 | 38.100 |
| PHS 25 | 25 | M24×2 | 60 | 22 | 31 | 29.6 | 124 | 94 | 48 | 12 | 36 | 33.5 | 42 | 0.6 | 42.862 |
| PHS 28 | 28 | M27×2 | 66 | 25 | 35 | 32.3 | 136 | 103 | 53 | 12 | 41 | 37 | 46 | 0.6 | 47.625 |
| PHS 30 | 30 | M30×2 | 70 | 25 | 37 | 34.8 | 145 | 110 | 56 | 15 | 41 | 40 | 50 | 0.6 | 50.800 |
