PHS (EC) series
PHS(EC) is treated with zinc chromate, and the joint inner ring is plated with chromium after hardening and finishing, which improves the corrosion resistance. The main body is bonded with a special PTFE liner reinforced with copper alloy mesh, so the sliding face of the load has less creep, and it is a maintenance-free joint bearing with excellent wear resistance…
Product Description
PHS(EC) is treated with zinc chromate, and the joint inner ring is plated with chromium after hardening and finishing, which improves the corrosion resistance. The main body is bonded with a special PTFE liner reinforced with copper alloy mesh, so the sliding face of the load has less creep, and it is a maintenance-free joint bearing with excellent wear resistance. PHS… EC is an internal thread on the main body

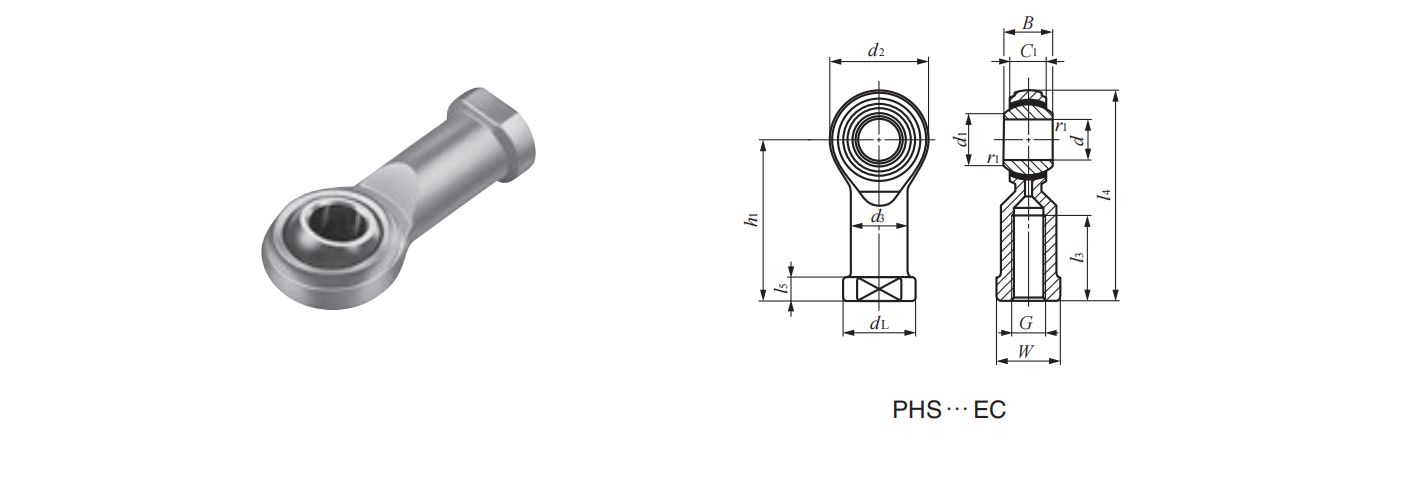

| Bearing NO. | d | G | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | r1 | Ball dia. (mm) |
| PHS 3EC | 3 | M 3×0.5 | 12 | 4.5 | 6 | 5.2 | 27 | 21 | 10 | 3 | 5.5 | 5 | 6.5 | 0.2 | 7.938 |
| PHS 4EC | 4 | M 4×0.7 | 14 | 5.3 | 7 | 6.5 | 31 | 24 | 12 | 4 | 8 | 8 | 9.5 | 0.2 | 9.525 |
| PHS 5EC | 5 | M 5×0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 12.5 | 4 | 9 | 9 | 11 | 0.2 | 11.112 |
| PHS 6EC | 6 | M 6×1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 13.5 | 5 | 11 | 10 | 13 | 0.2 | 12.700 |
| PHS 8EC | 8 | M 8×1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 16 | 5 | 14 | 12.5 | 16 | 0.2 | 15.875 |
| PHS 10EC | 10 | M10×1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 19.5 | 6.5 | 17 | 15 | 19 | 0.2 | 19.050 |
| PHS 12EC | 12 | M12×1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 6.5 | 19 | 17.5 | 22 | 0.2 | 22.225 |
| PHS 14EC | 14 | M14×2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 8 | 22 | 20 | 25 | 0.2 | 25.400 |
| PHS 16EC | 16 | M16×2 | 38 | 15 | 21 | 19.4 | k] | 64 | 33 | 8 | 22 | 22 | 27 | 0.2 | 28.575 |
| PHS 18EC | 18 | M18×1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 10 | 27 | 25 | 31 | 0.2 | 31.750 |
| PHS 20EC | 20 | M20×1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 10 | 30 | 27.5 | 34 | 0.2 | 34.925 |
| PHS 22EC | 22 | M22×1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 41 | 12 | 32 | 30 | 37 | 0.2 | 38.100 |
