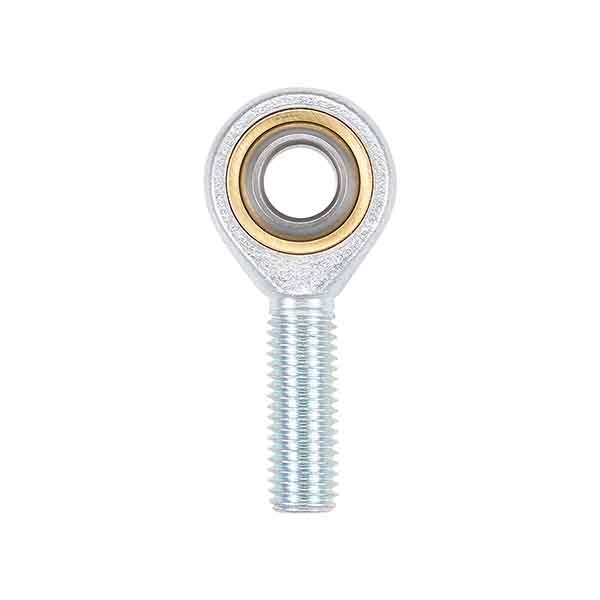

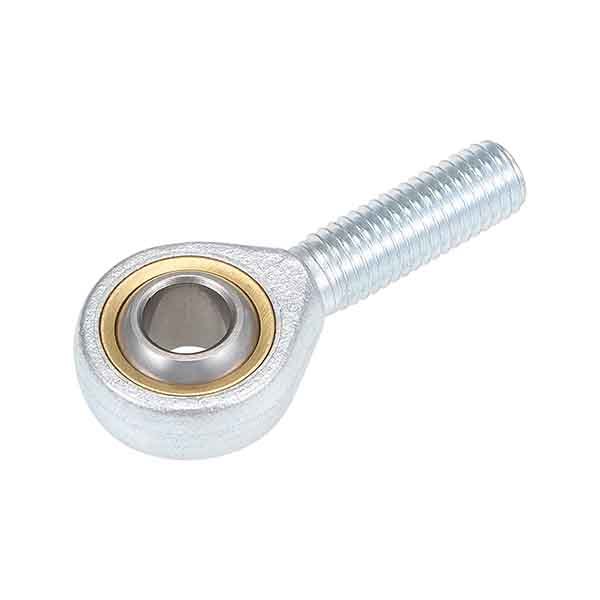

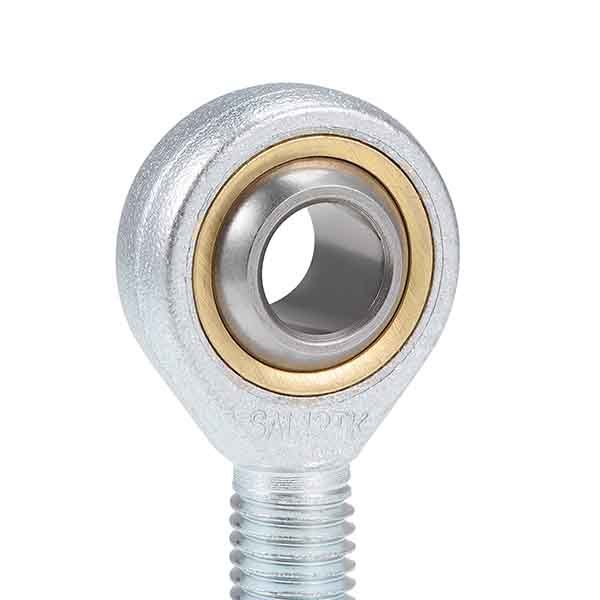

POS (EC) series
The POS(EC) body is treated with zinc chromate, and the joint inner ring is plated with chromium after quenching and hardening, which improves the corrosion resistance. The main body is bonded with a special PTFE liner reinforced with copper alloy mesh, so the sliding face of the load has less creep, and it is a maintenance-free joint bearing with excellent wear resistance…
Product Description
The POS(EC) body is treated with zinc chromate, and the joint inner ring is plated with chromium after quenching and hardening, which improves the corrosion resistance. The main body is bonded with a special PTFE liner reinforced with copper alloy mesh, so the sliding face of the load has less creep, and it is a maintenance-free joint bearing with excellent wear resistance. POS… EC has external threads on the main body.

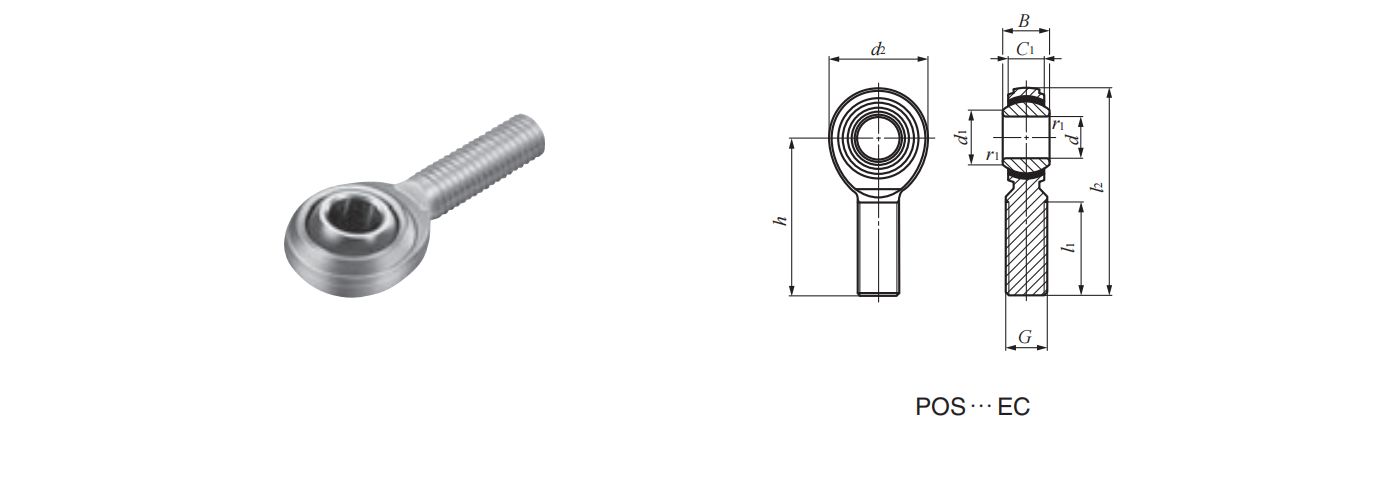

| Bearing NO. | d | G | d2 | C1 | B | d1 | l2 | h | l1 | r1 | Ball dia. mm |
| POS 3EC | 3 | M 3×0.5 | 12 | 4.5 | 6 | 5.2 | 33 | 27 | 15 | 0.2 | 7.938 |
| POS 4EC | 4 | M 4×0.7 | 14 | 5.3 | 7 | 6.5 | 37 | 30 | 17 | 0.2 | 9.525 |
| POS 5EC | 5 | M 5×0.8 | 16 | 6 | 8 | 7.7 | 41 | 33 | 20 | 0.2 | 11.112 |
| POS 6EC | 6 | M 6×1 | 18 | 6.75 | 9 | 9 | 45 | 36 | 22 | 0.2 | 12.700 |
| POS 8EC | 8 | M 8×1.25 | 22 | 9 | 12 | 10.4 | 53 | 42 | 25 | 0.2 | 15.875 |
| POS 10EC | 10 | M10×1.5 | 26 | 10.5 | 14 | 12.9 | 61 | 48 | 29 | 0.2 | 19.050 |
| POS 12EC | 12 | M12×1.75 | 30 | 12 | 16 | 15.4 | 69 | 54 | 33 | 0.2 | 22.225 |
| POS 14EC | 14 | M14×2 | 34 | 13.5 | 19 | 16.9 | 77 | 60 | 36 | 0.2 | 25.400 |
| POS 16EC | 16 | M16×2 | 38 | 15 | 21 | 19.4 | 85 | 66 | 40 | 0.2 | 28.575 |
| POS 18EC | 18 | M18×1.5 | 42 | 16.5 | 23 | 21.9 | 93 | 72 | 44 | 0.2 | 31.750 |
| POS 20EC | 20 | M20×1.5 | 46 | 18 | 25 | 24.4 | 101 | 78 | 47 | 0.2 | 34.925 |
| POS 22EC | 22 | M22×1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 51 | 0.2 | 38.100 |
