RA Series Crossed Roller Bearing
A compact type similar to model RB with the thinnest possible inner and outer rings. Optimal for locations requiring a light-weight and compact design such as the swivel portions of robots and manipulators…
Product Description

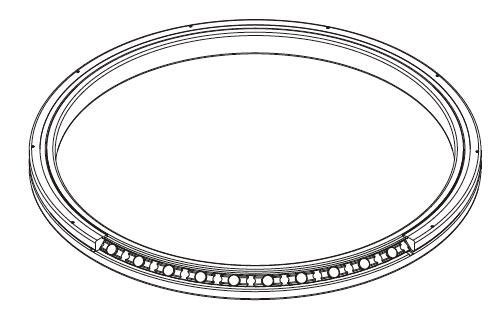

Model RA-Separable Outer Ring Type for Inner Ring Rotation
A compact type similar to model RB with the thinnest possible inner and outer rings. Optimal for locations requiring a light-weight and compact design such as the swivel portions of robots and manipulators.
| Bearing Number | Dimensions | ||
| d mm | D mm | B mm | |
| RA5008 | 50 | 66 | 8 |
| RA6008 | 60 | 76 | 8 |
| RA7008 | 70 | 86 | 8 |
| RA8008 | 80 | 96 | 8 |
| RA9008 | 90 | 106 | 8 |
| RA 10008 | 100 | 116 | 8 |
| RA 11008 | 110 | 126 | 8 |
| RA 12008 | 120 | 136 | 8 |
| RA 13008 | 130 | 146 | 8 |
| RA 14008 | 140 | 156 | 8 |
| RA 15008 | 150 | 166 | 8 |
| RA 16013 | 160 | 186 | 13 |
| RA 17013 | 170 | 196 | 13 |
| RA 18013 | 180 | 206 | 13 |
| RA 19013 | 190 | 216 | 13 |
| RA 20013 | 200 | 226 | 13 |
| RA5008C | 50 | 66 | 8 |
| RA6008C | 60 | 76 | 8 |
| RA7008C | 70 | 86 | 8 |
| RA8008C | 80 | 96 | 8 |
| RA9008C | 90 | 106 | 8 |
| RA 10008C | 100 | 116 | 8 |
| RA 11008C | 110 | 126 | 8 |
| RA 12008C | 120 | 136 | 8 |
| RA 13008C | 130 | 146 | 8 |
| RA 14008C | 140 | 156 | 8 |
| RA 15008C | 150 | 166 | 8 |
| RA 16013C | 160 | 186 | 13 |
| RA 17013C | 170 | 196 | 13 |
| RA 18013C | 180 | 206 | 13 |
| RA 19013C | 190 | 216 | 13 |
| RA 20013C | 200 | 226 | 13 |
