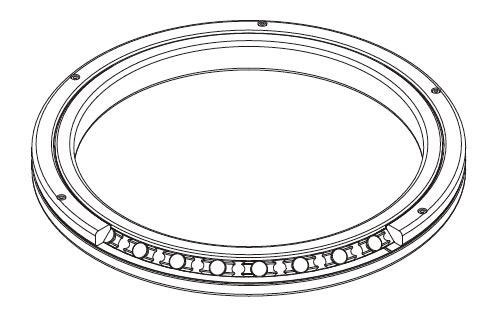

RB Series Crossed Roller Bearing
Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body.It is used in locations where the rotational accuracy of the inner ring is required. It is used, for example, in the swivel portions of index tables of machine tools…
Product Description
Model RB -Separable Outer Ring Type for Inner Ring Rotation
Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body.It is used in locations where the rotational accuracy of the inner ring is required. It is used, for example, in the swivel portions of index tables of machine tools.
| Bearing Number | Dimensions | ||
| d mm | D mm | B mm | |
| RB2008 | 20 | 36 | 8 |
| RB2508 | 25 | 41 | 8 |
| RB3010 | 30 | 55 | 10 |
| RB3510 | 35 | 60 | 10 |
| RB4010 | 40 | 65 | 10 |
| RB4510 | 45 | 70 | 10 |
| RB5013 | 50 | 80 | 13 |
| RB6013 | 60 | 90 | 13 |
| RB7013 | 70 | 100 | 13 |
| RB8016 | 80 | 120 | 16 |
| RB9016 | 90 | 130 | 16 |
| RB10016 | 100 | 140 | 16 |
| RB10020 | 100 | 150 | 20 |
| RB11012 | 110 | 135 | 12 |
| RB11015 | 110 | 145 | 15 |
| RB11020 | 110 | 160 | 20 |
| RB12016 | 120 | 150 | 16 |
| RB12025 | 120 | 180 | 25 |
| RB13015 | 130 | 160 | 15 |
| RB13025 | 130 | 190 | 25 |
| RB14016 | 140 | 175 | 16 |
| RB14025 | 140 | 200 | 25 |
| RB15013 | 150 | 180 | 13 |
| RB15025 | 150 | 210 | 25 |
| RB15030 | 150 | 230 | 30 |
| RB16025 | 160 | 220 | 25 |
| RB17020 | 170 | 220 | 20 |
| RB18025 | 180 | 240 | 25 |
| RB19025 | 190 | 240 | 25 |
| RB20025 | 200 | 260 | 25 |
| RB20030 | 200 | 280 | 30 |
| RB20035 | 200 | 295 | 35 |
| RB22025 | 220 | 280 | 25 |
| RB24025 | 240 | 300 | 25 |
| RB25025 | 250 | 310 | 25 |
| RB25030 | 250 | 330 | 30 |
| RB25040 | 250 | 355 | 40 |
| RB30025 | 300 | 360 | 25 |
| RB30035 | 300 | 395 | 35 |
| RB30040 | 300 | 405 | 40 |
| RB35020 | 350 | 400 | 20 |
| RB40035 | 400 | 480 | 35 |
| RB40040 | 400 | 510 | 40 |
| RB45025 | 450 | 500 | 25 |
| RB50025 | 500 | 550 | 25 |
| RB50040 | 500 | 600 | 40 |
| RB50050 | 500 | 625 | 50 |
| RB60040 | 600 | 700 | 40 |
| RB70045 | 700 | 815 | 45 |
| RB80070 | 800 | 950 | 70 |
| RB90070 | 900 | 1050 | 70 |
| RB1000110 | 1000 | 1250 | 110 |
| RB1250110 | 1250 | 1500 | 110 |
