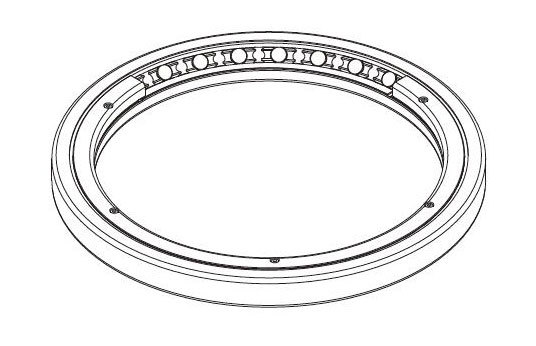

RE Series Crossed Roller Bearing
Model RE -Two-piece Inner Ring Type for Outer Ring Rotation-Main dimensions are the same as model RB. This model is used in locations where the rotational accuracy of the outer ring is required…
Product Description
Model RE -Two-piece Inner Ring Type for Outer Ring Rotation-
Main dimensions are the same as model RB. This model is used in locations where the rotational accuracy of the outer ring is required.
| Bearing Number | Dimensions | ||
| d mm | D mm | B mm | |
| RE2008 | 20 | 36 | 8 |
| RE2508 | 25 | 41 | 8 |
| RE3010 | 30 | 55 | 10 |
| RE3510 | 35 | 60 | 10 |
| RE4010 | 40 | 65 | 10 |
| RE4510 | 45 | 70 | 10 |
| RE5013 | 50 | 80 | 13 |
| RE6013 | 60 | 90 | 13 |
| RE7013 | 70 | 100 | 13 |
| RE8016 | 80 | 120 | 16 |
| RE9016 | 90 | 130 | 16 |
| RE10016 | 100 | 140 | 16 |
| RE10020 | 100 | 150 | 20 |
| RE11012 | 110 | 135 | 12 |
| RE11015 | 110 | 145 | 15 |
| RE11020 | 110 | 160 | 20 |
| RE12016 | 120 | 150 | 16 |
| RE12025 | 120 | 180 | 25 |
| RE13015 | 130 | 160 | 15 |
| RE13025 | 130 | 190 | 25 |
| RE14016 | 140 | 175 | 16 |
| RE14025 | 140 | 200 | 25 |
| RE15013 | 150 | 180 | 13 |
| RE15025 | 150 | 210 | 25 |
| RE15030 | 150 | 230 | 30 |
| RE16025 | 160 | 220 | 25 |
| RE17020 | 170 | 220 | 20 |
| RE18025 | 180 | 240 | 25 |
| RE19025 | 190 | 240 | 25 |
| RE20025 | 200 | 260 | 25 |
| RE20030 | 200 | 280 | 30 |
| RE20035 | 200 | 295 | 35 |
| RE22025 | 220 | 280 | 25 |
| RE24025 | 240 | 300 | 25 |
| RE25025 | 250 | 310 | 25 |
| RE25030 | 250 | 330 | 30 |
| RE25040 | 250 | 355 | 40 |
| RE30025 | 300 | 360 | 25 |
| RE30035 | 300 | 395 | 35 |
| RE30040 | 300 | 405 | 40 |
| RE35020 | 350 | 400 | 20 |
