RK series
The internal configuration is a deep-groove gothic arch raceway, which provides four points of contact with the balls, enabling the bearing to simultaneously carry radial, axial, and moment loads. The use of spacer balls alternated with load balls allows for lower rotational torque and superior performance in applications involving oscillatory movement…
Product Description
Design features
The internal configuration is a deep-groove gothic arch raceway, which provides four points of contact with the balls, enabling the bearing to simultaneously carry radial, axial, and moment loads. The use of spacer balls alternated with load balls allows for lower rotational torque and superior performance in applications involving oscillatory movement. Integral face riding bearing seals are provided to assist in the exclusion of contaminants.

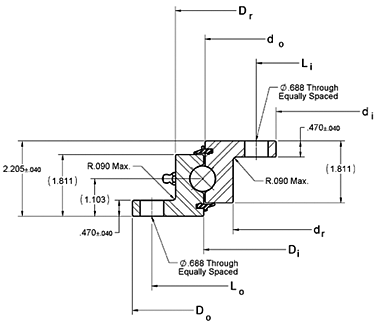

RK series slewing bearings are offered in nongeared, internally geared, and externally geared configurations for maximum design flexibility. The gears are involute stub designs with 20° pressure angles, manufactured to AGMA Class Q5 quality and 0.005 to 0.015 inches allowance for backlash. RK series turntable bearings range in size from 20–47 inches OD (500–1200 mm OD).
Availability
RK series slewing ring bearings are generally available from stock, and mating pinions for the geared versions are also generally available.
Applications
RK series slewing ring bearing solutions have been used successfully in a variety of light- to medium-duty applications including:
- Small cranes, booms, and lifts
- Industrial positioners and rotary tables
- Chute swivels
- Stretch wrapping machines
- Bottle filling machines
- Conveyors and related material handling equipment
- Rotating displays
