RU Series Crossed Roller Bearing
Since holes are drilled for mounting, the need for a presser fl ange and a housing is eliminated. Also, owing to the integrated inner/outer ring type stryucture with washer, there is almost no effect from installation on performance, allowing stable rotational accuracy and torque to be obtained. Can be used for both outer and inner ring rotation…
Product Description

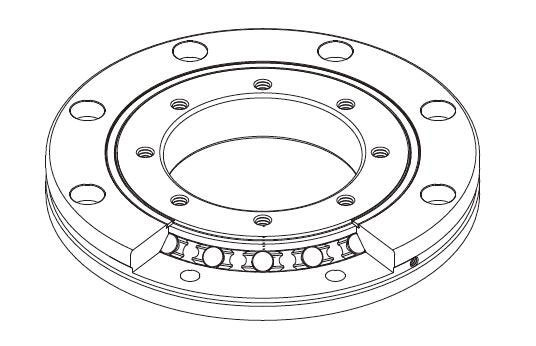

Model RU -Integrated Inner/Outer Ring Type
Since holes are drilled for mounting, the need for a presser fl ange and a housing is eliminated. Also, owing to the integrated inner/outer ring type stryucture with washer, there is almost no effect from installation on performance, allowing stable rotational accuracy and torque to be obtained. Can be used for both outer and inner ring rotation.

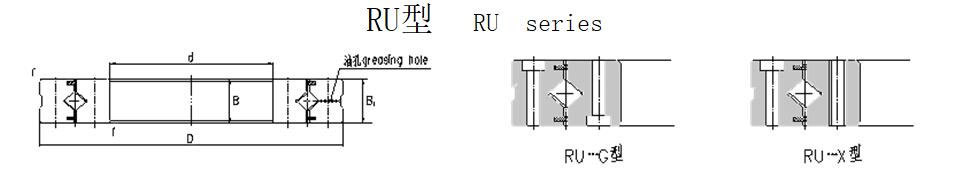

| Bearing Number | Dimensions | ||
| d mm | D mm | B mm | |
| RU42 | 20 | 70 | 12 |
| RU66 | 35 | 95 | 15 |
| RU85 | 55 | 120 | 15 |
| RU124(G) | 80 | 165 | 22 |
| RU124X | 80 | 165 | 22 |
| RU148(G) | 90 | 210 | 25 |
| RU148X | 90 | 210 | 25 |
| RU178(G) | 115 | 240 | 28 |
| RU178X | 115 | 240 | 28 |
| RU228(G) | 160 | 295 | 35 |
| RU228X | 160 | 295 | 35 |
| RU297(G) | 210 | 380 | 40 |
| RU297X | 210 | 380 | 40 |
| RU445(G) | 350 | 540 | 45 |
| RU445(G) | 350 | 540 | 45 |
