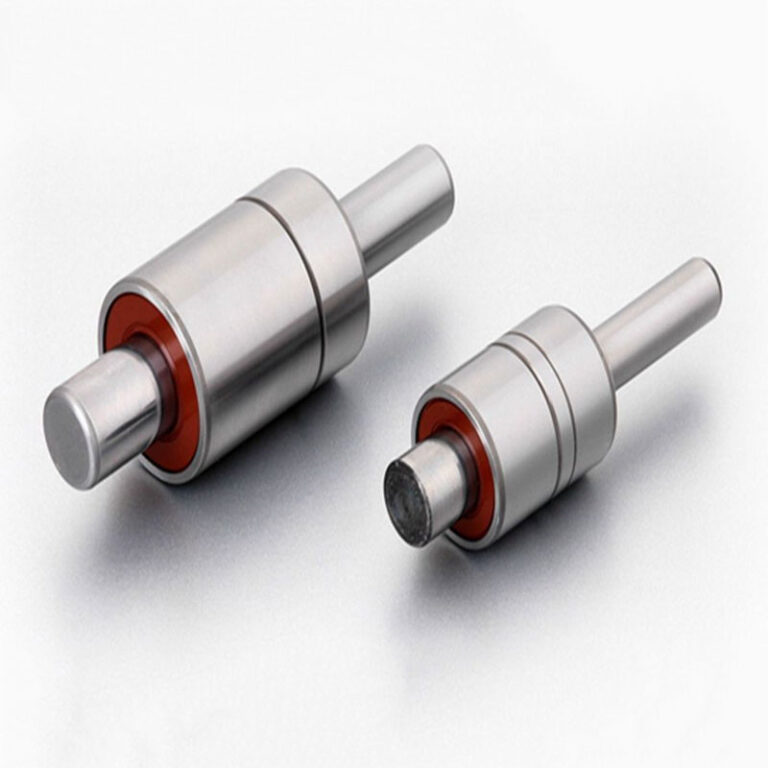

Single Row Ball and Roller Water Pump Bearings – WR Series

BORET Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings…

Get A Quote

Product Description

Product Description

BORET Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump. BORET Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

BORET Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing – WB1630
Double-row ball water pump bearing – WB1940
Double-row ball water pump bearing – WB1938
Double-row ball water pump bearing – WB1226
Double-row ball water pump bearing – WB1224
double-row ball water pump bearings
single-row ball and single roller water pump bearings

Note：Swipe left or right to view the complete table!

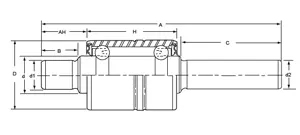

Bearing Designation Boundary Dimensions (mm)
WD D H A AH d d1 d2 B C
WR1230104 58 62.5 152 25 17 62
WR1630079 30 28 79 14 16 12 34.5
WR1630083 30 28 82.7 17.7 16 12 34.5
WR1630084 30 30 84 15.918 12 36.6
WR1630085 30 30 85 17 15.918 12.038 36
WR1630085-1 30 30 85 17 15.918 12 12.038
WR1630087C 30 38.8 86.5 13.5 15.918 12 32.7
WR1630087C-2 30 38.8 86.5 13.5 15.918 12 32.7
WR1630091 30 38.89 91 15.918 12 36
WR1630091-2 30 38.89 90.5 14.81 15.918 12 34.5
WR1630092 30 38.89 92 16 12
WR1630093 30 38.9 93 15.918 12 33
WR1630093-1 30 38.9 93.6 15.918 12 38
WR1630095 30 33.38 95 15.918 12 37
WR1630095-1 30 30 95.5 16.5 15.918 12 46.5
WR1630096 30 38.9 95.5 15.918
WR1630096-2 30 38.9 95.8 15.918 12 38.5
WR1630096-3 30 38.9 96.52 15.918
WR1630096 30 38.9 98 17 15.918
WR1630100 30 46 100 17 16 12 34
WR1630101 30 38.9 101 15.918
WR1630102-2 30 38.9 102.2 15.918 12 37.5
WR1630102-3 30 38.89 101.5 15.918 12.038 41.65
WR1630102C 30 38.9 101.5 15.918
WR1630104 30 38.89 104.5 17.5 15.918 12 12 16 45.5
WR1630105-1 30 39 104.2 16.9 15.918 46.5
WR1630105C 30 38.8 104.5 16.5 15.918 12 48.2
WR1630106 30 38.9 106.2 15.918 12 41.4
WR1630106-1 30 38.9 105.7 17.5 15.918 12 12 16 46.7
WR1630106-2 30 38.89 106 30 15.918 12
WR1630106-3 30 38.9 106.3 15.918 12 39.9
WR1630106C 30 38.89 105.65 16.25 15.918 12 12 14.5 48.15
WR1630107 30 38.89 107 21.5 15.918 12 43
WR1630110 30 38.9 109.5 15.918 12.038 12.038 14 51.5
WR1630110-1 30 38.89 110 15.918
WR1630115-1 30 38.9 115.4 15.918 12 46.1
WR1630117 30 38.89 116.6 15.918
WR1630124 30 38.9 124 35 15.918 12 12 33 48
WR1630133 30 38.89 103.12 15.918
WR1630133 30 38.9 132.7 15.918
WR1630134-1 30 38.89 103.12 27.94 15.918
WR1630136 30 38.9 135.8 15.918 12 61.9
WR1630139 30 38.89 139 23.11 15.918
WR1630148 30 38.89 148 28.48 15.918
WR1635096 35 38.9 96 15.918 12.038 12.038 15 37
WR1635101 35 39 101 25 17.5 15.918 12 23.5 33.8
WR1635101-2 35 39 100.5 24 15.918 12 36
WR1635101A-1 35 39 101 15.918 12 34.8
WR1635103 35 39 103.2 26.5 18 15.918 12 24.5 35.7
WR1635106 35 39 106 42 17.5 15.918 12 28.5 34.8
WR1635112 35 39 112 17.5 15.918 12 41.5 40.5
WR1635123 35 56 122.6 18 12 35.2
WR1635124 35 39 124 30 17.5 15.918 12 39.5 28.5
WR1638099 38.1 41.275 99 19.5 19 15.918 12 17.5 36
WR1638101 38.1 37 101 19 15.918 12 23.2 36.8
WR1638117 38.1 41.3 117.2 19 15.918 47.4
WR1638117-1 38.1 54 117.2 19 15.918 43
WR1638117-2 38.1 41.3 117.2 19 15.918 48
WR1638120 38.1 54 120.7 19 15.918 38.4
WR1638123 38.1 54 123 19 15.918 15.918 13.5 35.5
WR1638125 38.1 54 125.3 19 15.918 40
WR1638126 38.1 54 126 19 15.918 15.918 14 39
WR1638126-1 38.1 54 126 19 15.918 12 26.5 37
WR1638128 38.1 54 127.7 19 15.918 40
WR1638129 38.1 54 128.6 19 15.918 54.5
WR1638129-1 38.1 54 128.7 19 15.918 41.7
WR1638129-3 38.1 54 129 19 15.918 42.1
WR1638133 38.1 54 133 19 15.918 15.918 12 45
WR1638134 38.1 54 134.2 22.4 19 15.918 49.7
WR1638134-1 38.1 54 134 19 15.918 47.5
WR1638135 38.1 54 135 19 15.918 41
WR1638135-1 38.1 54 135 19 15.918 41.4
WR1638136-3 38.1 54 135 19 15.918 56
WR1638136-4 38.1 54 136.5 19 15.918 58.5
WR1638139 38.1 54 139.2 19 15.918 46.5
WR1638145 38.1 54 144.5 19 15.918 46
WR1638151 38.1 54 150.5 19 15.918 15.918 14 49
WR1638154 38.1 54 154.4 21.5 19 15.918 15.918 9.5 57
WR1638155 38.1 54 155.1 19 15.918 9.5 59.7
WR1638157 38.1 54 156.5 19 15.918 15.918 53
WR1638158 38.1 54 158.1 19 15.918 15.918 15 57
WR1638165 38.1 54 165.3 19 15.918 14.3 70.4
WR1638166 38.1 54 166.5 35 19 15.918 64
WR2040105 40 42 105 20 15.918 40.5
WR2040112 40 44 111.5 20 15.918 41
WR2040151 40 50 151 20 16 44
WR2242111 42 46 110.8 22 12 33.8
WR2242115 42 46 115.5 20 13 38.5
WR2242136 42 56 138.5 22 15.918 52.5
WR2247165 47 62.5 165 22 17 55.5
WR2552133 52 52 133 25 15.92 50
WR2552138 52 56 92 25 15.92 50
WR2552138-4 52 56 138 25 15.92 50
WR2552138C 52 56 138 25 15.92 50
WR2552140-1 52 52 140 25 15.92 47
WR2552143 52 56 143 25 15.92 50
WR2552145-1 52 52 145 25 15.92 62
WR2552150 52 56 150 25 15.92 57
WR2552153 52 56 153 25 15.92 54.5
WR2552155 52 70 155 25 15.92 50
WR2552162 52 56 162 25 15.92 59
WR2552163 52 56 163 25 15.92 50
WR2552163-1 52 56 163 25 15.92 50
WR2552164 52 56 164 25 15.92 64
WR2552165 52 56 165 25 15.92 54.5
WR2552165 52 78 165.5 25 15.918 50.5
WR2552208 55 56 208 25 M14 15.92 18 50
WR2555127A 55 60 127 25 15.92 40.9
WR2555145 58 60 145 25 19 15.92 28.5 50
WR3258133 58 52 133 25 15.92 51
WR3258140 58 52 140 25 15.92 51
WR3258155 58 70 155 25 15.918 51
