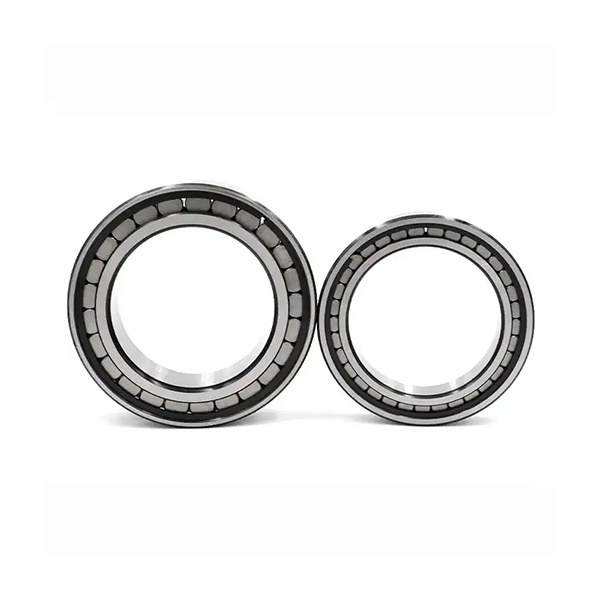

Single Row Full Complement Cylindrical Roller Bearings
Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings…
Product Description
Product Details
Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
Very high radial load carrying capacity
High radial stiffness
Long service life
Locate the shaft axially in one direction

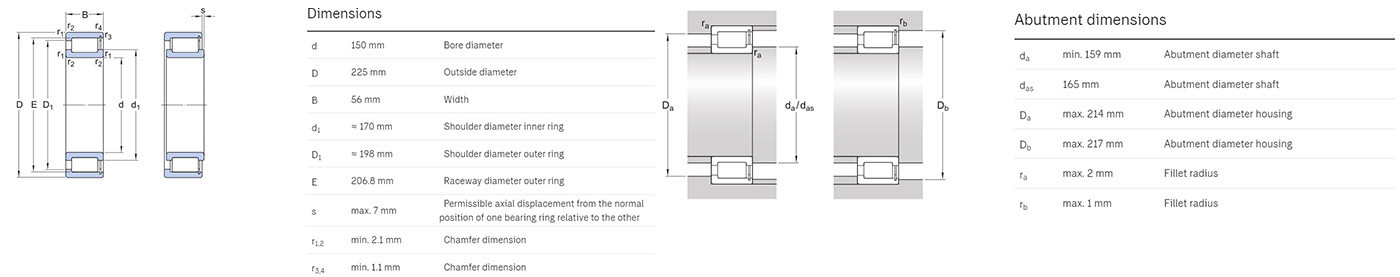

Detailed pictures
Parameter table
| Bearing Number | d mm | D mm | B mm |
| NCF 3004 CV | 20 | 42 | 16 |
| NCF 3005 CV | 25 | 47 | 16 |
| NJG 2305 VH | 25 | 62 | 24 |
| NCF 3006 CV | 30 | 55 | 19 |
| NJG 2306 VH | 30 | 72 | 27 |
| NCF 3007 CV | 35 | 62 | 20 |
| NCF 3008 CV | 40 | 68 | 21 |
| NJG 2308 VH | 40 | 90 | 33 |
| NCF 3009 CV | 45 | 75 | 23 |
| NJG 2309 VH | 45 | 100 | 36 |
| NJG 309 VH | 45 | 100 | 25 |
| NCF 3010 CV | 50 | 80 | 23 |
| NCF 3011 CV | 55 | 90 | 26 |
| NCF 2912 CV | 60 | 85 | 16 |
| NCF 2913 CV | 65 | 90 | 16 |
| NCF 3013 CV | 65 | 100 | 26 |
| NJG 2313 VH | 65 | 140 | 48 |
| NCF 2914 CV | 70 | 100 | 19 |
| NCF 3014 CV | 70 | 110 | 30 |
| NCF 2915 CV | 75 | 105 | 19 |
| NCF 3015 CV | 75 | 115 | 30 |
| NCF 2916 CV | 80 | 110 | 19 |
| NCF 3016 CV | 80 | 125 | 34 |
| NCF 2917 CV | 85 | 120 | 22 |
| NCF 3017 CV | 85 | 130 | 34 |
| NCF 2918 CV | 90 | 125 | 22 |
| NCF 3018 CV | 90 | 140 | 37 |
| NCF 2920 CV | 100 | 140 | 24 |
| NJG 2320 VH | 100 | 215 | 73 |
| NCF 2922 CV | 110 | 150 | 24 |
| NCF 3022 CV | 110 | 170 | 45 |
| NCF 2224V | 120 | 215 | 58 |
| NCF 2924 CV | 120 | 165 | 27 |
| NCF 3024 CV | 120 | 180 | 46 |
| NCF 2926 CV | 130 | 180 | 30 |
| NCF 3026 CV | 130 | 200 | 52 |
| NCF 2928 CV | 140 | 190 | 30 |
| NCF 3028 CV | 140 | 210 | 53 |
| NCF 2930 CV | 150 | 210 | 36 |
| NCF 3030 CV | 150 | 225 | 56 |
| NCF 2932 CV | 160 | 220 | 36 |
| NCF 3032 CV | 160 | 240 | 60 |
| NCF 2234 V | 170 | 310 | 86 |
| NCF 2934 CV | 170 | 230 | 36 |
| NCF 3034 CV | 170 | 260 | 67 |
| NCF 2936 CV | 180 | 250 | 42 |
| NCF 3036 CV | 180 | 280 | 74 |
| NCF 2938 CV | 190 | 260 | 42 |
| NCF 3038 CV | 190 | 290 | 75 |
| NCF 2940 CV | 200 | 280 | 48 |
| NCF 3040 CV | 200 | 310 | 82 |
| NJG 2340 VH | 200 | 420 | 138 |
| NCF 2944 CV | 220 | 300 | 48 |
| NCF 3044 CV | 220 | 340 | 90 |
| NCF 2948 CV | 240 | 320 | 48 |
| NCF 3048 CV | 240 | 360 | 92 |
| NCF 1852V | 260 | 320 | 28 |
| NCF 2952 CV | 260 | 360 | 60 |
| NCF 3052 CV | 260 | 400 | 104 |
| NCF 1856 V | 280 | 350 | 33 |
