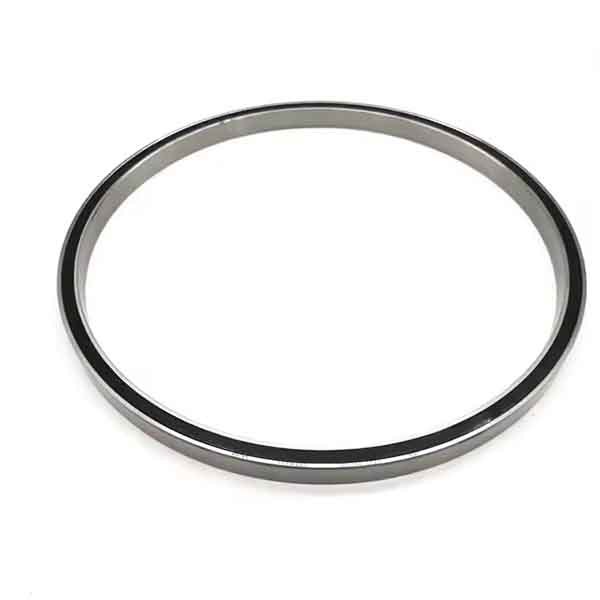

Thin section bearings5
Four-point contact ball bearings can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are available with metric or inch main dimensions…
Product Description
Four-point contact ball bearings can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The bearings are available with metric or inch main dimensions. Depending on the design and series the bearings can be provided with chemical and corrosion resistance.
Accommodate radial, axial and moment loads simultaneously
Require considerably less axial space than two angular contact ball bearings
Thin cross section
Lightweight
Low friction
High stiffness
High running accuracy
| Bearing NO. | d (mm) | D (mm) | H (mm) | B (mm) |
| NA040XP0 | 101.595 | 114.308 | 6.35 | 6.35 |
| NA042CP0 | 107.945 | 120.658 | 6.35 | 6.35 |
| NA045AR0 | 114.295 | 127.008 | 6.35 | 6.35 |
| NA045XPO | 114.295 | 127.008 | 6.35 | 6.35 |
| NA047CP0 | 120.645 | 133.358 | 0.35 | 6.35 |
| NA047XP0 | 120.645 | 133.358 | 6.35 | 6.35 |
| NA050XP0 | 126.995 | 139.708 | 6.35 | 6.35 |
| NA055XP0 | 139.695 | 152.408 | 6.35 | 6.35 |
| NA060CPO | 152.395 | 165.108 | 6.35 | 6.35 |
| NA060XP0 | 152.395 | 165.108 | 6.35 | 6.35 |
| NA065XP0 | 165.095 | 177.808 | 6.35 | 6.35 |
| NA075XP0 | 190.495 | 203.208 | 6.35 | 6.35 |
| NA090XP0 | 228.595 | 241308 | 6.35 | 6.35 |
| NA100XP0 | 253.995 | 266.708 | 6.35 | 6.35 |
| NAA10AG0 | 25.4 | 34.93 | 4.763 | 4.763 |
| NAA10XL0 | 25.4 | 34.93 | 4.763 | 4.763 |
| NAA15AG0 | 38.1 | 47.b3 | 4.763 | 4.763 |
| NAA15CLO | 38.1 | 47.63 | 4.763 | 4.763 |
| NAA15XLO | 38.1 | 4763 | 4.763 | 4.763 |
| NAA17AG0 | 44.45 | 53.98 | 4.763 | 4.763 |
| NAA17XLO | 44.45 | 53.98 | 4.763 | 4.763 |
| NB020AR0 | 50.8 | 6b.68 | 7.938 | 7.938 |
| NB020CP0 | 50.8 | 66.68 | 7.938 | 7.938 |
| NB020XP0 | 50.8 | 66.68 | 7.938 | 7.938 |
| NB025AR0 | 63.5 | 79.38 | 7938 | 7.938 |
| NB025XP0 | 63.5 | 79.38 | 7.938 | 7.938 |
| NB035AR0 | 88.9 | 104.78 | 7.938 | 7938 |
| NB035CPO | 88.9 | 104.78 | 7.938 | 7938 |
| NB040XP0 | 101.595 | 117483 | 7.938 | 7.938 |
| NB042XP0 | 107.945 | 123.833 | 7.938 | 7938 |
| NB045XP0 | 114.295 | 130183 | 7.938 | 7.938 |
| NB050ARO | 126.995 | 142.883 | 7.938 | 7.938 |
| NB050XP0 | 126995 | 142.883 | 7.938 | 7.938 |
| NB055AR0 | 139.695 | 155.583 | 7.938 | 7.938 |
| NB055XP0 | 139.695 | 155.583 | 7938 | 7.938 |
| NB060CPO | 152.395 | 168.283 | 7.938 | 7.938 |
| NB070XP0 | 177.795 | 193.68x | 7938 | 7938 |
| NB080CP0 | 203.195 | 219.083 | 7938 | 7.938 |
| NB090XP0 | 228.595 | 244.483 | 7938 | 7.938 |
| NB140XP0 | 355.595 | 371.483 | 7938 | 7.938 |
| NB160XP0 | 406.395 | 422.283 | 7.938 | 7.938 |
| NC040XP0 | 101.595 | 120.658 | 9.525 | 9.525 |
| NC042AR0 | 107945 | 127.008 | 9.525 | 9.525 |
| NC045XP0 | 114.295 | 133.358 | 9.525 | 9.525 |
| NC050AR0 | 127 | 146.058 | 9.525 | 9.525 |
| NC050XP0 | 126.995 | 146.058 | 9.525 | 9.525 |
| NC060CP0 | 152.395 | 171.458 | 9.525 | 9.525 |
| NC060XP0 | 152.395 | 171458 | 9.525 | 9.525 |
| NC065XP0 | 165.095 | 184158 | 9.525 | 9.525 |
| NC070AR0 | 177.795 | 196.858 | 9.525 | 9.525 |
| NC070XP0 | 177.795 | 196.858 | 9.525 | 9.525 |
| NC080CPO | 203.195 | 222.258 | 9.525 | 9.525 |
| NC0BOXP0 | 203.195 | 222.258 | 9.525 | 9.525 |
| NC090ARO | 228.595 | 247658 | 9.525 | 9.525 |
| NC090XP0 | 228.595 | 247658 | 9.525 | 9.525 |
| NC110XP0 | 279.395 | 298.458 | 9.525 | 9.525 |
| NC120AR0 | 304.795 | 323.858 | 9.525 | 9.525 |
| NC120XP0 | 304.795 | 323.858 | 9.525 | 9.525 |
| NC140XP0 | 355.595 | 374.658 | 9.525 | 9.525 |
| ND040AR0 | 101.595 | 127.008 | 12.7 | 12.7 |
| ND040XP0 | 101595 | 127.008 | 12.7 | 12.7 |
| ND042XP0 | 107.945 | 133.358 | 12.7 | 12.7 |
| ND045AR0 | 114.295 | 139.708 | 12.7 | 12.7 |
| ND045XP0 | 114.295 | 139.708 | 12.7 | 12.7 |
| ND047CP0 | 120.645 | 146.058 | 12.7 | 12.7 |
| ND050AR0 | 126.995 | 152.408 | 12.7 | 12.7 |
| ND055AR0 | 139.695 | 165.108 | 12.7 | 12.7 |
| ND055CP0 | 139.695 | 165.108 | 12.7 | 12.7 |
| ND055XP0 | 139.695 | 165.108 | 12.7 | 12.7 |
| ND060CP0 | 152.395 | 177.808 | 12.7 | 12.7 |
| ND065AR0 | 165.095 | 190.508 | 12.7 | 12.7 |
| ND065XPO | 165.095 | 190.508 | 12.7 | 12.7 |
| ND070AR0 | 177.795 | 203.208 | 12.7 | 12.7 |
| ND075AR0 | 190.495 | 215.908 | 12.7 | 12.7 |
| ND08DAR0 | 203.195 | 228.608 | 12.7 | 12.7 |
| ND080XP0 | 203.195 | 228.608 | 12.7 | 12.7 |
| ND090AR0 | 228.595 | 254.008 | 12.7 | 12.7 |
| ND090CP0 | 228.595 | 254.008 | 12.7 | 12.7 |
| ND090XP0 | 228.595 | 254.008 | 12.7 | 12.7 |
| ND100XP0 | 253.995 | 279.408 | 12.7 | 12.7 |
| ND110XP0 | 279.395 | 304.808 | 12.7 | 12.7 |
| ND120XP0 | 304.795 | 330.208 | 12.7 | 12.7 |
| ND140AR0 | 355.595 | 381008 | 12.7 | 12.7 |
| ND160CP0 | 406.395 | 431.808 | 12.7 | 12.7 |
| ND160XP0 | 406.395 | 431808 | 12.7 | 12.7 |
| ND180XP0 | 457.195 | 482.608 | 12.7 | 12.7 |
| NF040CP0 | 101.595 | 139.708 | 19.05 | 19.05 |
| NF080CP0 | 203.195 | 241308 | 19.05 | 19.05 |
| NF080XP0 | 203.195 | 241308 | 19.05 | 19.05 |
| NF090XP0 | 228.595 | 266.708 | 19.05 | 19.05 |
| NF100XP0 | 253.995 | 292108 | 19.05 | 19.05 |
| NF120XP0 | 304.795 | 342.908 | 19.05 | 19.05 |
| NF160XP0 | 406.395 | 444.508 | 19.05 | 19.05 |
| NG060AR0 | 152.395 | 203.208 | 25.4 | 25.4 |
| NG065AR0 | 165.095 | 215.908 | 25.4 | 25.4 |
| NG070XP0 | 177.795 | 228.608 | 25.4 | 25.4 |
| NG080AR0 | 203.195 | 254.008 | 254 | 25.4 |
| NG080XP0 | 203.195 | 254.008 | 25.4 | 25.4 |
| NG090XP0 | 228.595 | 279.408 | 25.4 | 25.4 |
| NG100XP0 | 253.995 | 304.808 | 25.4 | 25.4 |
| NG110AR0 | 279.395 | 330.208 | 25.4 | 25.4 |
| NG120XP0 | 304.795 | 355.608 | 25.4 | 25.4 |
| NG140XP0 | 355.595 | 406.408 | 25.4 | 25.4 |
| NG160XP0 | 406.395 | 457.208 | 25.4 | 25.4 |
| NG180XP0 | 457195 | 508.008 | 25.4 | 25.4 |
| NG200AR0 | 507.995 | 558.808 | 25.4 | 25.4 |
| NG220CPD | 558.795 | 609.608 | 25.4 | 25.4 |
| NG220XP0 | 558.795 | 609.608 | 25.4 | 25.4 |
| NG250ARO | 634.995 | 685.808 | 25.4 | 25.4 |
| NG250XP0 | 634.995 | 685.808 | 25.4 | 25.4 |
| NG300XP0 | 761.995 | 812.808 | 25.4 | 25.4 |
| NG400XP0 | 1015.995 | 1066.808 | 25.4 | 25.4 |
| SAO20AR0 | 50.8 | 63.5 | 6.35 | 6.35 |
| SA020CP0 | 50.8 | 63.5 | 6.35 | 6.35 |
| SA020XP0 | 50.8 | 63.5 | 6.35 | 6.35 |
| SA025AR0 | 63.5 | 76.2 | 6.35 | 6.35 |
| SAD25CPO | 63.5 | 76.2 | 6.35 | 6.35 |
| SAD25XPO | 63.5 | 76.2 | 6.35 | 6.35 |
| SA030AR0 | 76.2 | 88.9 | 6.35 | 6.35 |
| SA030CP0 | 76.2 | 88.9 | 6.35 | 6.35 |
