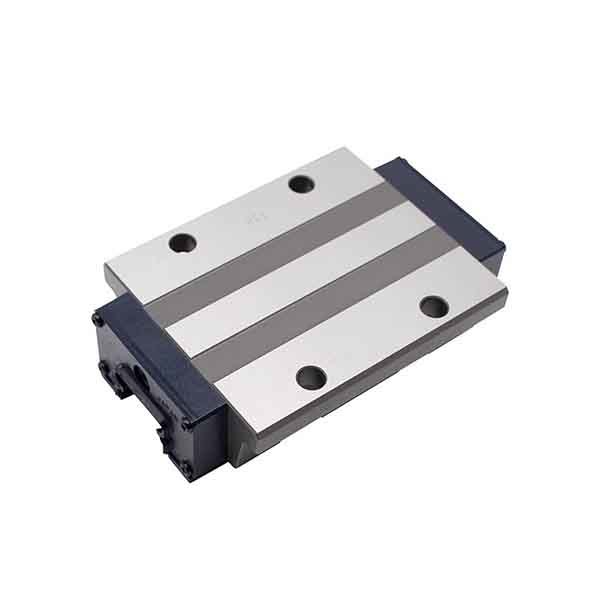

HK offers a wide range of LM rolling guides to meet all conditions of use. From the usual horizontal use to vertical use, reverse use, inclined use, wall use and single bearing torque and other ways of use, the space occupied is controlled in a minimum, it is easy to achieve a long life, high rigidity of the linear guidance…
Product Description
HK offers a wide range of LM rolling guides to meet all conditions of use. From the usual horizontal use to vertical use, reverse use, inclined use, wall use and single bearing torque and other ways of use, the space occupied is controlled in a minimum, it is easy to achieve a long life, high rigidity of the linear guidance.

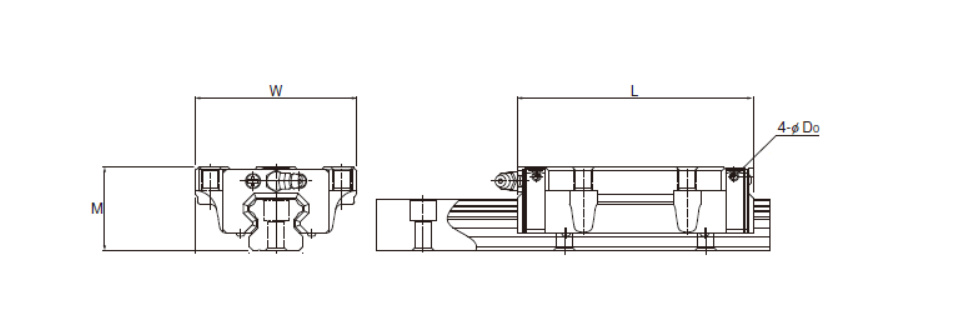

| Bearing NO. | M(mm） | W（mm） | L（mm） | C | CO | Bearing NO. | M | W | L | C | CO | |
| HSR 15C | 24 | 47 | 56.6 | 10.9 | 15.7 | HSR 20CA | 30 | 63 | 74 | 19.8 | 27.4 | |
| HSR 20C | 30 | 63 | 74 | 19.8 | 27.4 | HSR 25CA | 36 | 70 | 83.1 | 27.6 | 36.4 | |
| HSR 25C | 36 | 70 | 83.1 | 27.6 | 36.4 | HSR 30CA | 42 | 90 | 98 | 40.5 | 53.7 | |
| HSR 30C | 42 | 90 | 98 | 40.5 | 53.7 | HSR 35CA | 48 | 100 | 109.4 | 53.9 | 70.2 | |
| HSR 35C | 48 | 100 | 109.4 | 53.9 | 70.2 | HSR 45CA | 60 | 120 | 139 | 82.2 | 101 | |
| HSR 45C | 60 | 120 | 139 | 82.2 | 101 | HSR 55CA | 70 | 140 | 163 | 121 | 146 | |
| HSR 55C | 70 | 140 | 163 | 121 | 146 | HSR 65XCA | 90 | 170 | 190.5 | 195 | 228 | |
| HSR 65XC | 90 | 170 | 190.5 | 195 | 228 | HSR 85CA | 110 | 215 | 245.6 | 304 | 355 | |
| HSR 8RM | 11 | 16 | 24 | 1.08 | 2.16 | HSR 20CB | 30 | 63 | 74 | 19.8 | 27.4 | |
| HSR 10RM | 13 | 20 | 31 | 1.96 | 3.82 | HSR 25CB | 36 | 70 | 83.1 | 27.6 | 36.4 | |
| HSR 12RM | 20 | 27 | 45 | 4.7 | 8.53 | HSR 30CB | 42 | 90 | 98 | 40.5 | 53.7 | |
| HSR 15R | 28 | 34 | 56.6 | 10.9 | 15.7 | HSR 35CB | 48 | 100 | 109.4 | 53.9 | 70.2 | |
| HSR 20R | 30 | 44 | 74 | 19.8 | 27.4 | HSR 45CB | 60 | 120 | 139 | 82.2 | 101 | |
| HSR 25R | 40 | 48 | 83.1 | 27.6 | 36.4 | HSR 55CB | 70 | 140 | 163 | 121 | 146 | |
| HSR 30R | 45 | 60 | 98 | 40.5 | 53.7 | HSR 65XCB | 90 | 170 | 190.5 | 195 | 228 | |
| HSR 35R | 55 | 70 | 109.4 | 53.9 | 70.2 | HSR 85CB | 110 | 215 | 245.6 | 304 | 355 | |
| HSR 45R | 70 | 86 | 139 | 82.2 | 101 | HSR 20HA | 30 | 63 | 90 | 23.9 | 35.8 | |
| HSR 55R | 80 | 100 | 163 | 121 | 146 | HSR 25HA | 36 | 70 | 102.2 | 35.2 | 51.6 | |
| HSR 65XR | 90 | 126 | 190.5 | 195 | 228 | HSR 30HA | 42 | 90 | 120.6 | 48.9 | 70.2 | |
| HSR 85R | 110 | 156 | 245.6 | 304 | 355 | HSR 35HA | 48 | 100 | 134.8 | 65 | 91.7 | |
| HSR 15LR | 28 | 34 | 74.6 | 14.2 | 22.9 | HSR 45HA | 60 | 120 | 170.8 | 100 | 135 | |
| HSR 20LR | 30 | 44 | 90 | 23.9 | 35.8 | HSR 55HA | 70 | 140 | 201.1 | 148 | 194 | |
| HSR 25LR | 40 | 48 | 102.2 | 35.2 | 51.6 | HSR 65XHA | 90 | 170 | 250 | 249 | 323 | |
| HSR 30LR | 45 | 60 | 120.6 | 48.9 | 70.2 | HSR 85HA | 110 | 215 | 303 | 367 | 464 | |
| HSR 35LR | 55 | 70 | 134.8 | 65 | 91.7 | HSR 100HA | 120 | 250 | 334 | 441 | 540 | |
| HSR 45LR | 70 | 86 | 170.8 | 100 | 135 | HSR 120HA | 130 | 290 | 365 | 540 | 653 | |
| HSR 55LR | 80 | 100 | 201.1 | 148 | 194 | HSR 150HA | 145 | 350 | 396 | 518 | 728 | |
| HSR 65XLR | 90 | 126 | 250 | 249 | 323 | HSR 20HB | 30 | 63 | 90 | 23.9 | 35.8 | |
| HSR 85LR | 110 | 156 | 303 | 367 | 464 | HSR 25HB | 36 | 70 | 102.2 | 35.2 | 51.6 | |
| HSR 85A | 110 | 215 | 245.6 | 304 | 355 | HSR 30HB | 42 | 90 | 120.6 | 48.9 | 70.2 | |
| HSR 85B | 110 | 215 | 245.6 | 304 | 355 | HSR 35HB | 48 | 100 | 134.8 | 65 | 91.7 | |
| HSR 85LB | 110 | 215 | 303 | 367 | 464 | HSR 45HB | 60 | 120 | 170.8 | 100 | 135 | |
| HSR 15YR | 28 | 33.5 | 56.6 | 10.9 | 15.7 | HSR 55HB | 70 | 140 | 201.1 | 148 | 194 | |
| HSR 20YR | 30 | 43.5 | 74 | 19.8 | 27.4 | HSR 65XHB | 90 | 170 | 250 | 249 | 323 | |
| HSR 25YR | 40 | 47.5 | 83.1 | 27.6 | 36.4 | HSR 85HB | 110 | 215 | 303 | 367 | 464 | |
| HSR 30YR | 45 | 59.5 | 98 | 40.5 | 53.7 | HSR 100HB | 120 | 250 | 334 | 441 | 540 | |
| HSR 35YR | 55 | 69.5 | 109.4 | 53.9 | 70.2 | HSR 120HB | 130 | 290 | 365 | 540 | 653 | |
| HSR 45YR | 70 | 85.5 | 139 | 82.2 | 101 | HSR 150HB | 145 | 350 | 396 | 518 | 728 | |
| HSR 55YR | 80 | 99.5 | 163 | 121 | 146 | HSR 100HR | 120 | 200 | 334 | 441 | 540 | |
| HSR 65XYR | 90 | 124.5 | 190.5 | 195 | 228 | HSR 120HR | 130 | 220 | 365 | 540 | 653 | |
| Series | Bearing NO. | |||||||||||
| HSR series | HSR8RM HSR10RM HSR12RM HSR15R HSR15RM HSR20R HSR20RM HSR20LR HSR20LRM HSR25R HSR25RM HSR25LR HSR25LRM HSR30R HSR30RM HSR30LR HSR30LRM HSR35R HSR35RM HSR35LR HSR35LRM HSR45R HSR45LR HSR55R HSR55LR HSR65R HSR65LR 、HSR85R HSR85LR HSR15A HSR15AM HSR20A HSR20AM HSR20LA HSR20LAM HSR25A HSR25AM HSR25LA HSR25LAM HSR30A HSR30AM HSR30LA HSR30LAM HSR35A HSR35AM HSR35LA HSR35LAM HSR45A HSR45LA HSR55A HSR55LA HSR65A HSR65LA HSR85A HSR85LA HSR15B HSR15BM HSR20B HSR20BM HSR20LB HSR20LBM HSR25B HSR25BM HSR25LB HSR25LBM HSR30B HSR30BM HSR30LB HSR30LBM HSR35B HSR35BM HSR35LB HSR35LBM HSR45B HSR45LB HSR55B HSR55LB HSR65B HSR65LBB HSR85B HSR85LB HSR100HA HSR100HB HSR100HR HSR120HA HSR120HB HSR120HR HSR150HA HSR150HB HSR150HR HSR15YR HSR15YRM HSR20YR HSR20YRM HSR25YR HSR25YRM HSR30YR HSR30YRM HSR35YR HSR35YRM HSR45YR HSR55YR HSR65YR | |||||||||||
| SR series | SR15W SR15WM SR15V SR15VM SR20W SR20WM SR20V SR20VM SR25WY SR25WMY SR25VY SR25VMY SR30W SR30WM SR30V SR30VM SR35W SR35WM SR35V SR35VM SR45W SR55W SR70T SR85T SR100T SR120T SR150T SR15TB SR15TBM SR15SB SR15SBM SR20TB SR20TBM SR20SB SR20SBM SR25TBY SR25TBMY SR25SBY SR25SBMY SR30TB SR30TBM SR30SB SR30SBM SR35TB SR35TBM SR35SB SR35SBM SR45TB SR55TB | |||||||||||
| HRW series | HRW17CA HRW17CAM HRW21CA HRW21CAM HRW27CA HRW27CAM HRW35CA HRW35CAM HRW50CA HRW60CA HRW12LRM HRW14LRM HRW17CR HRW17CRM HRW21CR HRW21CRM HRW27CR HRW27CRM HRW35CR HRW35CRM HRW50CR | |||||||||||
| GSR series | GSR15T GSR15V GSR20T GSR20V GSR25T GSR25V GSR30T GSR35T GSR25T-R GSR25V-R GSR30T-R GSR35T-R | |||||||||||
| RSR series | RSR3M RSR3N RSR5M RSR5N RSR7M RSR7N RSR9KM RSR9N RSR12VM RSR12N RSR1V5M RSR15N RSR20VM RSR20N RSR3WM RSR3WN RSR5WM RSR5WN RSR7WM RSR7WN RSR9WV RSR9WVM RSR9WN RSR12WV RSR12WVM RSR12WN RSR915WV RSR15WVM RSR15WN RSR7ZM RSR9ZM RSR12ZM RSR15ZM RSR7WZM RSR9WZM RSR12WZM RSR15WZMRSH7M RSH9KM RSH12VMRSH7ZM RSH9ZM RSH12ZM RSH15ZM | |||||||||||
| LBS series | LBS15 LBS20 LBS25 LBS30 LBS40 LBS50 LBS70 LBS85 LBS100 LBST20 LBST25 LBST30 LBST40 LBST50 LBST60 LBST70 LBST85 LBST100 LBST120 LBST150 LBF15 LBF20 LBF25 LBF30 LBF40 LBF50 LBF60 LBF70 LBF85 LBF100 LBH15 LBH20 LBH25 LBH30 LBH40 LBH50 | |||||||||||
| NR series | NR25XR NR25XLR NR30R NR30LR NR35R NR35LR NR45R NR45LR NR55R NR55LR NR65R NR65LR NR75R NR75LR NR85R NR85LR NR100R NR100LR NRS25XR NRS25XLR NRS30R NRS30LR NRS35R NRS35LR NRS45R NRS45LR NRS55R NRS55LR NRS65R NRS65LR NRS75R NRS75LR NRS85R NRS85LR NRS100R NRS100LR NR25XA NR25XLA NR30A NR30LA NR35A NR35LA NR45A NR45LA NR55A NR55LA NR65A NR65LA NR75A NR75LA NR85A NR85LA NR100A NR100LA NRS25XA NRS25XLA NRS30A NRS30LA NRS35A NRS35LA NRS45A NRS45LA NRS55A NRS55LA NRS65A NRS65LA NRS75A NRS75LA NRS85A NRS85LA NRS100A NRS100LA NR25XB NR25XLB NR30B NR30LB NR35B NR35LB NR45B NR45LB NR55B NR55LB NR65B NR65LB NR75B NR75LB NR85B NR85LB NR100B NR100LB NRS25XB NRS25XLB NRS30B NRS30LB NRS35B NRS35LB NRS45B NRS45LB NRS55B NRS55LB NRS65B NRS65LB NRS75B NRS75LB NRS85B NRS85LB NRS100B NRS100LB | |||||||||||
| JR series | JR25A JR25B JR25R JR35A JR35B JR35R JR45A JR45B JR45R JR55A JR55B JR55R | |||||||||||
| CSR series | CSR15 CSR20S CSR20 CSR25S CSR25 CSR30S CSR30 CSR35 CSR45 | |||||||||||
