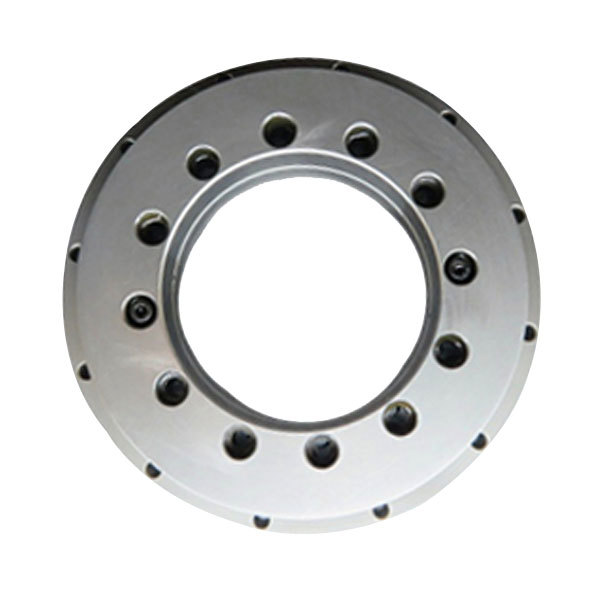

YRTS Rotary Table Bearing

Axial/radial bearings with angular measuring system YRTM and YRTSM correspond in mechanical terms to series YRT and YRTS, but are additionally fitted with an angular measuring system. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means…

Product Description

Axial/radial bearings with angular measuring system YRTM and YRTSM correspond in mechanical terms to series YRT and YRTS, but are additionally fitted with an angular measuring system. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means.

Further information on axial/radial bearings with absolute value angular measuring systems YRTMA and YRTSMA can be found in special publication SSD 30.

Kenwoth Bearing supply wide range of crossed roller bearings:

YRT Rotary Table Bearing,

RA series Crossed Roller Bearing,

RB series Crossed Roller Bearing,

RE series Crossed Roller Bearing,

RU series Crossed Roller Bearing,

SX series Crossed Roller Bearing,

CRBH series Crossed Roller Bearing,

XSU series Crossed Roller Bearing,

XR/JR series Crossed Roller Bearing,

CRBS slim thin section crossed roller bearing,

CRBF full compeletment crossed roller bearings.

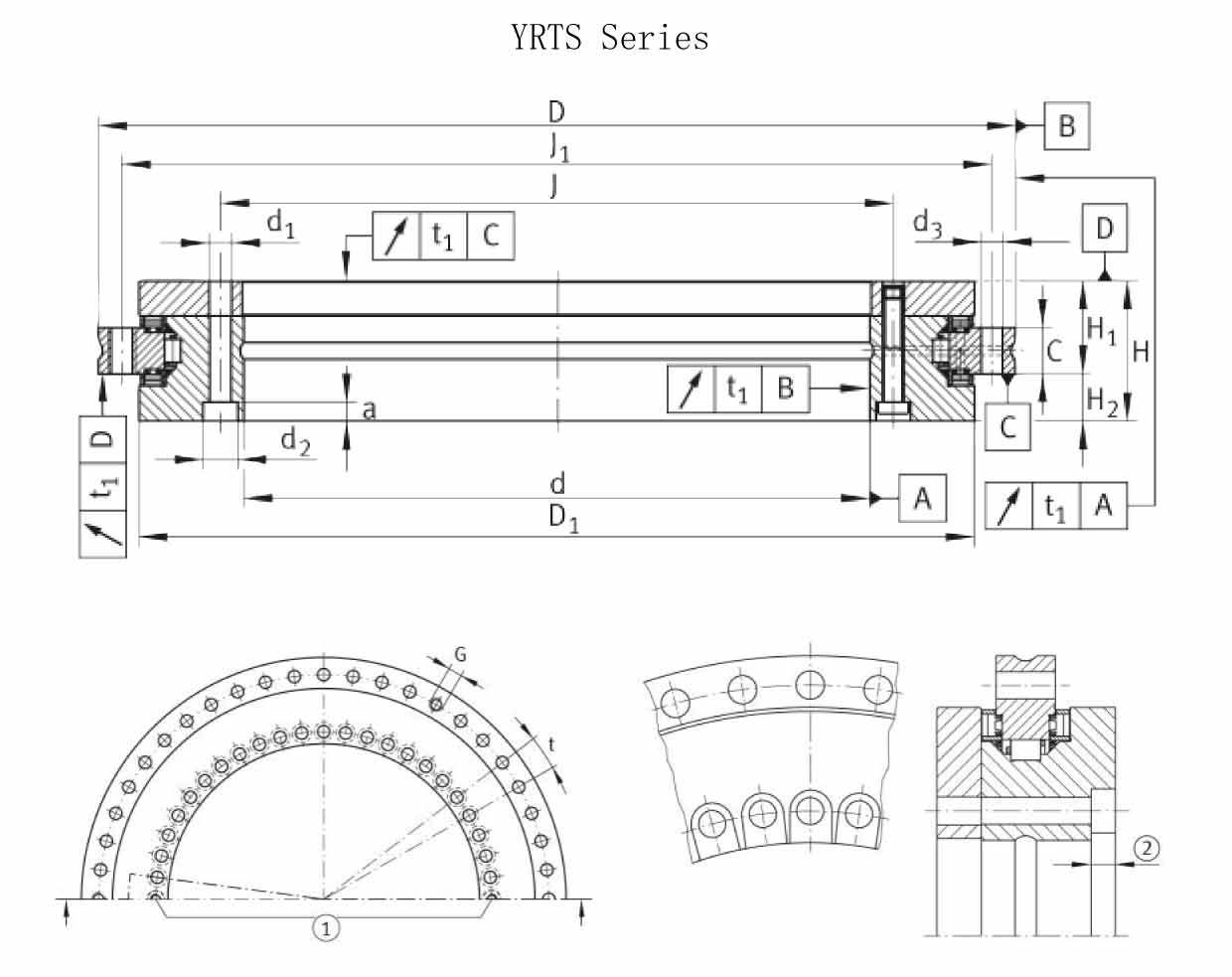

YRTS Rotary Table Bearing

xq xq



Bearing Number d mm D mm H mm H1 mm D1 mm
YRTS200 200 300 45 30 15
YRTS260 260 385 55 36.5 18
YRTS325 325 450 60 40 20
YRTS395 395 525 65 42.5 20
YRTS460 460 600 70 46 22
